9
BRAY Series 52 Valve Status Monitor
Operation and Maintenance Manual

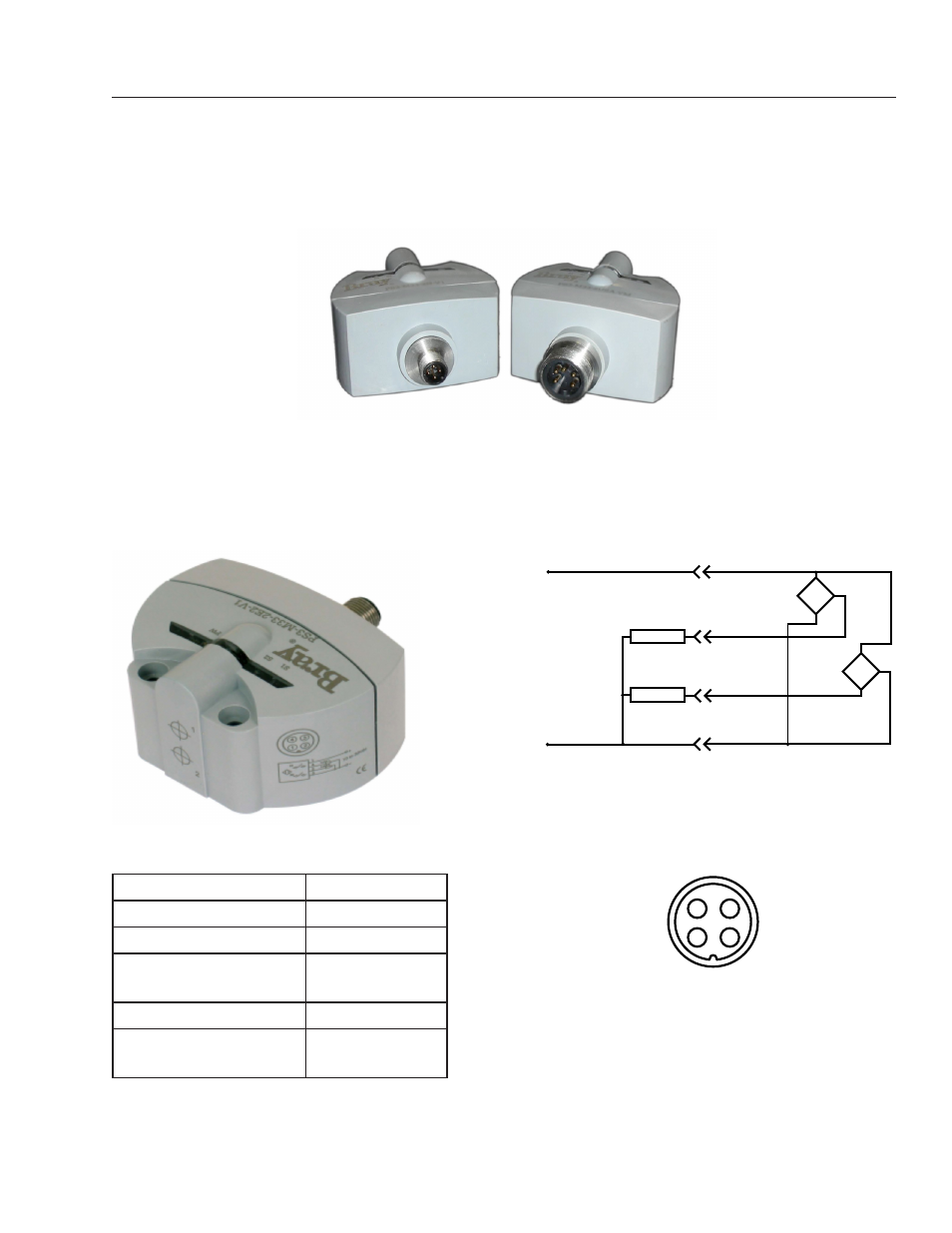

The Standard S52 (non fieldbus capable versions) are offered with two types of connections; the DC ver-
sions are offered with a 4-pin M12 connection, and the AC versions are offered with a 5-pin 7/8” con-
nection. Both types are pictured below:
4-pin M12 Connector
5-pin 7/8” Connector
Figure 5: Standard S52 Connectors
The following pages cover each of the configurations of the S52 in more detail.
DC Version 10-30VDC PNP (Sourcing)
Specifications:
Operating Voltage
10 to 30VDC
Target Type
Metallic
Electrical Configuration
DC - PNP
Maximum Switching
Current
200mA
Output Voltage Drop
< 2VDC
Residual Current (Off
State Current)
20μA
+
-
PIN 1
PIN 2
PIN 4
PIN 3
LOAD 2
LOAD 1
PNP
PNP
S2
S1
10 to 30 Vdc
WIRING DIAGRAM
M12 X1
CONNECTOR
PINOUT
DIAGRAM
KEY
4
3
1
2
