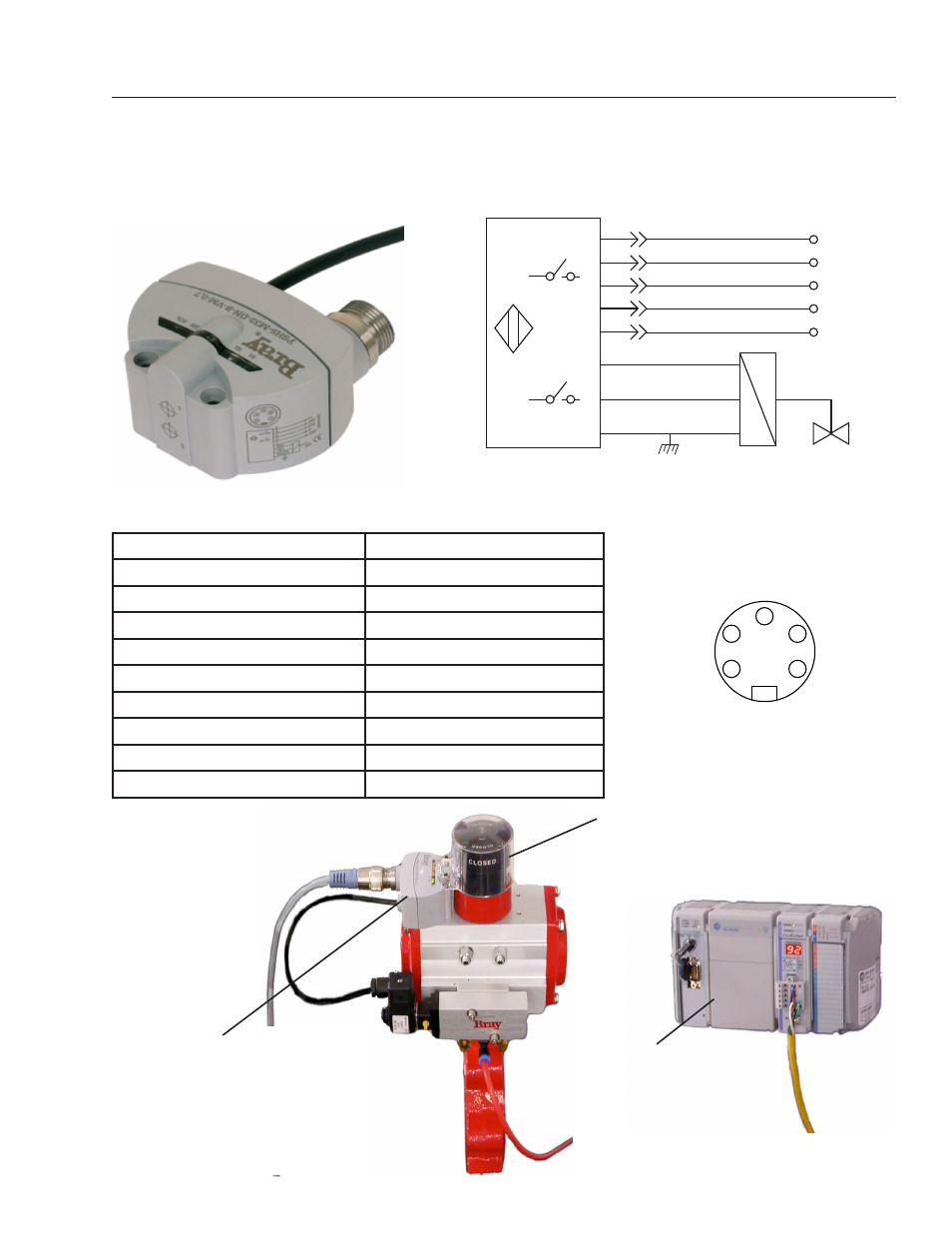

BRAY Series 52 Valve Status Monitor
Operation and Maintenance Manual
DeviceNet Version
Specifications:
Operating Voltage 24VDC by DN Network
Target Type Magnetic
Electrical Configuration DeviceNet
Maximum Switching Current 100mA
Consumption Current < 20mA
Output Voltage Drop < 2.5VDC
Addressing 0 to 63 software configured
Data Bits Input Bit 0: Sensor 1
Input Bit 1: Sensor 2
Output Bit 0: Solenoid
WIRING DIAGRAM
2
4
5
3
SOL -
SOL +
GND GN/YE
RD
YE
RD
WH
BK
1 BARE
BU
S1
S2
V+
CNH
V-
GND
CNL
KEY
PINOUT DIAGRAM
1
2
5
4
3
DeviceNet S52, Bray P/Ns:
52-1007-12624-536 (kit) includes:
- 52-1007-71114-536 (S52)
- 52-1000-14821-536 (target)
High Visibility Indicator,
Bray P/N: 52-1000-14805-533
PLC with DeviceNet
Scanner
