33

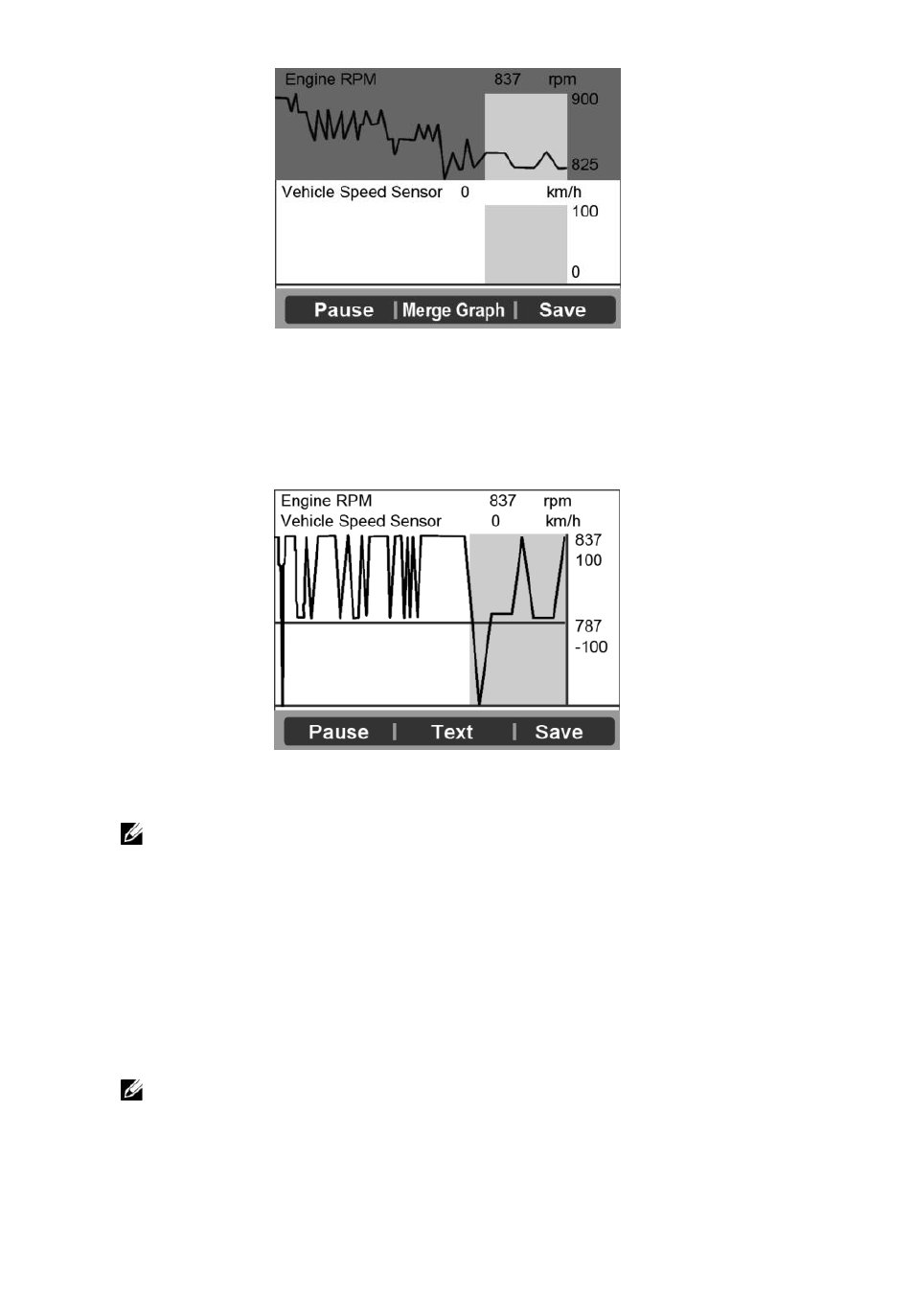

Figure 5.30
5) Press the Function button corresponding to Merge Graph, the
above two graphs will merge together as Figure 5.31.
Figure 5.31
NOTE: Merge Graph can be used to compare two related
parameters in graphic mode. It is especially convenient that you
could select two interacted parameter to merge and see their
relationship.
6) Select Text to return to the view the live data in text form
7) Select Save to record retrieved live data and graphs.
NOTE: The scan tool can only playback text data even though
the data is saved in graphic mode. Since what you are viewing
is “real time” Live Data, the data changes as the vehicle’s
operating conditions change.
