Page 17: About

15
1) From System Setup screen, use the UP/DOWN scroll button
and LEFT/RIGHT scroll button to select LCD Test, and press
the OK button.
2) Look for missing spots in the red, green, blue, black and white
LCD display.
3) When completed, press the ESC button to exit.

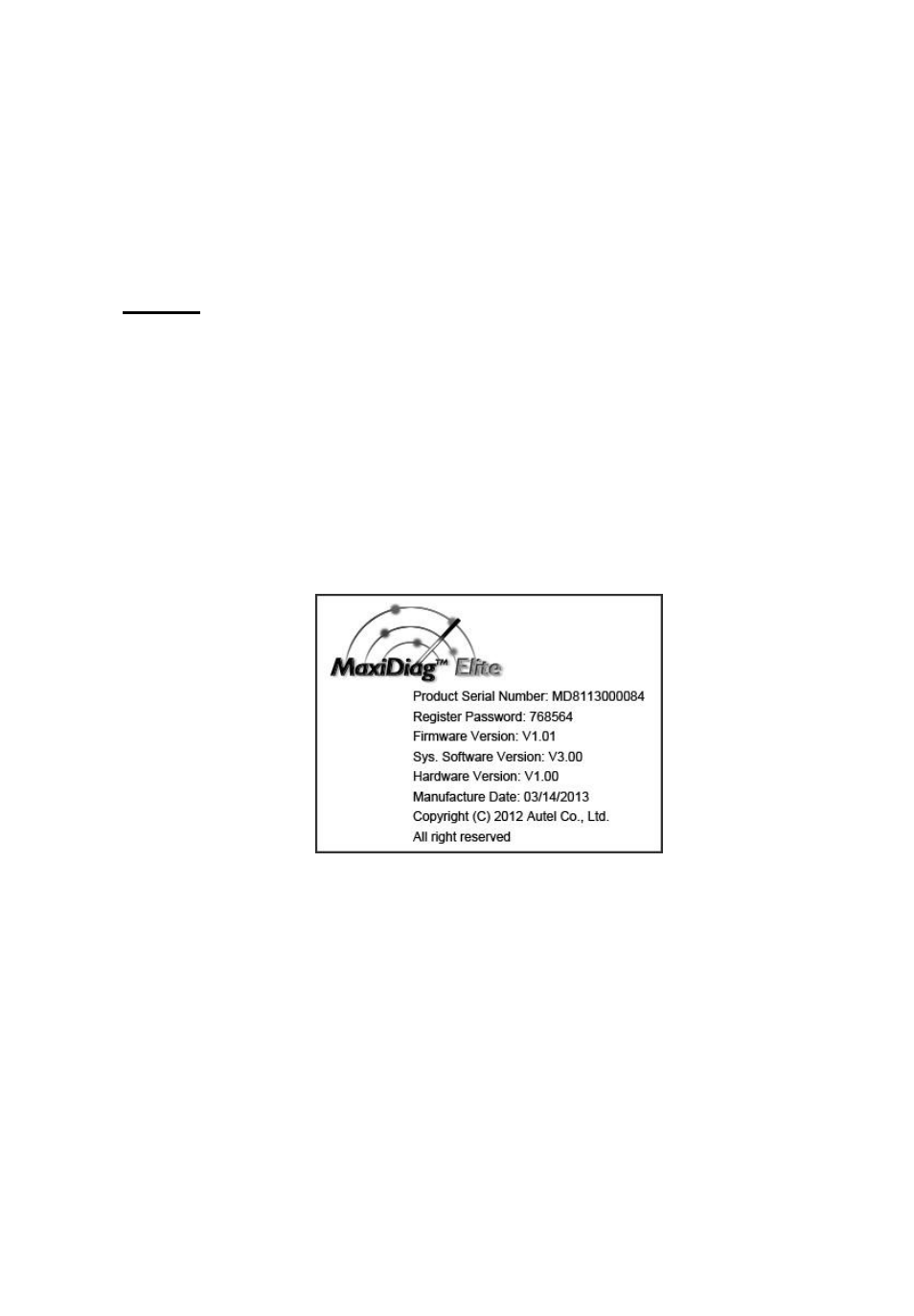

About
The About function allows viewing of some important information
such as serial number and software version number of the scanner.
1) From System Setup screen, use the UP/DOWN scroll button
and LEFT/RIGHT scroll button to select About and press the
OK button; wait for the About screen to appear.
2) View tool information on screen. (Figure 3.6) Press the ESC
button to exit without saving.
Figure 3.6
3.7 Vehicle Coverage
On the basis of all OBD II compliant vehicles, including those
equipped with universal protocol -- Control Area Network (CAN),
MaxiDiag
Elite Series Scanner expands vehicle system coverage and
offers more diagnostic power to the vehicle technicians. Featuring
expanded global vehicle coverage, the scan tool offers technicians a
significant improvement on model years covered by supported
manufactures. In addition to adding new vehicle coverage through
2012/2011, we’ve also worked backwards to include non-OBDII
