labnotEbooK ™
A UniqUe Tool for DocUmenTATion AnD reporT GenerATion

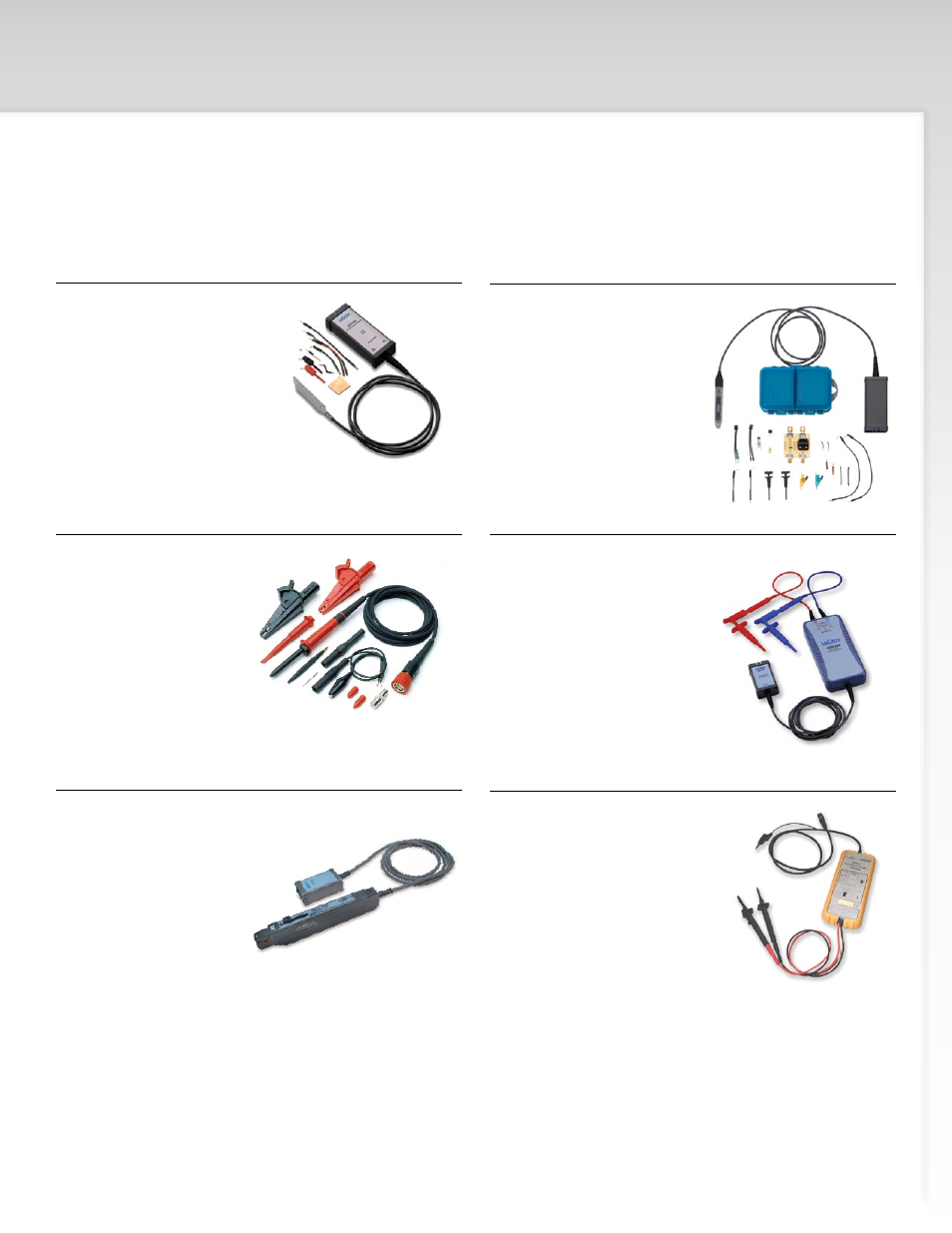

broaD rangE of Probing solutions
Zs series High impedance active Probes
• 1 GHz (ZS1000) and 1.5 GHz
(ZS1500) bandwidths
• High Impedance (0.9 pF, 1 M Ω)
• Extensive standard and
available probe tip and ground
connection accessories
• ±12 Vdc offset (ZS1500)
• LeCroy ProBus system
High-Voltage Passive Probes
• Suitable for safe, accurate
high-voltage measurements
• 1.2 kV to 20 kV
• Works with any 1 M Ω
input oscilloscope
Current Probes
• Range of probes from 30 A
rms
(50 A
peak
)
to 500 A
rms
(700 A
peak
)
• 2 MHz to 100 MHz bandwidths
• Small form factor
accommodates large
conductors with
small jaw size
• LeCroy ProBus system
ZD series Differential Probes
• 200 MHz, 500 MHz, 1 GHz
and 1.5 GHz bandwidths
• Wide range of probing
accessories
• LeCroy ProBus system
High-Voltage
Differential Probes
• 20 MHz and 100 MHz bandwidth
• 1,000 V
rms
common
mode voltage
• 1,400 V
peak
differential
voltage
• EN 61010 CAT III
• 80 dB CMRR at 50/60 Hz
• LeCroy ProBus system
aP031
• Lowest priced differential probe
• 15 MHz bandwidth
• 700 V maximum input voltage
• Works with any 1 M Ω input
oscilloscope
Wavesurfer MXs-b and Mso MXs-b support a broad range of probes for a variety of applications.
