EssEntial tools for ValiDation anD DEbug
WaveSurfer ® MXs-B
• 200 MHz, 400 MHz, 600 MHz
and 1 gHz bandwidths
• up to 10 gs/s sample rate
• 16 Mpts/Ch Memory,
32 Mpts interleaved
• fast Processing of long
Memory and Math
• responsive user interface
• Wavestream™ fast
Viewing Mode
• Wavescan™ – advanced
search and find
• labnotebook Documentation
and report generation
• 10.4” touch screen Display
• lXi Compliant
MSO MXs-B
all the great features of the
Wavesurfer MXs-b plus:
• 18 Digital Channels
• Max. Digital signal speed
of 250 MHz
• analog and Digital Cross
Pattern triggering

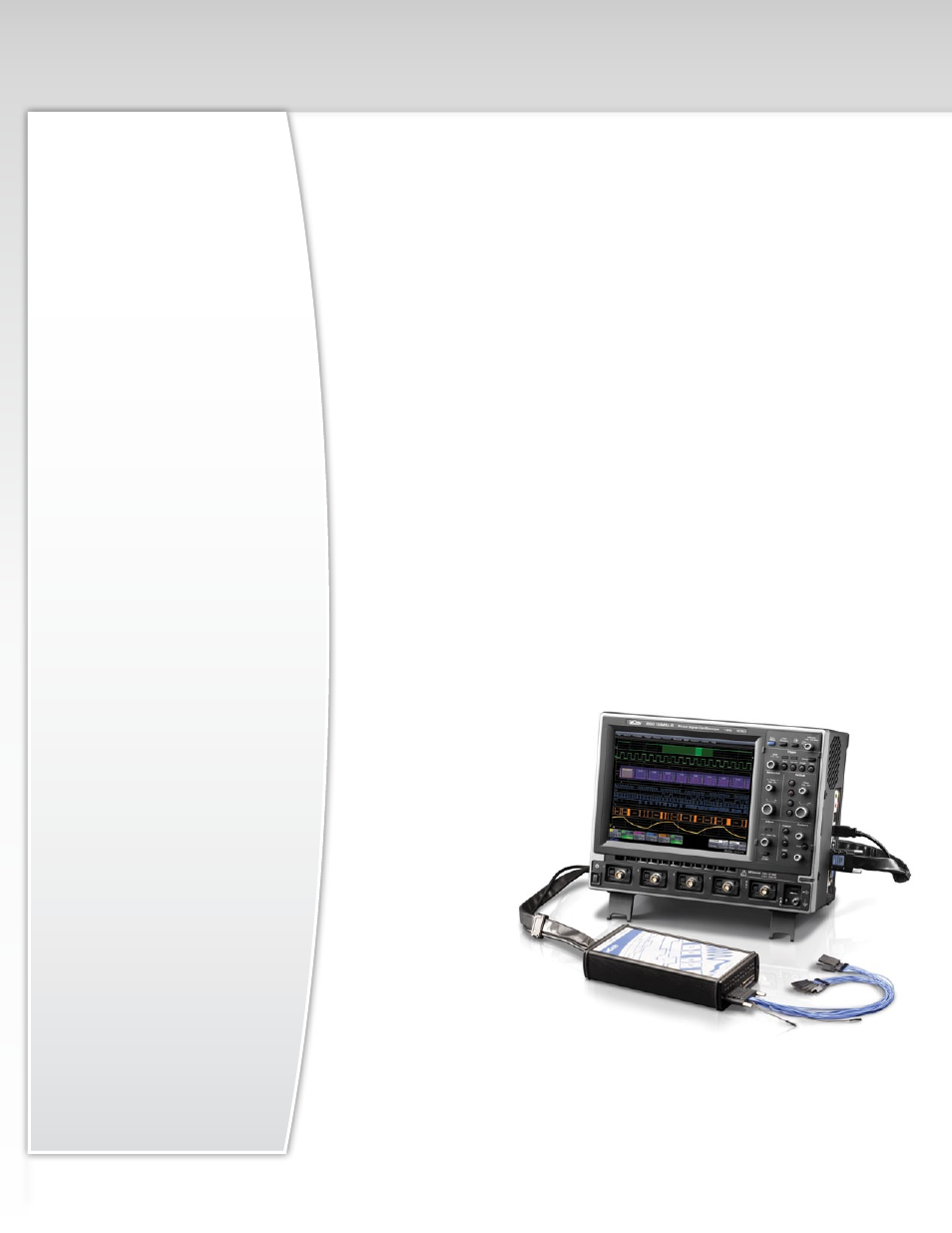

the Wavesurfer ® MXs-b and Mso MXs-b oscilloscopes pack
high performance hardware, powerful waveform processing
and advanced math, measurement and debug tools into a
compact form factor with a large touch screen display and
intuitive user interface.
With up to 10 GS/s sample rate and 32 Mpts of memory WaveSurfer can
capture large amounts of data at very high sample rates. Other oscilloscopes offer
long memory but they bog down trying to process or display it. WaveSurfer handles
large amounts of data quickly providing fast processing of long memory even when
using math and measurement functions. The software responds
immediately to the user inputs even while processing data.
System debug often requires more than analog channels. The MSO MXs-B
delivers 18 digital channels which can capture digital signals of up to 250 MHz.
The MSO MXs-B offer analog
and digital cross-triggering
plus measurement tools to
help debug digital busses.
LeCroy’s WaveScan
™ search
and find tool will scan both
analog and digital channels
for anamolies plus
scan multiple digital
lines for a parallel
bus pattern.
