7
EMbEDDED systEM DEsign anD DEbug iDEntify anD isolatE ProblEMs fastEr
High-performance Mso
The MSO MXs-B models provide
an easy way to capture and display
analog and digital signals side by side.
With the ability to capture 250 MHz
signals at 1 GS/s sample rate on
18 lines simultaneously the MSO
MXs-B delivers performance that
other MSOs cannot. Memory and
sample rate are never shared with
analog channels and no special modes
are required to get full performance.
The MSO MXs-B deliver uncompro-
mised performance in all situations.
serial Data trigger and
Decode
Debugging serial data busses can be
confusing and time consuming. The
serial data trigger and decode options
for WaveSurfer MXs-B and MSO MXs-B
provide time saving tools for serial bus
debug and validation.
The serial data trigger will quickly
isolate events on a bus eliminating
the need to set manual triggers and
hoping to catch the right information.
Trigger conditions can be entered
in binary or hexadecimal formats
and conditional trigger capabilities
even allow triggering on a range of
different events.

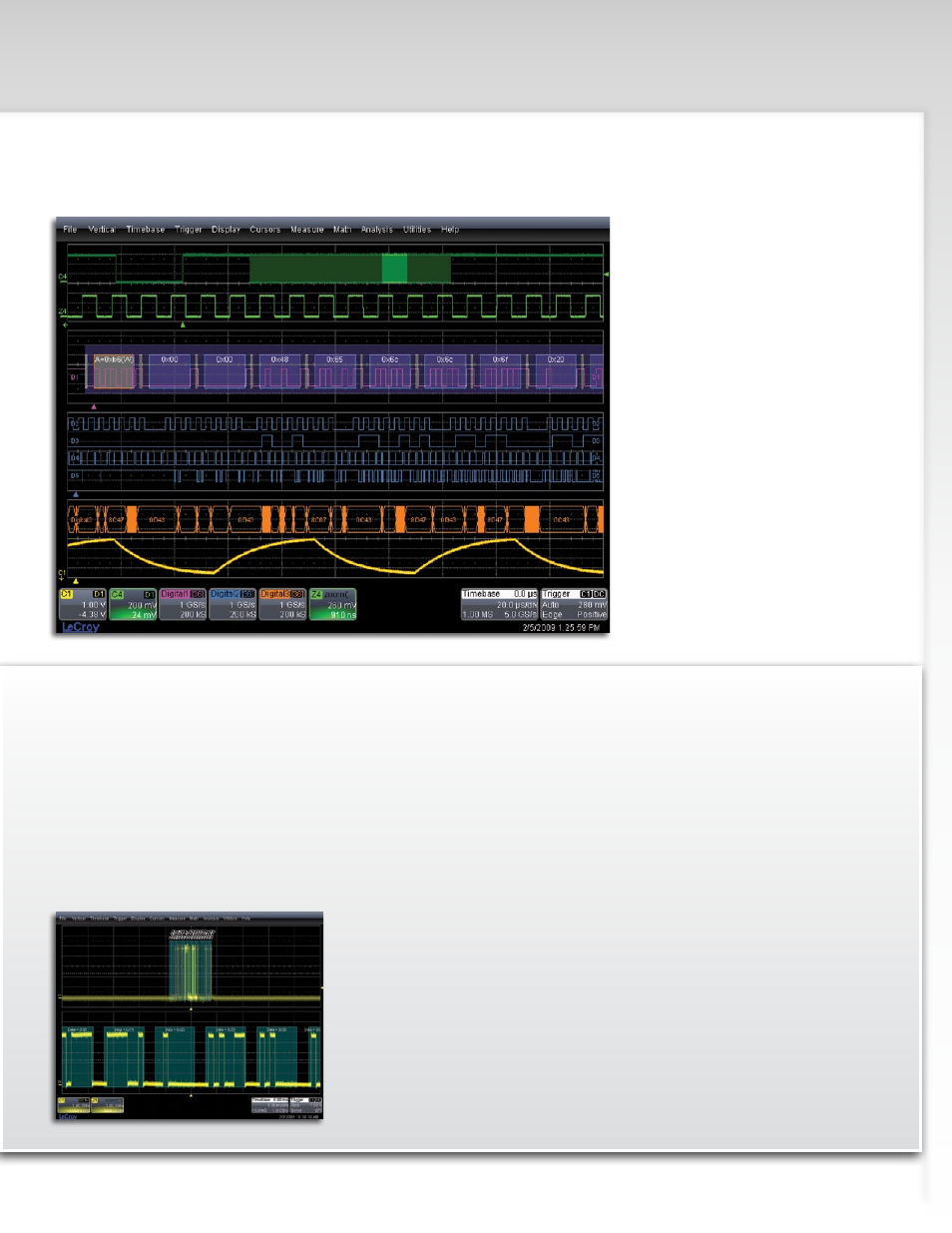

Protocol decoding is shown directly
on the waveform with an intuitive,
color-coded overlay and presented
in binary, hex or ASCII. Decoding
on the WaveSurfer is fast even with
long memory and zooming in to the
waveform shows precise byte by
byte decoding.
To further simplify the debug process
all decoded data can be displayed in
a table below the waveform grid.
Selecting an entry in the table with
the touch screen will display just
that event. Additionally, built-in
search functionality will find specific
decoded values.
supported serial Data
Protocols
•
I 2 C, SPI, UART
•
CAN, LIN, FlexRay™
•
USB 1.0/1.1/2.0, USB 2.0-HSIC
•
Audio (I 2 S, LJ, RJ, TDM)
•
MIL-STD-1553, ARINC 429
•
MIPI D-PHY, DigRF 3G, DigRF v4
