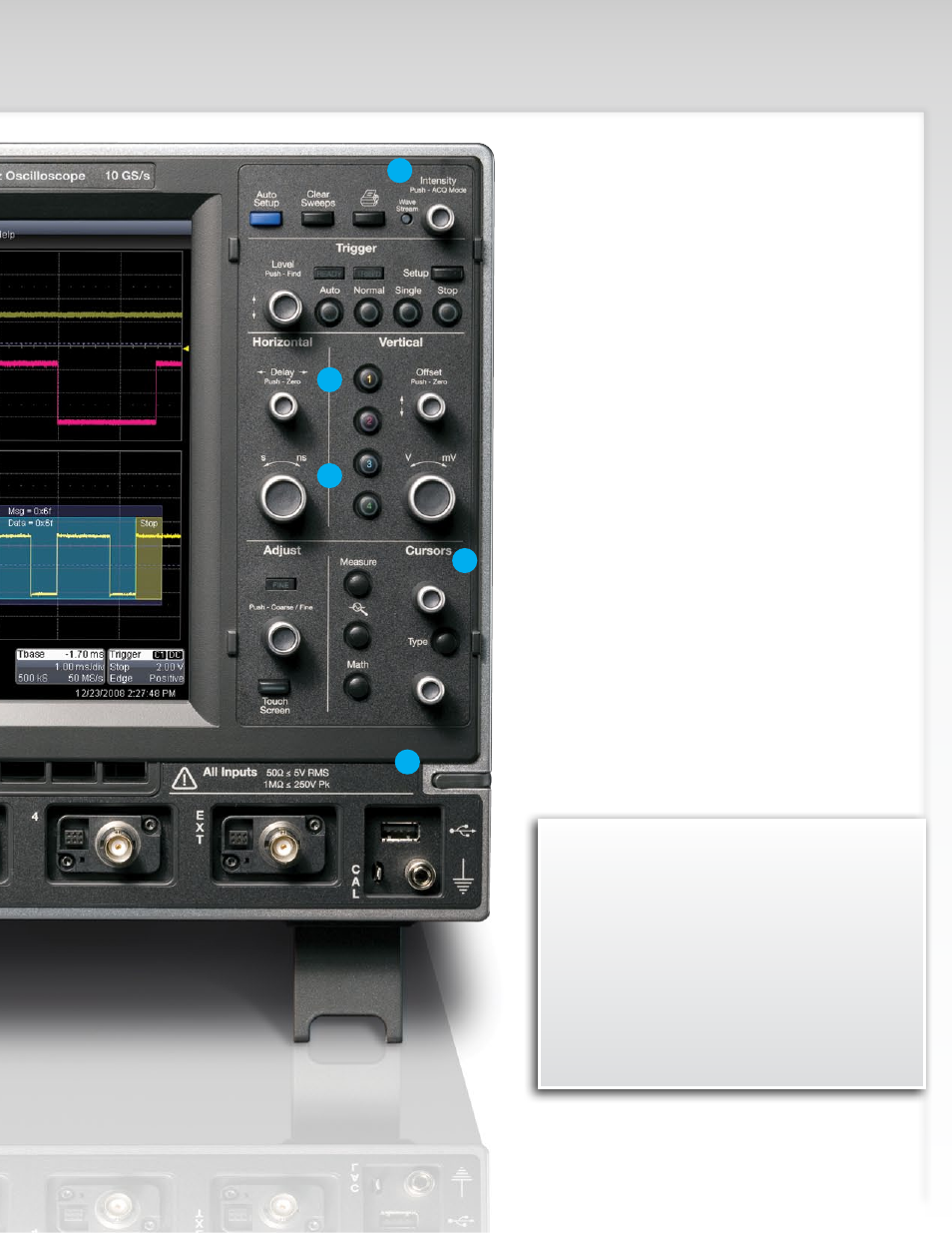

4. “Push” Knobs
Trigger level, delay, and offset knobs all provide
shortcuts to common actions when pushed.
5. Zoom Control Knobs
Navigate zoom or math traces with the
multiplexed horizontal knobs.
6. leCroy Wavestream fast Viewing Mode
Provides a lively, analog-like feel similar to a phosphor
trace. Adjust “trace” intensity with the front panel
control, or toggle between LeCroy WaveStream and
real-time modes.
7. Dedicated Cursor Knobs
Select type of cursor, position them on your
signal, and read values without ever opening
a menu.
8. touch screen with built-in stylus
The most time-efficient user interface is even
easier to use with a built-in stylus.
intuitiVE usEr intErfaCE to finD ProblEMs fastEr
Document and share:
• Quickly save all files with LabNotebook
• Create custom reports with LabNotebook
• Save to internal hard drive or network drive
• Print to a USB printer
• Save to USB memory stick
• Connect with LAN or GPIB
• View data on a PC with free WaveStudio utility
