Video feed-through 1 ≤ 3GHz/> 3 GHz (< 50 mV/< 5 mV)
Video delay (ext input to video) 30 ns, nominal
RF delay (video to RF output) 20 ns, nominal
Pulse overshoot (< 15%)
Input level +1 Vpeak = RF on into 50 Ω, nominal

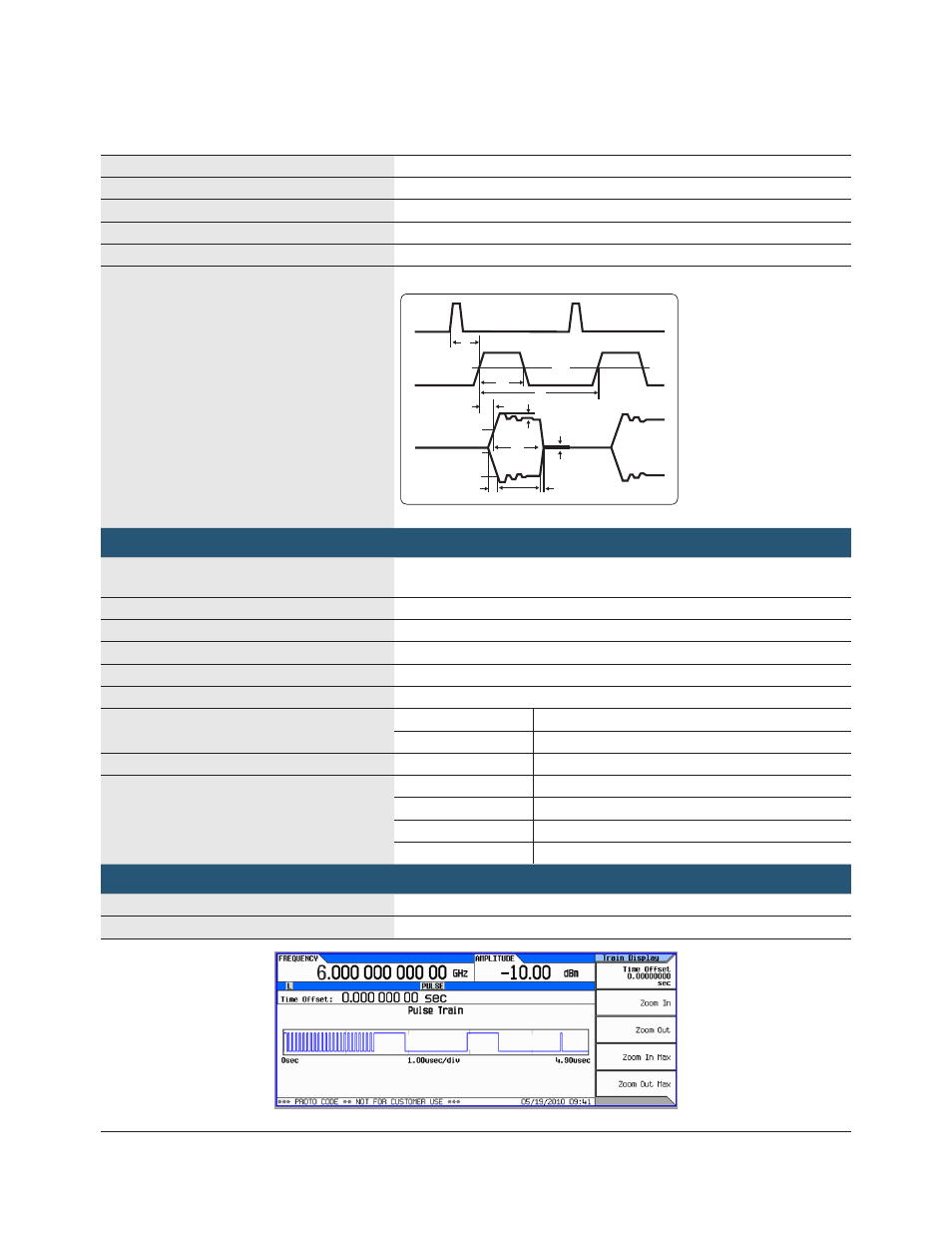

Td video delay (variable)
Tw video pulse width (variable)
Tp pulse period (variable)
Tm RF delay
Trf RF pulse width
Tf RF pulse fall time
Tr RF pulse rise time
Vor pulse overshoot
Vf Video feedthrough
Sync
Output
Video
Output
RF Pulse
Output
Td
Tm
Tw
Trf
Vf
Tf Tr
Vor
Tp
50%
50%
10%
90%
50%
Internal pulse generator (included with Option UNW)
Modes Free-run, square, triggered, adjustable doublet, trigger doublet, gated, and
external pulse
Square wave rate 0.1 Hz to 10 MHz, 0.1 Hz resolution, nominal
Pulse period 30 ns to 42 seconds, nominal
Pulse width 20 ns to pulse period –10 ns, nominal
Resolution 10 ns
Adjustable trigger delay –pulse period + 10 ns to pulse period to pulse width –10 ns
Settable delay Free run –3.99 to 3.97 µs
Triggered 0 to 40 s
Resolution (delay, width, period) 10 ns, nominal
Pulse doublets 1st pulse delay (Relative to sync out) 0 to 42 s – pulse width – 10 ns
1st pulse width 500 ns to 42 s – delay – 10 ns
2nd pulse delay 0 to 42 s – (Delay 1 + Width 2) – 10 ns
2nd pulse width 20 ns to 42 s – (Delay 1 + Delay 2) – 10 ns
Pulse train generator Option 320 (requires Option UNW)
Number of pulse patterns 2047
On/off time range 20 ns to 42 sec
1. Video feed through applies to power levels < +10 dBm.
