Clean the connector face using a cotton swab dipped in isopropyl alcohol. If
the swab is too big use a round wooden toothpick wrapped in a lint free cotton
cloth dipped in isopropyl alcohol. Refer to Agilent Application Note 326,
Principals of Microwave Connector Care (5954- 1566) or Microwave Connector
Care (08510- 90064) for proper cleaning methods.
Disassembly Procedure

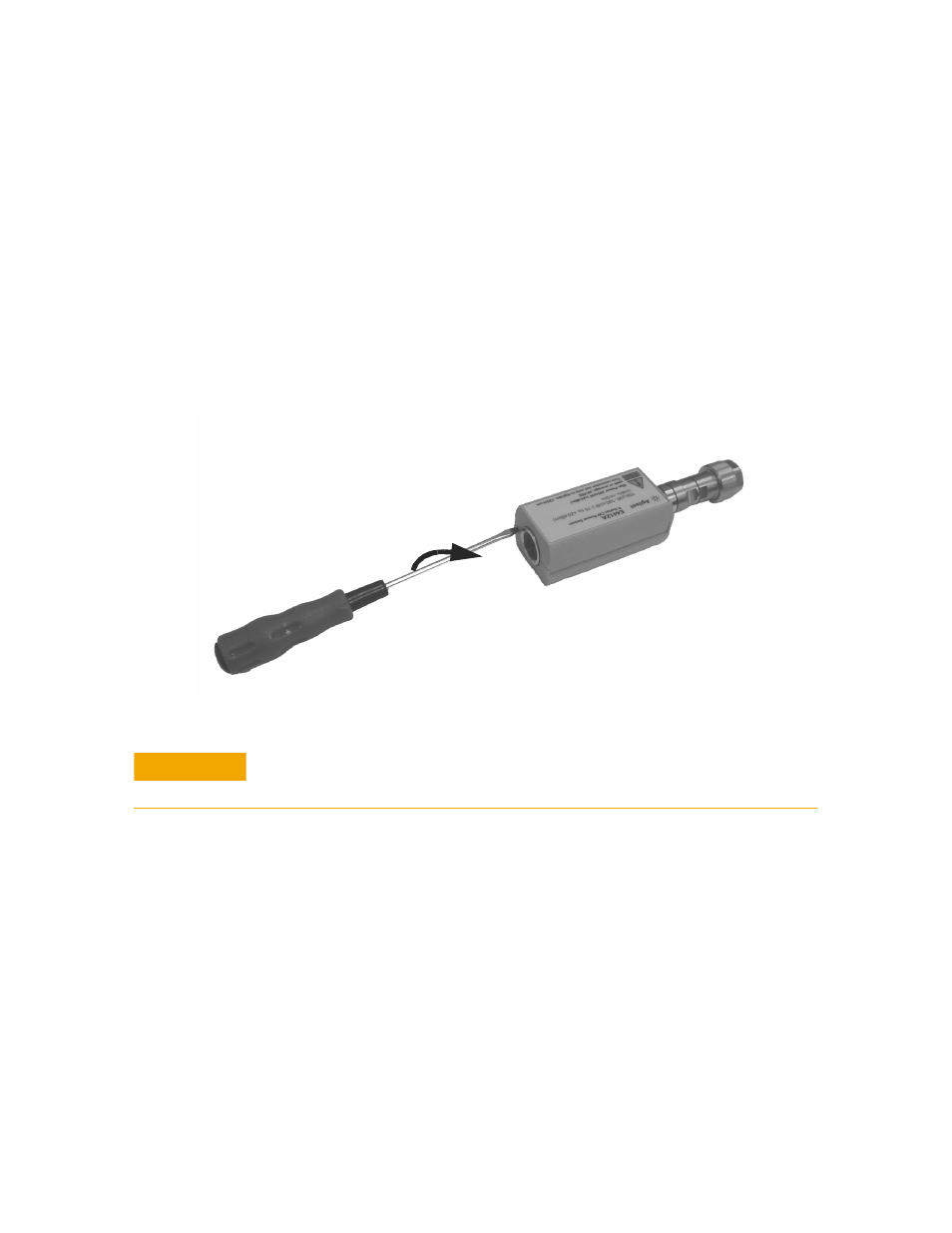

Figure 5 Removing Power Sensor Shell
Disassemble the power sensor by performing the following steps:
1 At the rear of the power sensor, insert the blade of a screwdriver between
the plastic shells ( Figure 5 ). To prevent damage to the plastic shells use a
screwdriver blade as wide as the slot between the two shells.
2 Pry alternately at both sides of the connector J1 until the plastic shells are
apart.Remove the shells and the magnetic shields.
C A U T I O N
Diassemble the power sensor only in a static free workstation. Electrostatic discharge
will render the power sensor inoperative.
