- 36 -
Model 12-1015 Users’ Manual Version 13.08
Associated Equipment Corp.
5043 Farlin Ave. 800-949-1472(US)
St. Louis, MO 63115 314-385-5178 (Outside US)

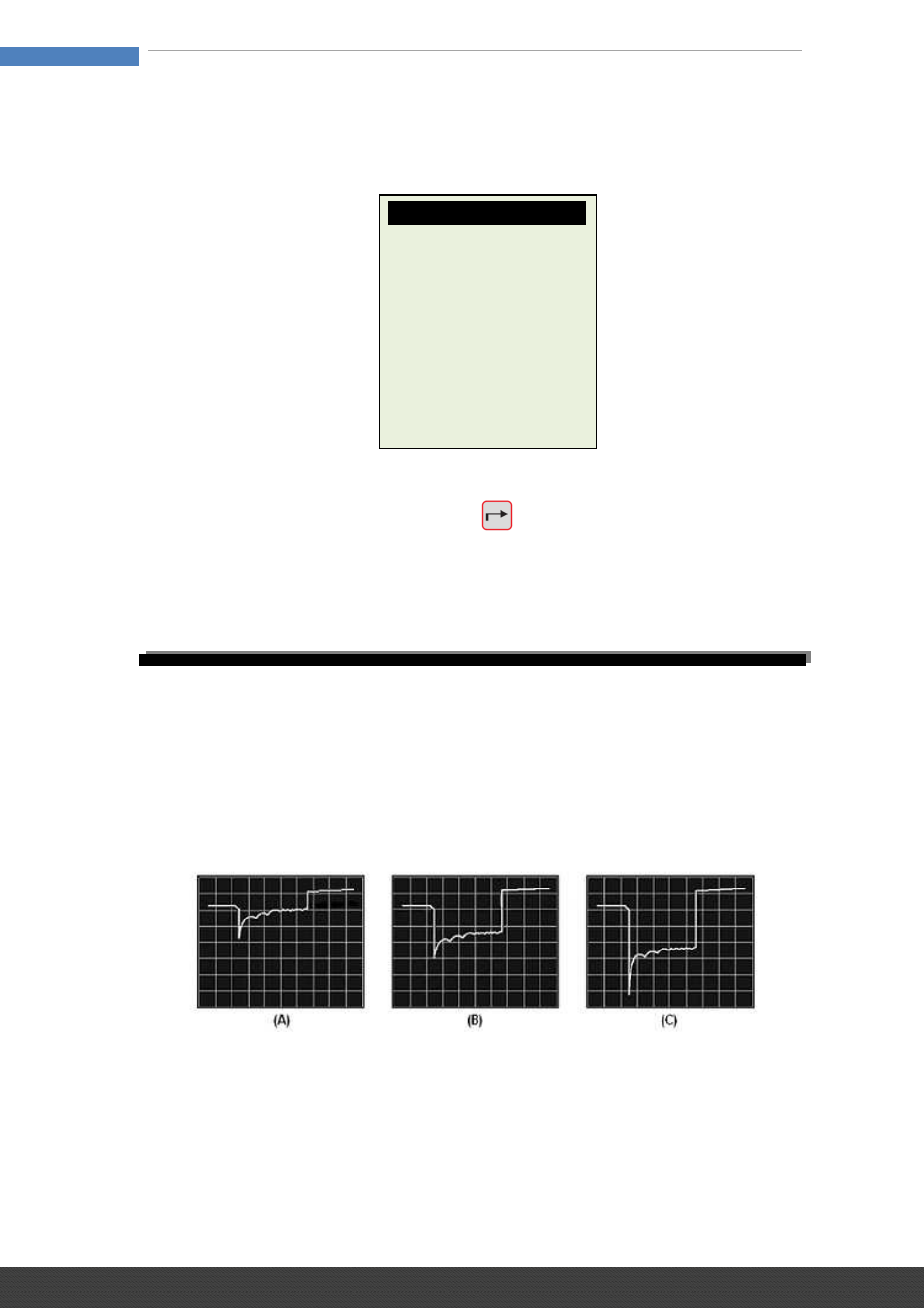

13. If you did not follow the right procedures during the testing, it will display
the results as follows (Fig. 46) below:
14. To exit the program, pressing the key at any moment will exit and
return back to the main menu screen (See Fig.38).
10.0 – Starter Test
This test actually checks the cranking effectiveness of the battery and also
can predicts when the battery will fail to crank a vehicle.
This Analyzer was designed to address the weakness of conventional
testers with its cranking power measurements. Simply connect the
analyzer to the battery in the vehicle and start the engine!
To understand the working principle of the tests, let’s look at the wave
form displays taken during the cranking tests with an oscilloscope.
Figure 46
Results:Not detected
Wrong procedures.
Try again and follow
the step by step
instructions given.
