4.9 Enclosure installation
4.9.1 Enclosure preparation
Remove the protective covering from the system. The doors are designed to be locked with a pad-lock and are
secured with tie-wraps for shipping. Cut the tie-wraps and open the doors. The inside of the enclosure contains the
rectifiers, and other hardware.
Inspect the packing slip to verify that you have received all the equipment that you ordered.
If the batteries are on a separate pallet, do not install them until after the enclosure has been secured and the
ground wires and other cable entries are connected. It is easier to route the cables when the batteries are not
installed.

All documentation is packed inside the equipment compartment.

Inspect all moving parts, hardware, connectors, and other equipment.

Report any damage to the shipper and Alpha Technologies.

Remove and properly dispose of all packaging.

Save the rectifier boxes for future transport.

Remove the rear panels to access the rear mounting bolts.

Remove the four bolts that secure the enclosure to the pallet. These bolts are accessible from the inside of the
enclosure and are located in the corners of the enclosure. The enclosure is now ready for lifting.
4.9.2 Lifting preparation
CAUTION: Follow all local safety practices and guidelines while lifting the enclosure. All personnel
involved with lifting and positioning the enclosure must wear head and eye protection and gloves.
Only properly trained and certified personnel should operate the crane. Only properly trained and
certified personnel should operate the forklift.

Make sure that the lifting eyes are securely fastened before lifting the enclosure. Ensure that the clevises are
correctly installed and that the enclosure is approximately level during the lift. This will simplify the enclosure
positioning.

Close and latch the enclosure front door. The rear panels do not have to be installed.

Place the enclosed rubber mat onto the slab or platform. Orient the mat so that the mounting holes line up. If
the rubber mat is “ribbed” the ribs should be against the concrete.

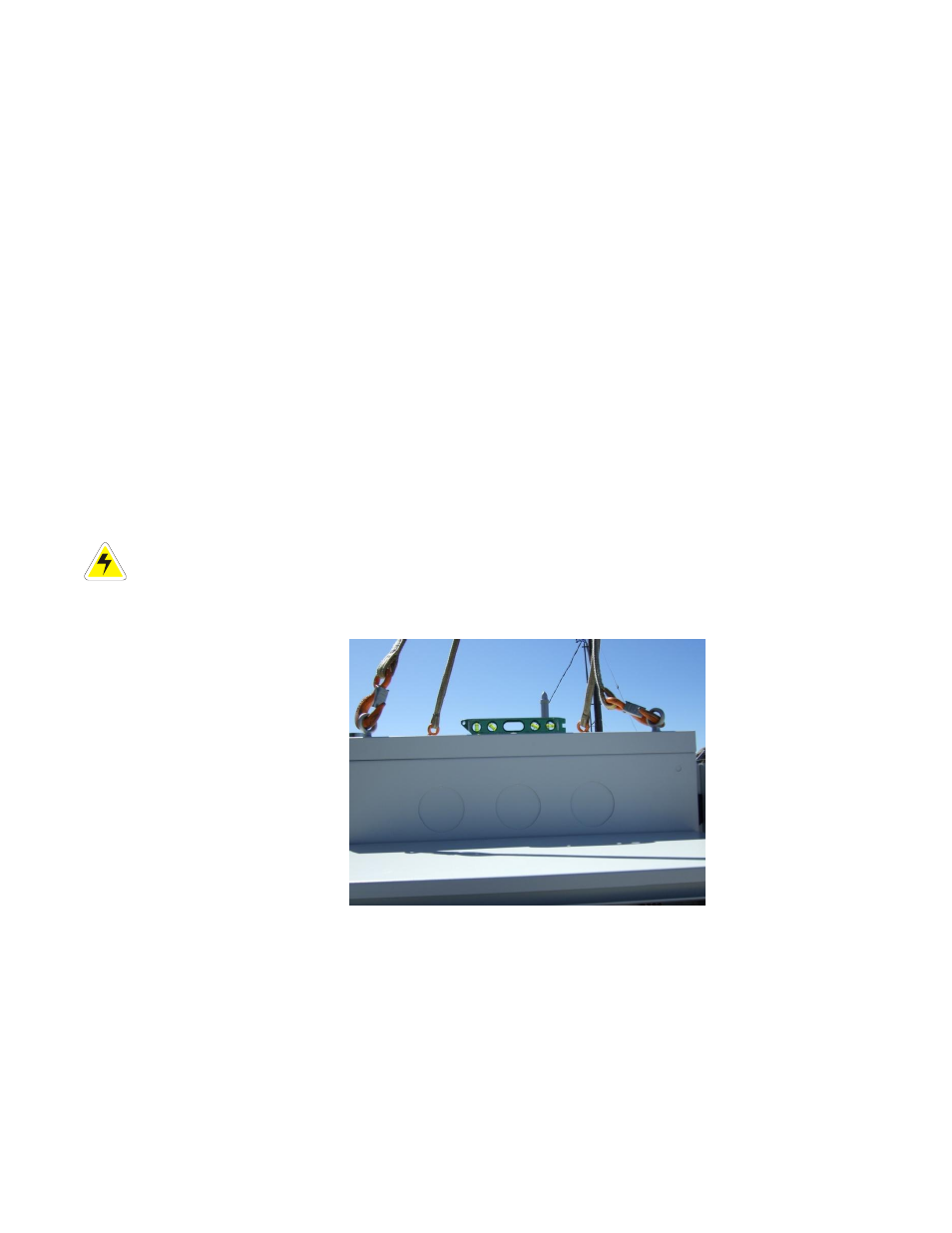

Figure 20 – Secure hooks in eyebolts
