Vue d’ensemble de la platine – ABUS AZ6301 Terxon PSTN dialer User Manual
Page 69
69
6.

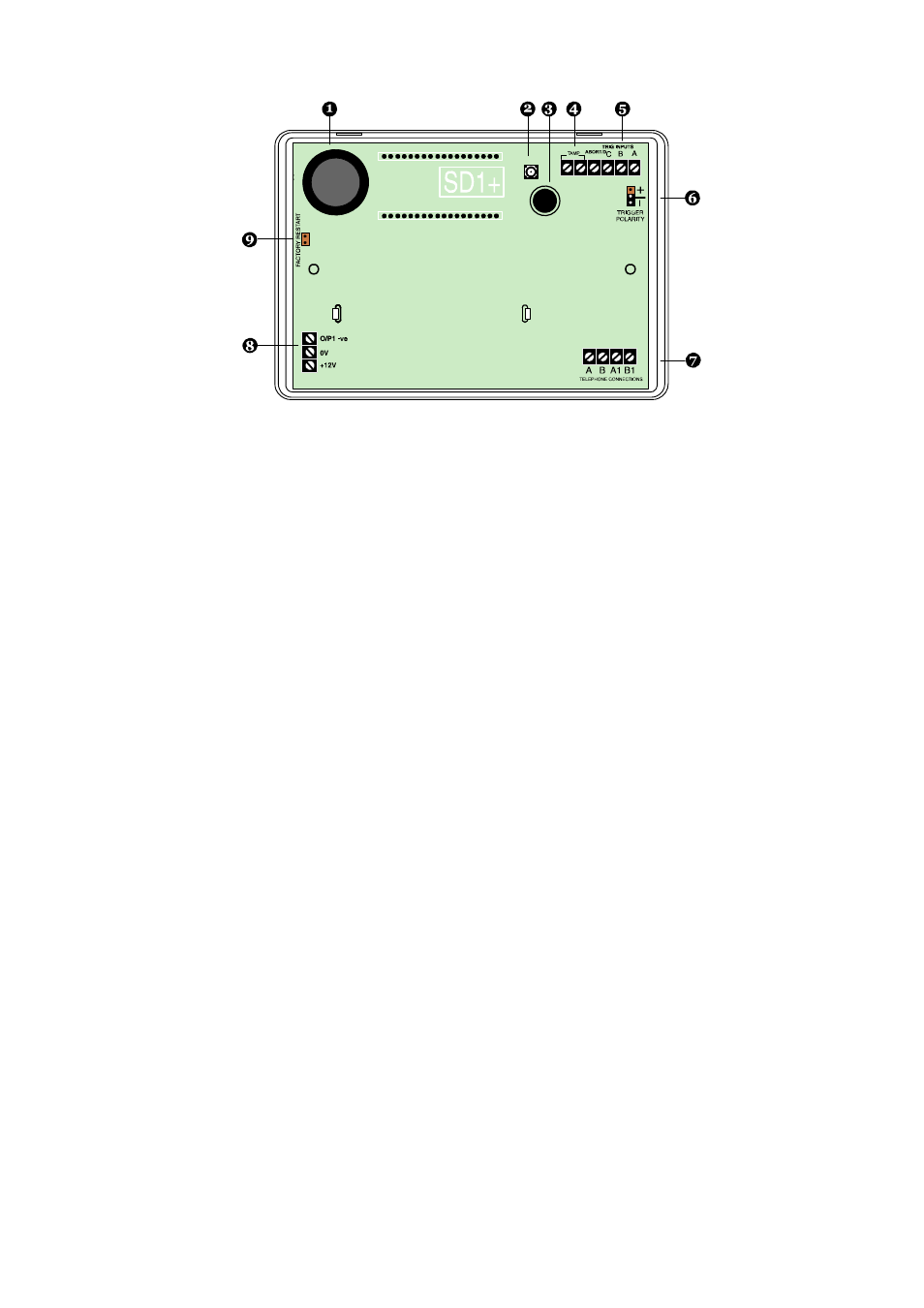

Vue d’ensemble de la platine
1. Haut-parleur
2. Contact
anti-sabotage
3. Microphone
4. Boucle
anti-sabotage
5. Entrées
A
à
D
6. Jack enfichable destiné à la polarité de commande
7. Branchement
téléphonique
8. Alimentation
électrique
12 V/0 V c.c. et sortie
9. Jack enfichable pour le rétablissement de la configuration
d’origine
