7.2 Aktiveringer
BEMÆRK:
Alle indgange aktiveres enten med werden +12 V eller 0 V. Vælg den
ønskede aktiveringspolaritet (gælder for alle indgange) med jumperen
“TRIG POLARITY” på hovedprintkortet. Denne indstilling skal være
konform med indgangenes ledningsføring!
Det anbefales at aktivere via relæ- eller transistorudgange, som sluttes
i tilfælde af alarm (NO-kontakter), da der her ikke er brug for en ekstra
slutmodstand til tilslutningen. I den forbindelse er det ligegyldigt, om
der kobles mod stel (0 V) eller 12 V.
Fordelen ved åbnerkontakter (NC-kontakter) er alarmzonens
selvovervågning. Hvis den afbrydes, aktiveres der.
7.2.1 Positiv
aktivering

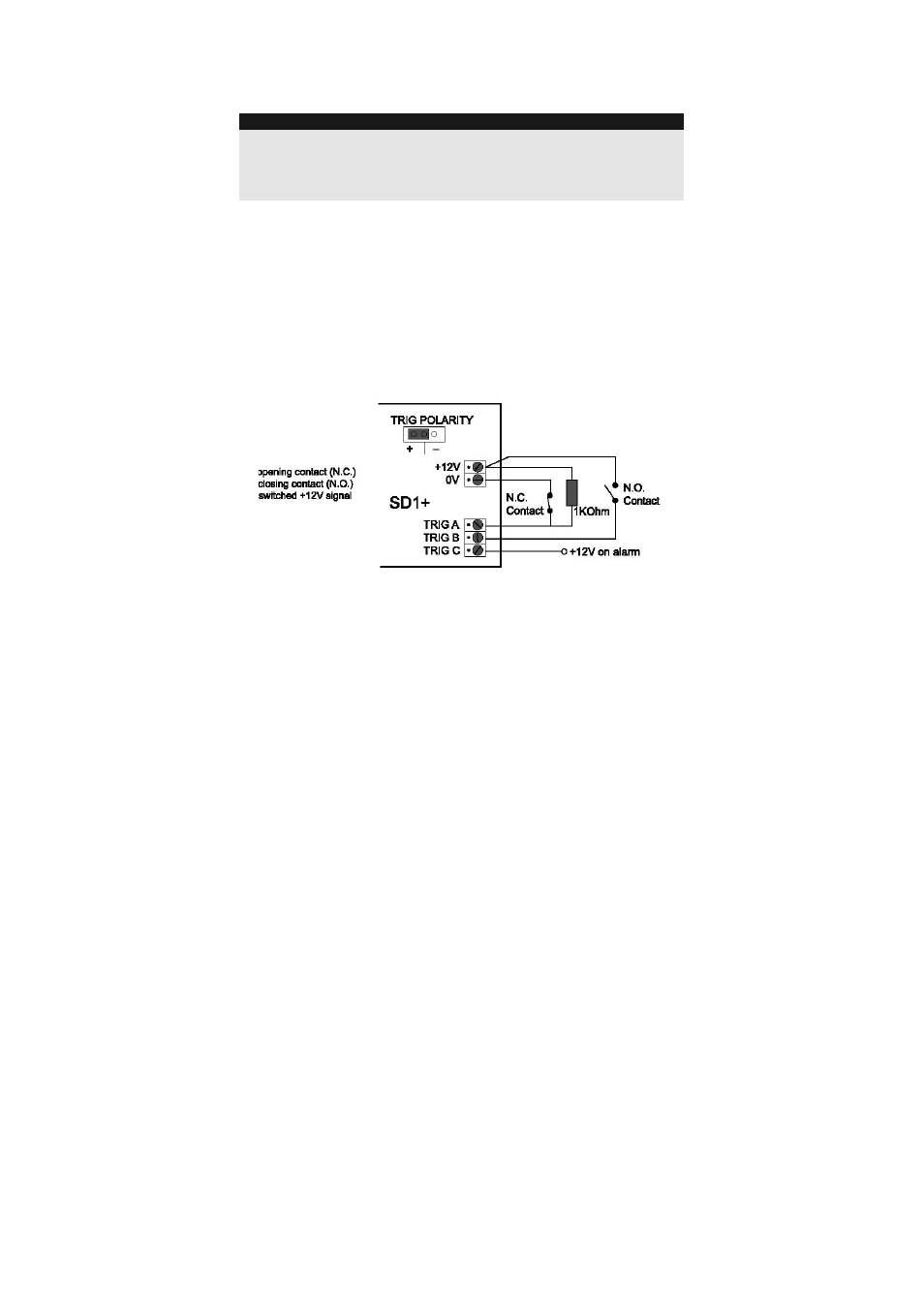

Den positive aktivering af indgangene kan realiseres med forskellige
ledningsføringstyper:
7.2.2 Negativ
aktivering
Den negative aktivering af indgangene kan realiseres med forskellige
ledningsføringstyper:
