Rack mounting instructions
For optional rack mounting, mount the SEQ on any of the
following rack shelves:
• RSF 123 3.5" deep 1U VersaTools
® rack shelf kit
(part #60-190-20) (figure 2)
• RSB 123 3.5" deep 1U VersaTools rack shelf
(part #60-604-20)
• RSU 126 6" deep 1U universal rack shelf kit
(part #60-190-10)
• RSB 126 6" deep 1U basic rack shelf (part #60-604-10)
• RSU 129 9" deep 1U universal rack shelf kit
(part #60-190-01) (figure 3)
• RSB 129 9" deep 1U basic rack shelf (part #60-604-01)
• MBB 100 VersaTools back of the rack mounting kit
(part #70-367-01)
In-rack installation
On the non-VersaTools rack shelves, the SEQ can be mounted in
the front or the rear of the rack (figure 3).
(2) 4-40 x 3/16"
Screws
Use 2 mounting holes on
opposite corners.
VersaTools Rack Shelf
1/4 Rack Width Front
False Faceplate

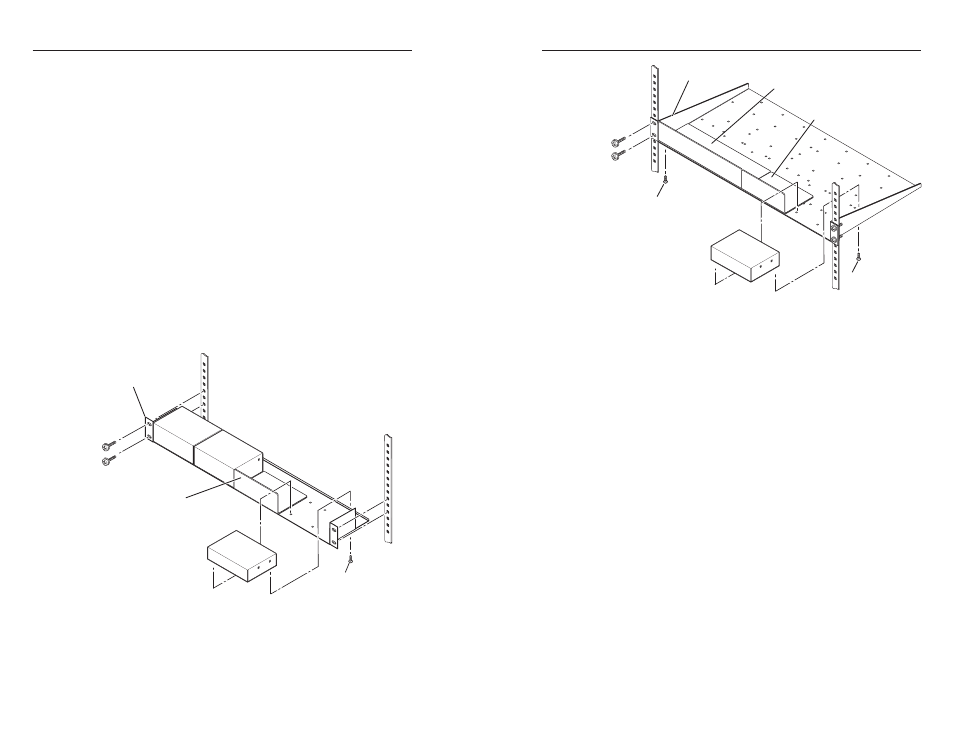

Figure 2 — Mounting the SEQ on a VersaTools rack
shelf
Use 2 mounting holes on
opposite corners.
(2) 4-40 x 3/16"
Screws
1U Universal Rack Shelf
1/4 Rack Width
Front False
Faceplate
1/2 Rack Width
Front False
Faceplate
Both front false faceplates
use 2 screws.
Figure 3 — Mounting the SEQ on a standard rack
shelf
1 . Remove the feet from the bottom of the SEQ, if they are
installed.
2 . Mount the SEQ using two 4-40 x 3/16" screws in opposite
(diagonal) corners to secure the SEQ to the shelf.
3 . Install false faceplate(s) or other unit(s) to the rack shelf.
4 . Insert the shelf into the rack, aligning the holes in the shelf
with those of the rack.
