Reference
Information
This section provides information on the following subjects:
• TP Cable Termination
• Mounting the USB Extender
TP Cable Termination
NOTES:
• RJ-45 termination with CAT 5, CAT 5e, CAT 6, CAT 6e, and CAT 7 cable must
comply with the TIA/EIA T 568A or TIA/EIA T 568B wiring standard for all
connections.
• The transmitter and receiver pair work with unshielded twisted pair (UTP)
or shielded twisted pair (STP) cables; but to ensure FCC Class A and CE
compliance, STP cables are required.
• Terminate both ends of the cable identically, in accordance with either the TIA/
EIA T 568A or the TIA/EIA T 568B wiring standard.

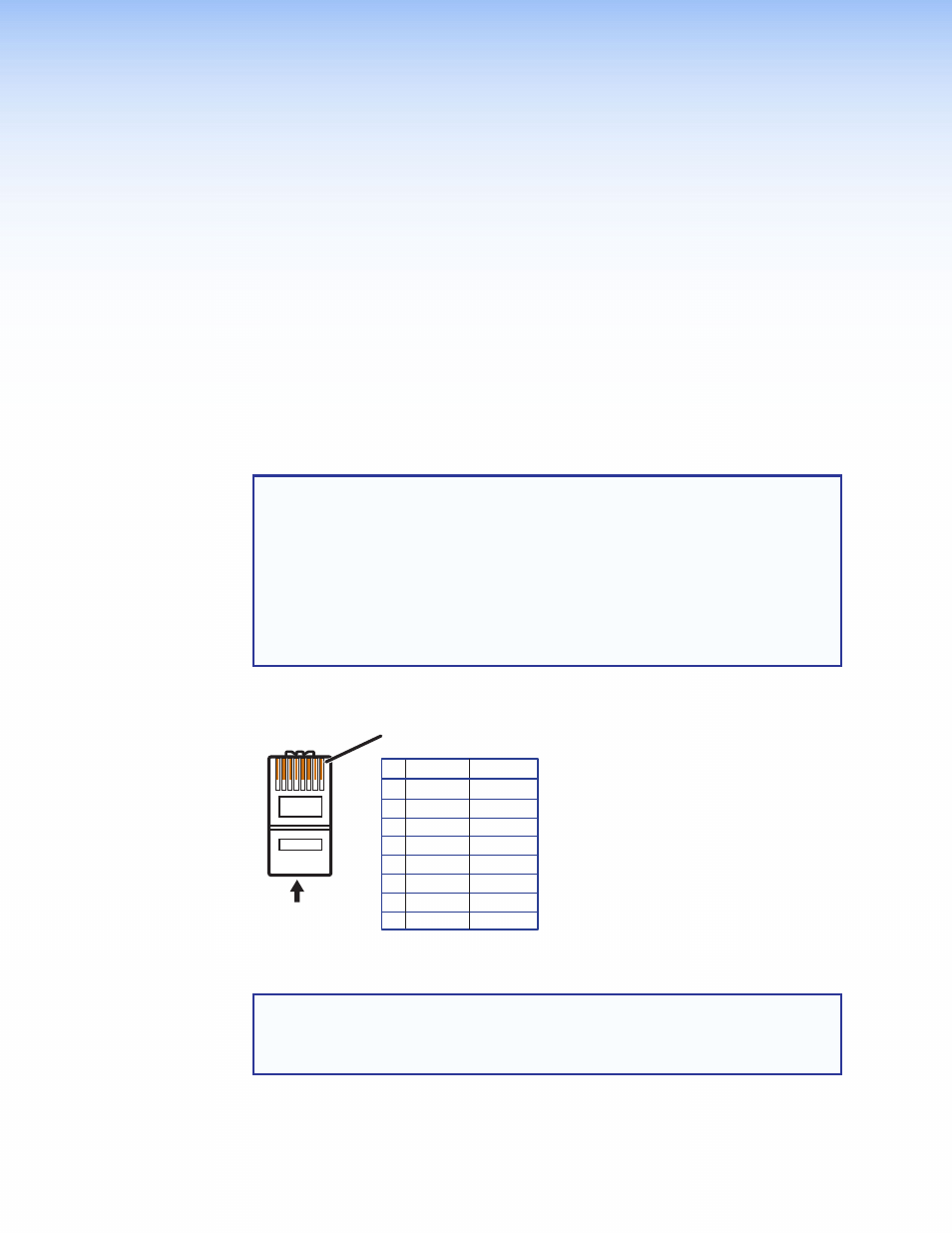

Figure 9 shows the recommended termination of TP cables with RJ-45 connectors.
NOTE: Terminate both ends of a cable identically, in
accordance with either the TIA/EIA T 568A or the
TIA/EIA T 568B wiring standard.
12345678
Insert
Twisted
Pair Wires
Pins:
RJ-45
Connector
Pin
1
2
3
4
5
6
7
8 White-green
Green
White-orange
Blue
White-blue
Orange
White-brown
Brown
568 A 568 B
White-orange
Orange
White-green
Blue
White-blue
Green
White-brown
Brown
Figure 9. TP Cable Termination
NOTE: Do not use Extron UTP23SF-4 Enhanced Skew-Free™ A/V UTP cable to
link the transmitter and receiver. Skew-free A/V cable is designed for Extron TP
transmitter and receiver A/V applications. The USB Extender Series will not work
properly with this cable.
USB Extenders • Reference Information 13
