Operation

Transmitter Front Panel Indicators

The transmitters have three LED indicators on the front panel. AAP and Decora transmitters
also include a female USB mini-type B port.

LINK

HOST

ACTIVITY

USB EXTENDER Tx

HOST

USB EXTENDER AAP Tx

ACTIVITY

LINK

HOST

b

g

h i

HOST

ACTIVITY

LINK

HOST

b

g

h

i

g

h i

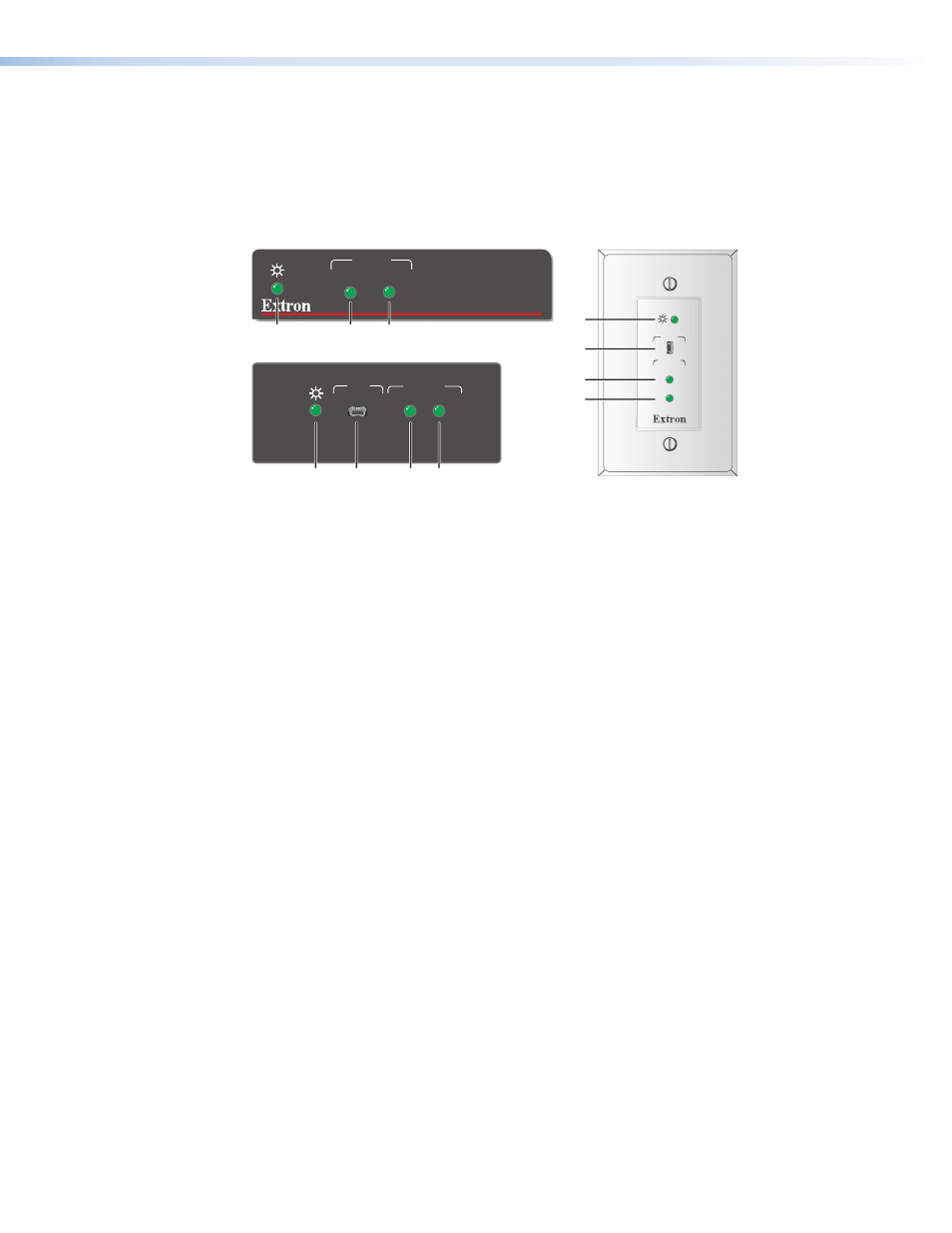

Figure 5.

Front Panel Indicators, USB Extender Transmitters

b

USB Host connector (AAP and Decora Tx only) — Connect a Type A male to
mini Type B male USB cable to the USB port of a PC or laptop. The USB Extender is
USB 2.0 compliant and supports data transfers of 480 Mbps (high speed), 12 Mbps (full
speed), and 1.5 Mbps (low speed).

g

Power LED — This front panel LED lights to indicate the unit is receiving power.

h

Link LED — Lights when the transmitter and receiver are successfully connected
together by the twisted pair cabling and both transmitter and receiver are powered.

i

Host Activity LED — Lights when the transmitter is powered and is communicating
with the host PC.

USB Extenders • Installation and Operation

8
