Receiver Rear Panel
The Rx (receiver) rear panel (see figure 4) has a DC power input, twisted pair link connection,
and also has four female USB Type A hub connectors. AAP and Decora receivers have the
hub connectors on the front panel.
HUB
1
2
3
4
POWER
12V
1.0A MAX.
LINK
DO NOT
CONNECT
TO LAN
PO
WER
12V 2.0A MAX.
DO NOT
CONNECT
TO LAN LINK
LINK
-.-A MAX
POWER
12V
DO NOT
CONNECT
TO LAN
f d e
AAP
Rack Mount
Decora
d
e

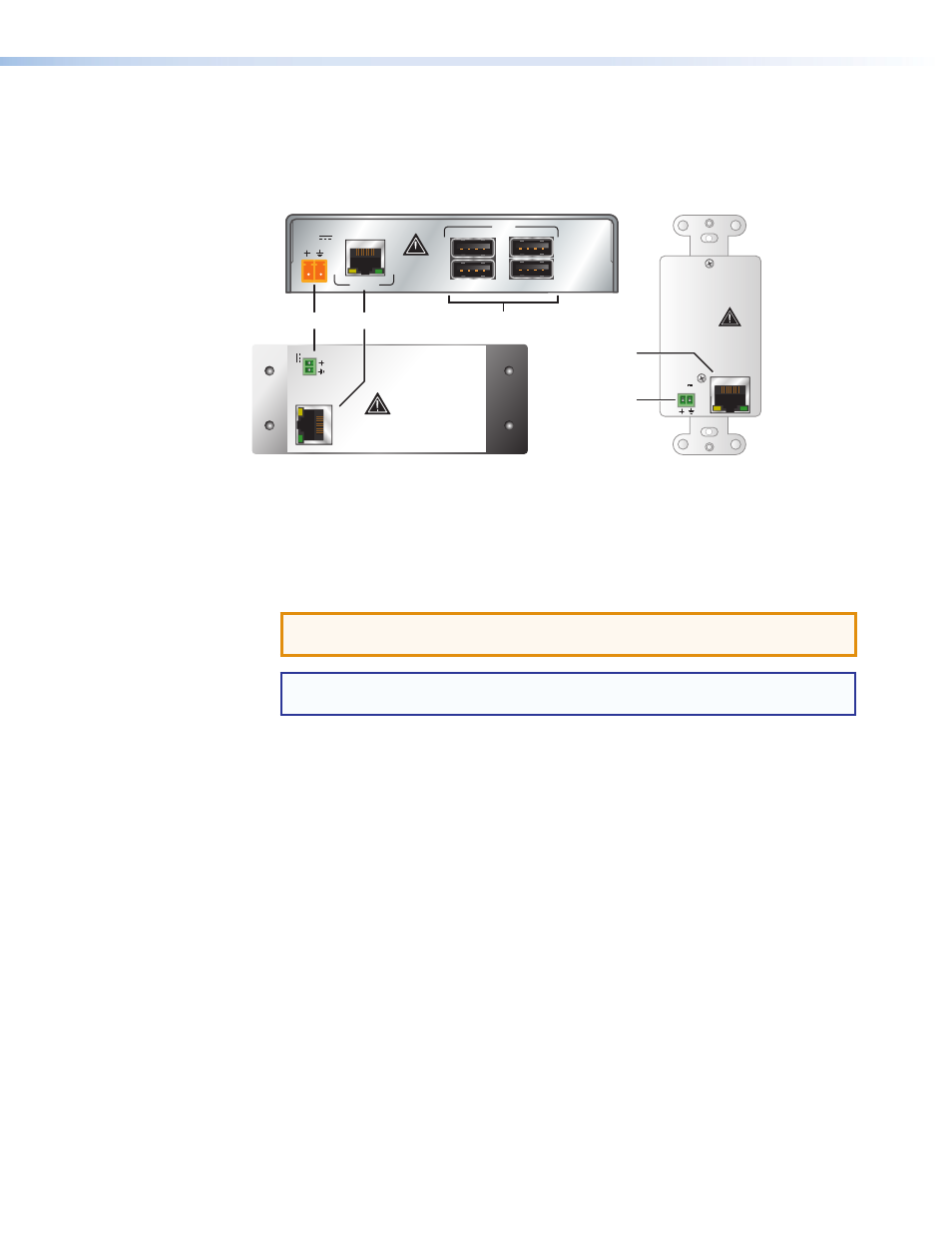

Figure 4. Receiver (Rx) Rear Panel Connectors
d Power input connector — The receiver requires an external supply. Plug the included
12 VDC power supply into this two-pole, 3.5 mm captive screw connector.
e Link (twisted pair) connector — Connect the TP cable from the transmitter Link
connector (figure 3,
c ) to this RJ-45 female connector.
ATTENTION: Do not connect this port to a computer data or
telecommunications network.
NOTE: In order for the AAPs to fit in a junction box, the TP cables and RJ-45
connectors should not have a boot installed.
f USB hub connectors (USB Extender Rx only) — The built-in four port hub has four
female USB Type A connectors. The connections are USB 2.0 compatible, providing
+5 VDC at up to 500 mA to connected USB peripherals requiring power.
See
TP Cable Termination on page 13, to properly wire the RJ-45 connectors.
USB Extenders • Installation and Operation 7
