Setup
2-2
Refer also to the IPL 250 Reference Manual at www.extron.com.
IPL 250 • Setup
For your convenience, there is an installation checklist on the outside back cover.

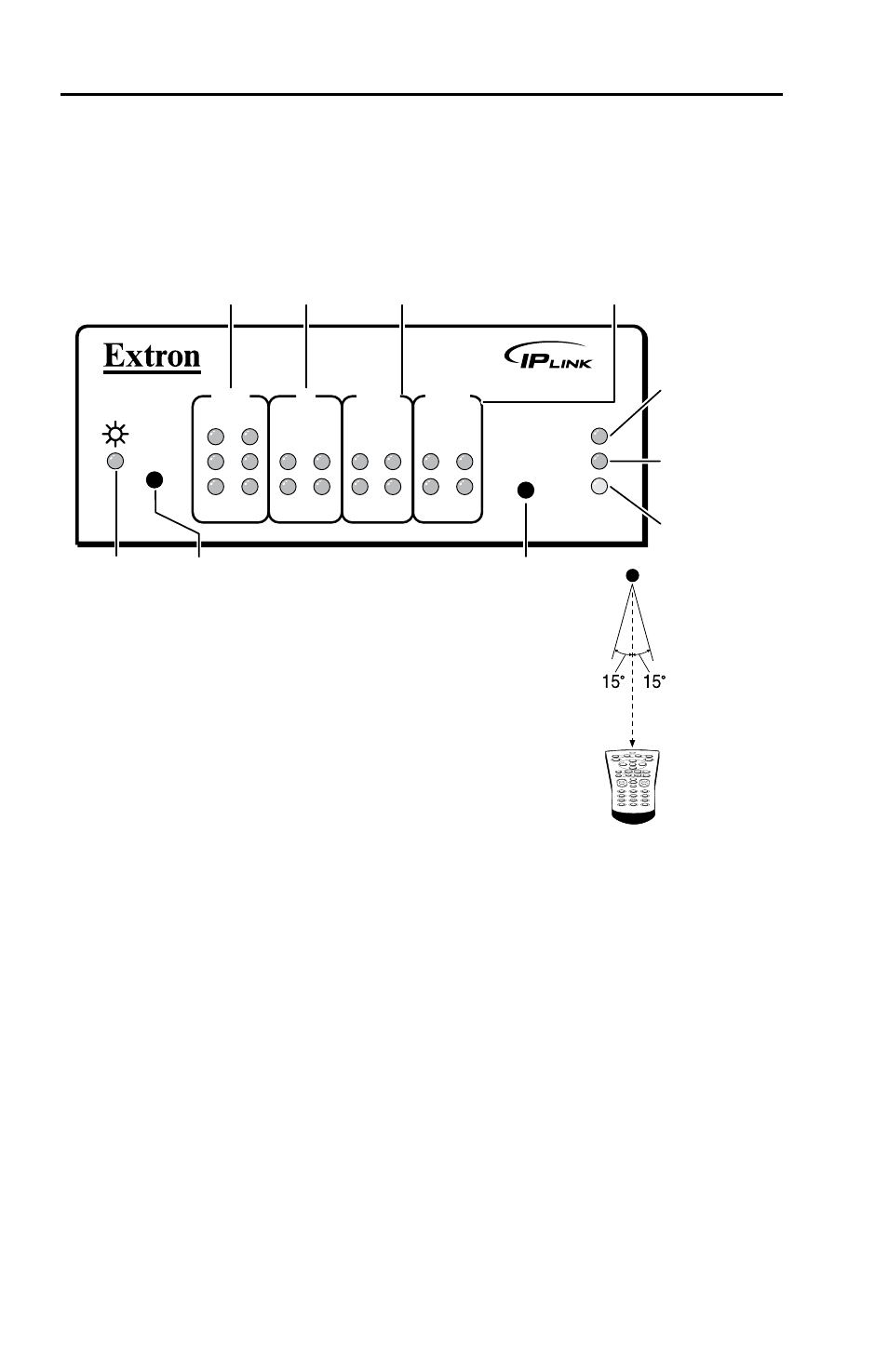

Front Panel Features
1
3 1
4 2
3 1
4 2
3 1
4 2
2
3
100
LINK
ACT
COM IR INPUT RELAY
TX RX
R
IPL 250
®
1 2 3
4 5 6
7 8
0
9
2–12"
(4–30 cm)
RS-232 (COM):
TX = Transmitting Data
RX = Receiving Data
IR:
LED Lights When
IR port (1-4)
Transmits Data
Contact Input:
LED Lights When
Input Port is Closed
(tied to GND)
Relay:
LED Lights When
Relay is Activated
(tied to GND)
100 Mbps
Connection
Network is
Active
Data is Being
Sent/received.
IR Receiver:
IR Learning
Angle and
Distance
Power LED:
Lit When
Receiving
Power
Reset Button
(recessed):
See “Resetting
the Unit,” in the
IPL 250 Reference
Manual
