Template, Extender plus d template – Extron Electronics Extender Plus Series User Guide User Manual
Page 22
Extender Plus Series • Reference Information
16

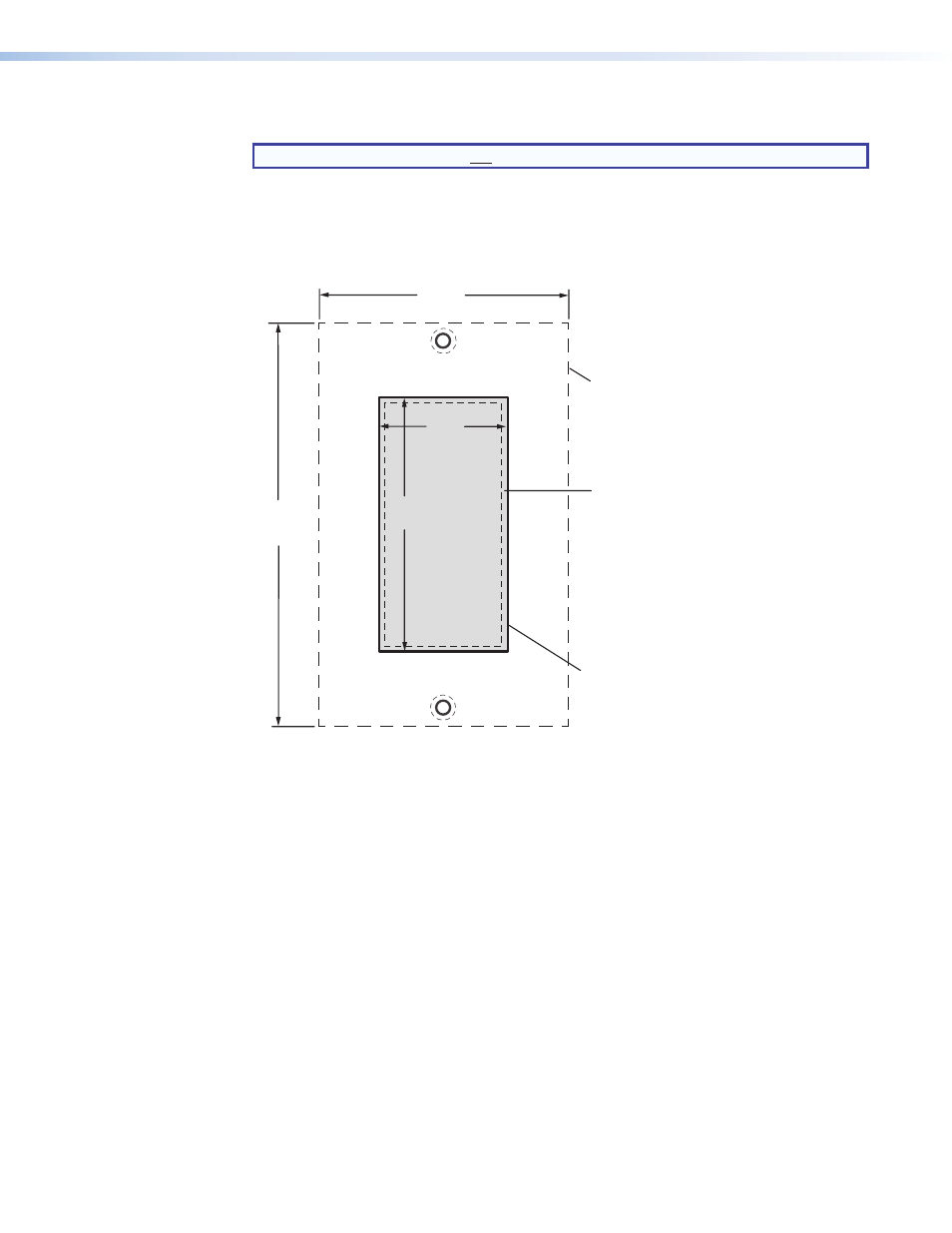

Template
NOTE:
The drawing below is not full size. Do not scale.
Extender Plus D Template
Extender Plus D
(Front View)
Cut-Out Template for
To install an
Extender Plus D
directly into
furniture or wall,
cut along this line.
1.44
"
(36.6 mm)
4.50"
(11.43 cm)
Top Panel
SURFACE
CUT-OUT AREA
FOR
FURNITURE
MOUNT
2.79"
(7.09 cm)
2.83
"
(71.9 mm)
Location of
Extender Plus D
