Extender Plus Series • Installation and Operation 10
Mounting
Mounting the Extender Plus AAP
The Extender Plus AAP and any other adapter plates must be attached to a device
faceplate or AAP wall plate and cabled before the device or wall plate is installed in a wall or
furniture.
1. Before attaching any user-supplied cables, insert the Extender Plus AAP output BNC
connectors and wires through the opening in the front of the wall plate or device
faceplate.
ATTENTION: Potential damage to property. Be careful not to damage
connectors while placing the Extender through the opening.
2. Insert the threaded standoffs of the AAP through the holes in the device faceplate or
AAP wall plate.
3. Using the provided #4-40 nuts and captive washers, secure the Extender to the
faceplate or wall plate.
Installation Cable
Cable
Clamp
Screws or Nails
Wall Stud
Extender Plus AAP
AAP 102
AAP 102
#4-40 Nut w/ Captive
Washer
EXTENDER AAP Plus
COMPUTER IN
AUDIO IN

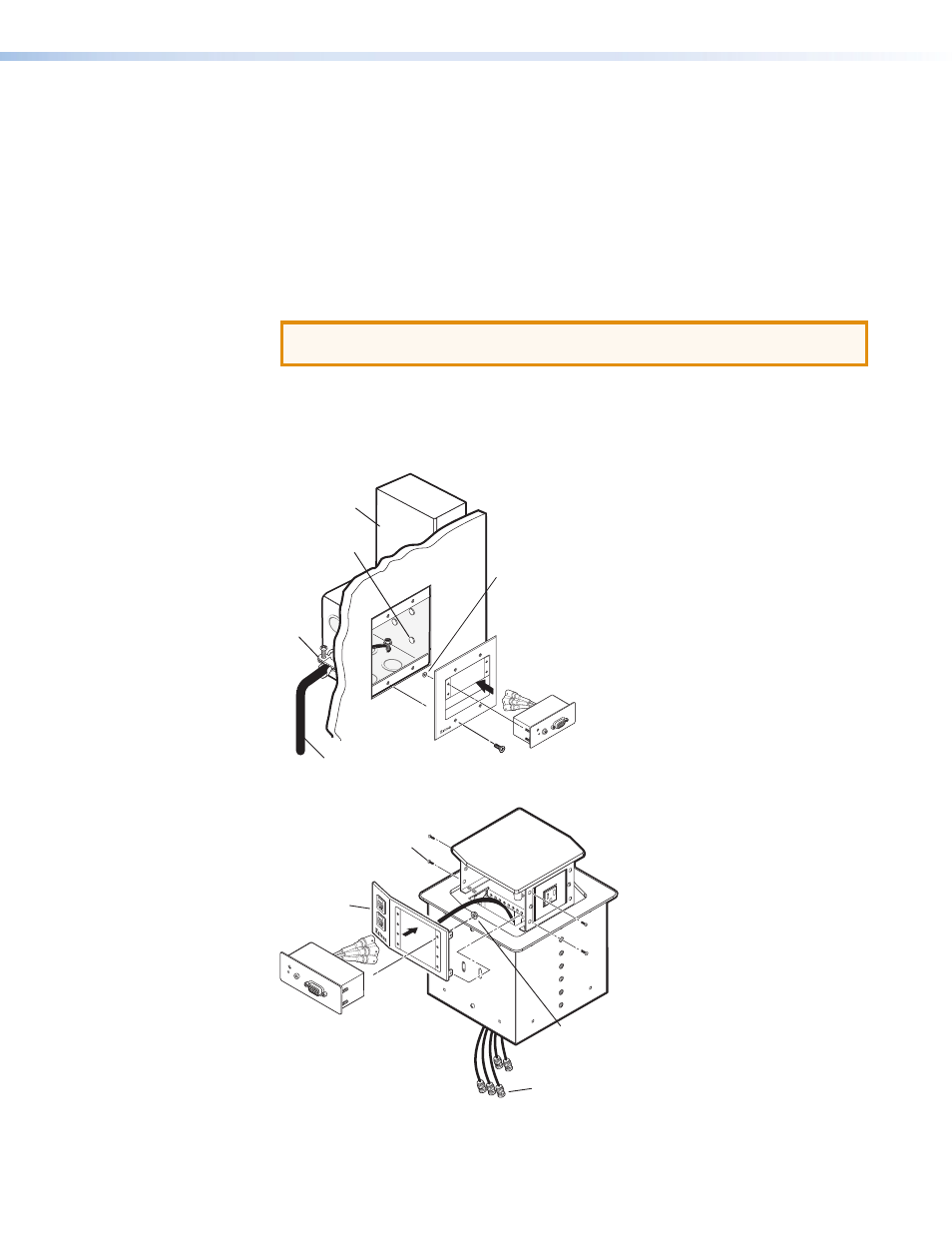

Figure 4. Mounting the Extender Plus AAP to a Device or Wall Plate
Connects to
AAP Cable
Two Screws
Each Side
Front Panel
HSA 822
#4-40 Nut
w/ Captive
Washer
Extender Plus AAP
HSA 822
EXTEN
DER AAP
Plu s
COMPUTER I
N
AUDIO IN
Figure 5. Mounting the Extender Plus AAP to an HSA Faceplate
