Chapter 3 • Using the FPC 1000 Front Panel Controller
Extron • Matrix 3200/6400 Series Switchers • FPC 1000 • User’s Manual
Misc Menu – Resets
Press any menu title
button at any time
to “escape” without
making changes.
To get here from the Main Menu,
press:
• Misc
• System Resets
Instruction message appears here >
Use option selections with buttons >

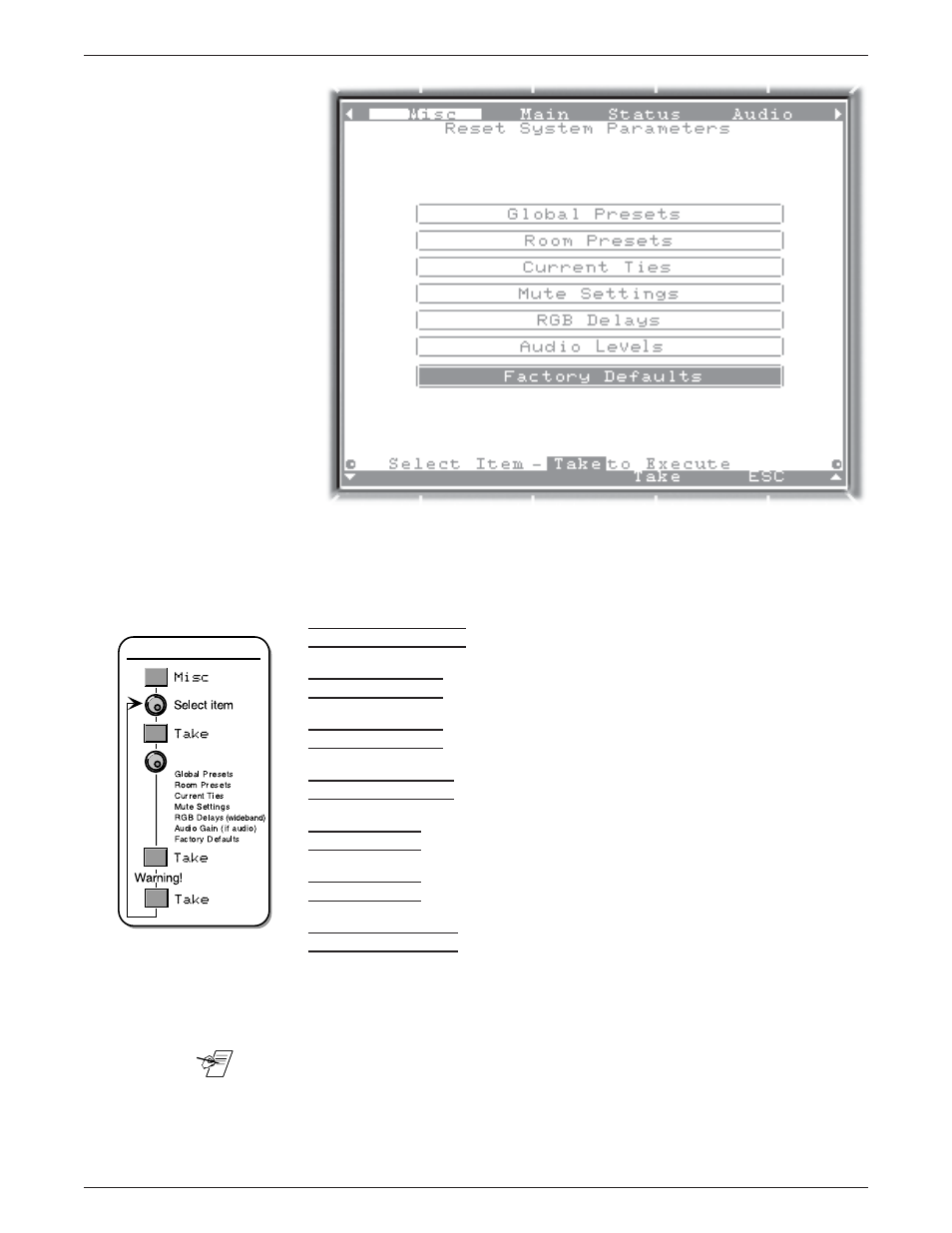

Figure 3-15. Misc/System Reset menu (shown with Factory Default selected)
The items that appear in this menu may not be the same on your system. If an
item is missing, it is because your system does not have the related feature. For
example, if there is no audio module, Audio Gain will not appear.
Select the functions to reset from the following items:
G l o b a l P r e s e t s
Reset all global presets, including given names.
R o o m P r e s e t s
Reset all room presets, including given names.
C u r r e n t T i e s
Reset (break) all I/O ties.
M u t e S e t t i n g s
Turn all mutes off (RGB and/or audio, if these are part of this system).
RGB Delays
Set all output delays to 0 seconds. (Only on Wideband units)
Audio Levels
Set all audio gain/attenuation levels to 0 dB. (Only on systems with audio)
Factory Defaults
Reset all of the above.
Use the scroll buttons or the speed knob to select one of the displayed (five, six
or seven) options from this menu. This example shows Factory Defaults. Press
Take to reset the system to Factory Defaults.
_______ A warning message appears at this time, asking for confirmation. Press Take
again – only if you are sure you want to change the settings.
System Reset
Select function:
(System Reset)
3-16
