DVC 501 SD • Operation 18
4. On the Add Device window, select DVC 501 SD from the Device Name drop-down
menu.

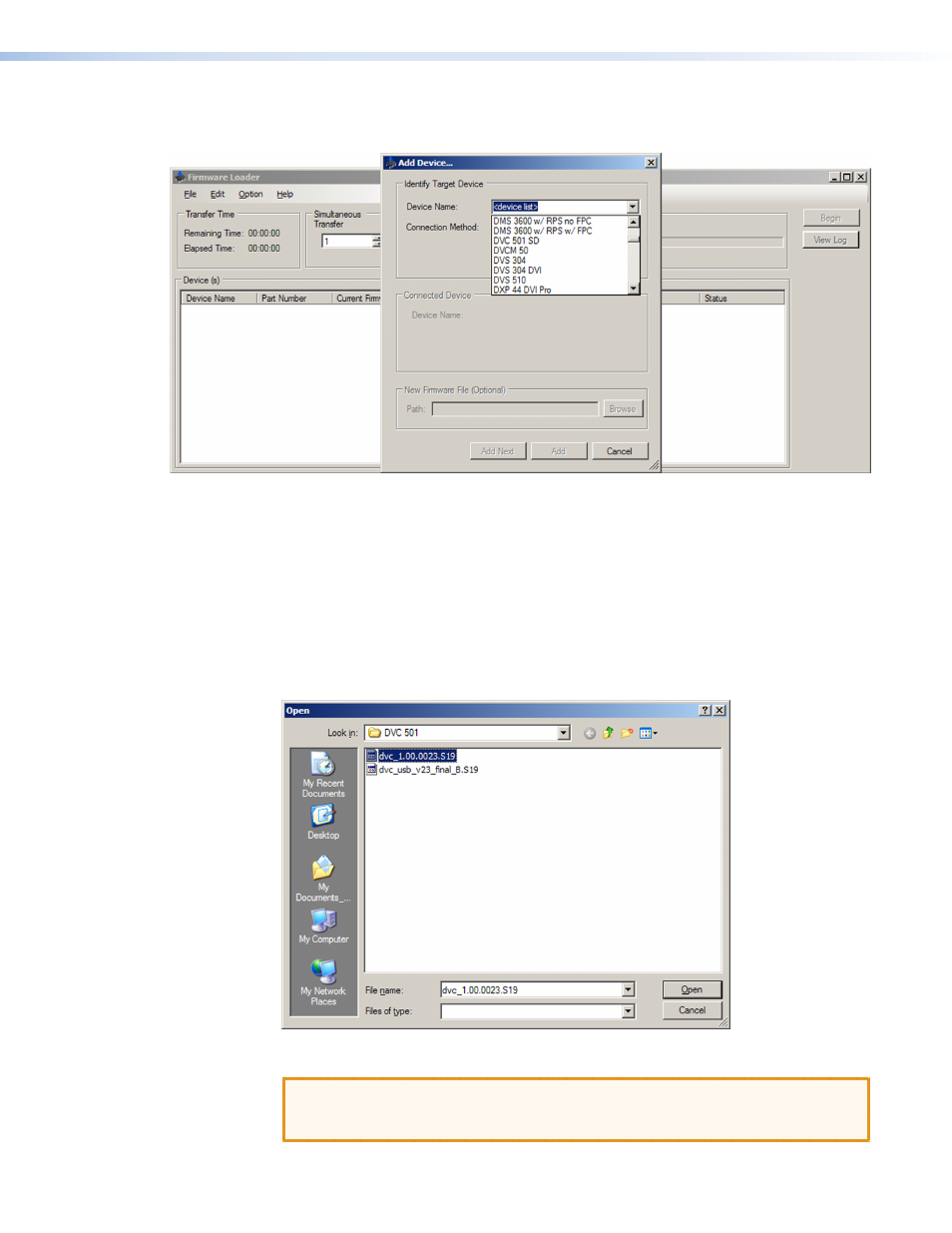

Figure 20. Device Name Drop-down Menu on the Add Device Window
5. From the Connection Method drop-down menu, select RS-232 or USB .
6. If using RS-232, select the appropriate options from the Com Port and Baud Rate
menus (this information is provided by your system administrator).
7. Click Connect . If the connection is successful, DVC 501 SD is displayed in green and
followed by a check mark in the Connected Device section.
8. Click the Browse button in the New Firmware File (Optional) section.
9. On the Open window, navigate to the new firmware file, which has an .s19 extension,
and double-click it. The Open window closes.
Figure 21. Open Window for the Firmware Loader
CAUTION: Valid firmware files must have the file extension .s19. A file with any
other extension is not a firmware upgrade for this product and could
cause the DVC to stop functioning.
