DVC 501 SD • Operation 9
Operation
This section discusses the functions available through the front panel to set up and operate
the DVC 501 SD. Topics include:
• Front Panel
• Powering On
• Menus on the LCD Screen
• Resetting
• Front Panel Lockout (Executive Mode)
• Updating Firmware
Front Panel
CONFIG
NEXT
MENU
DVC 501 SD
DIGITAL VIDEO CONVERTER
ADJUST
1 2 3 5 4

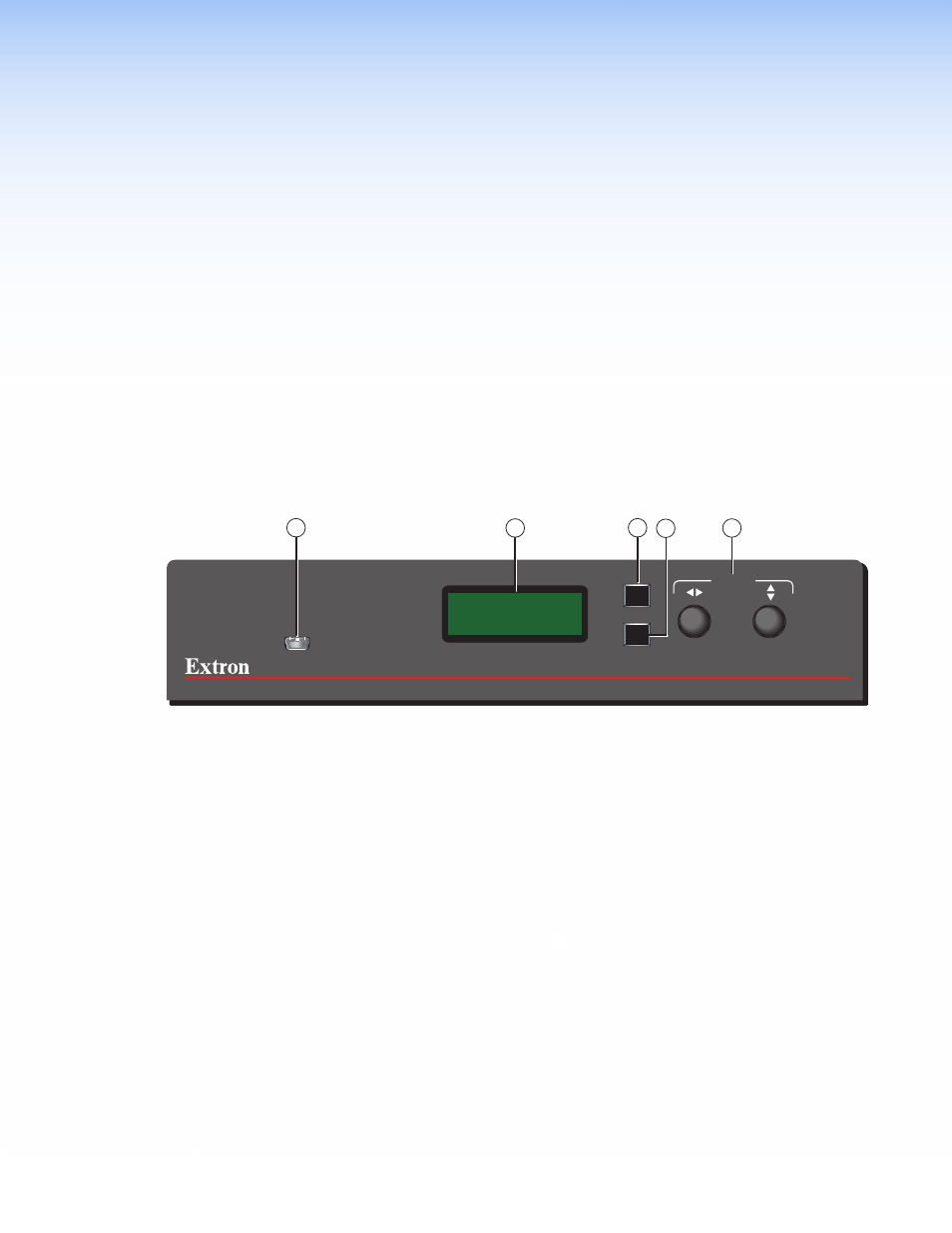

Figure 9. DVC 501 SD Front Panel
The front panel features and controls shown in the illustration above are described starting
below.
a
Config port — Connect a USB cable (USB A-to-mini-B) from your computer to this port
to configure and control the DVC via SIS commands and to update the firmware.
b
LCD screen — Displays menus, messages, and your selections from menus and
submenus (see “ Menus on the LCD Screen ,” later in this section, for more
information).
c
Menu button — Press this button to access the DVC menu system and step through
the menus displayed on the LCD screen ( b ) (see “ Menus on the LCD Screen ” for
details).
d
Next button — Press this button to step through the submenus displayed on the LCD
screen.
e
Adjust knobs — Rotate these horizontal ([) and vertical ({) knobs to scroll through
submenu options and make adjustments.
