DVC 501 SD • Operation 16
Alt Pixels
X-Hatch 4x4
Grayscale
Color Bars Crop
1.78 Aspect
1.85 Aspect
2.35 Aspect
1.33 Aspect

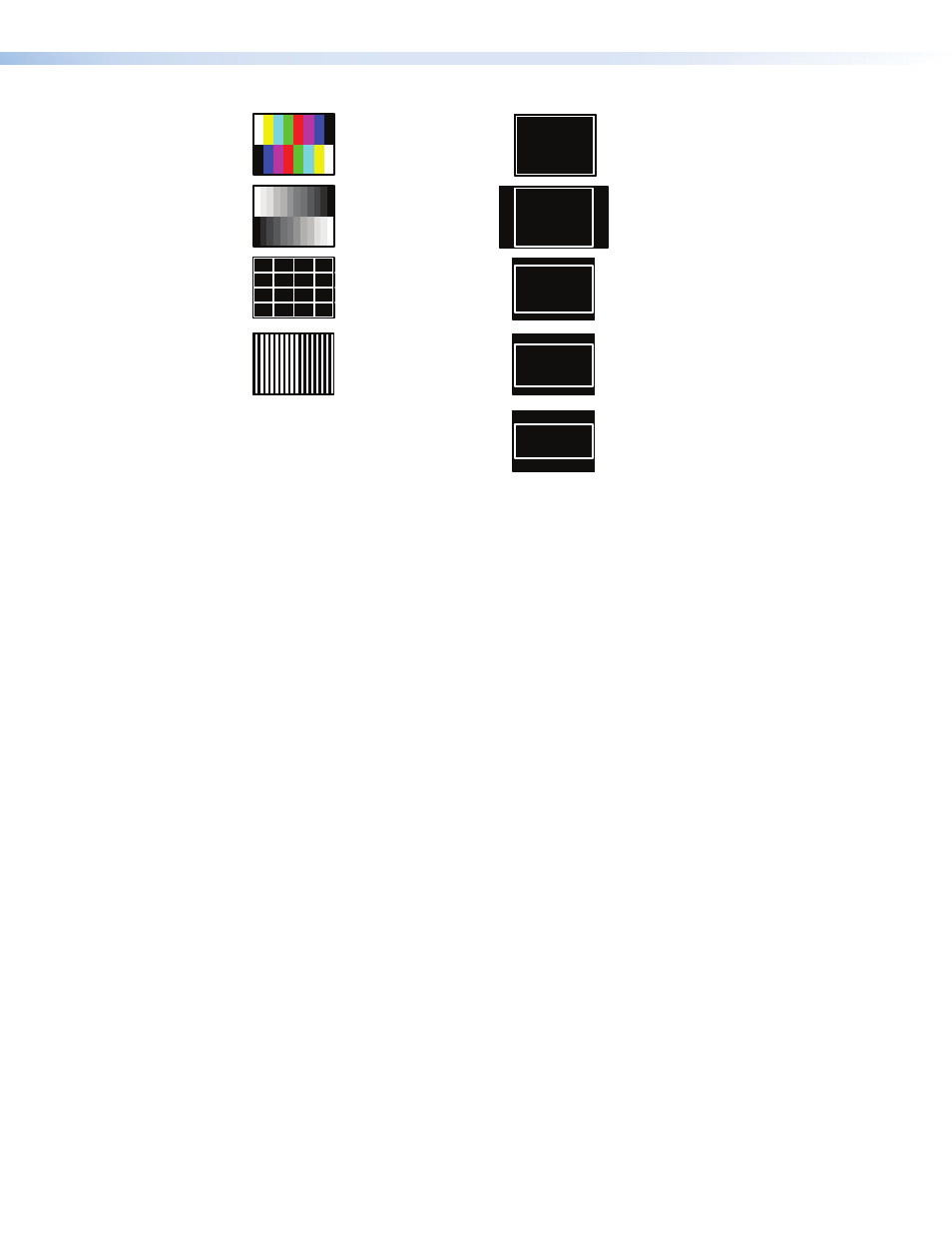

Figure 19. DVC 501 SD Test Patterns
Int. Temp. screen
The Int. Temp. screen shows the current internal temperature of the DVC unit in degrees
Fahrenheit and Celsius. This is an information-only screen; no adjustments can be made
from it.
Exiting the Menu System
To exit the menu system, press the Menu button repeatedly until the EXIT MENU PRESS NEXT
screen appears. Press the Next button to return to the default cycle.
Alternatively, wait until the menu system times out and the default cycle resumes
(approximately 30 seconds).
Resetting
You can perform the following types of reset on the DVC 501 SD:
• Firmware and settings: To reset the DVC to its factory-installed firmware version, press
the front panel Menu button while connecting power to the unit. Perform this reset if
compatibility issues arise with an updated firmware version.
• Settings only: To reset the unit to factory default settings, press and hold the Next
button while applying power to the unit. While the reset is in progress, the LCD screen
displays
SYSTEM RESET . When the reset is complete, the LCD screen displays EXTRON
DVC 501 , and the default cycle starts.
-or-
Enter the
ZXXX SIS command (see the Resetting command in the “Remote
Configuration and Control” section).
