5 DVCM 50 • Quick Start Guide
PRELIMINAR
Y

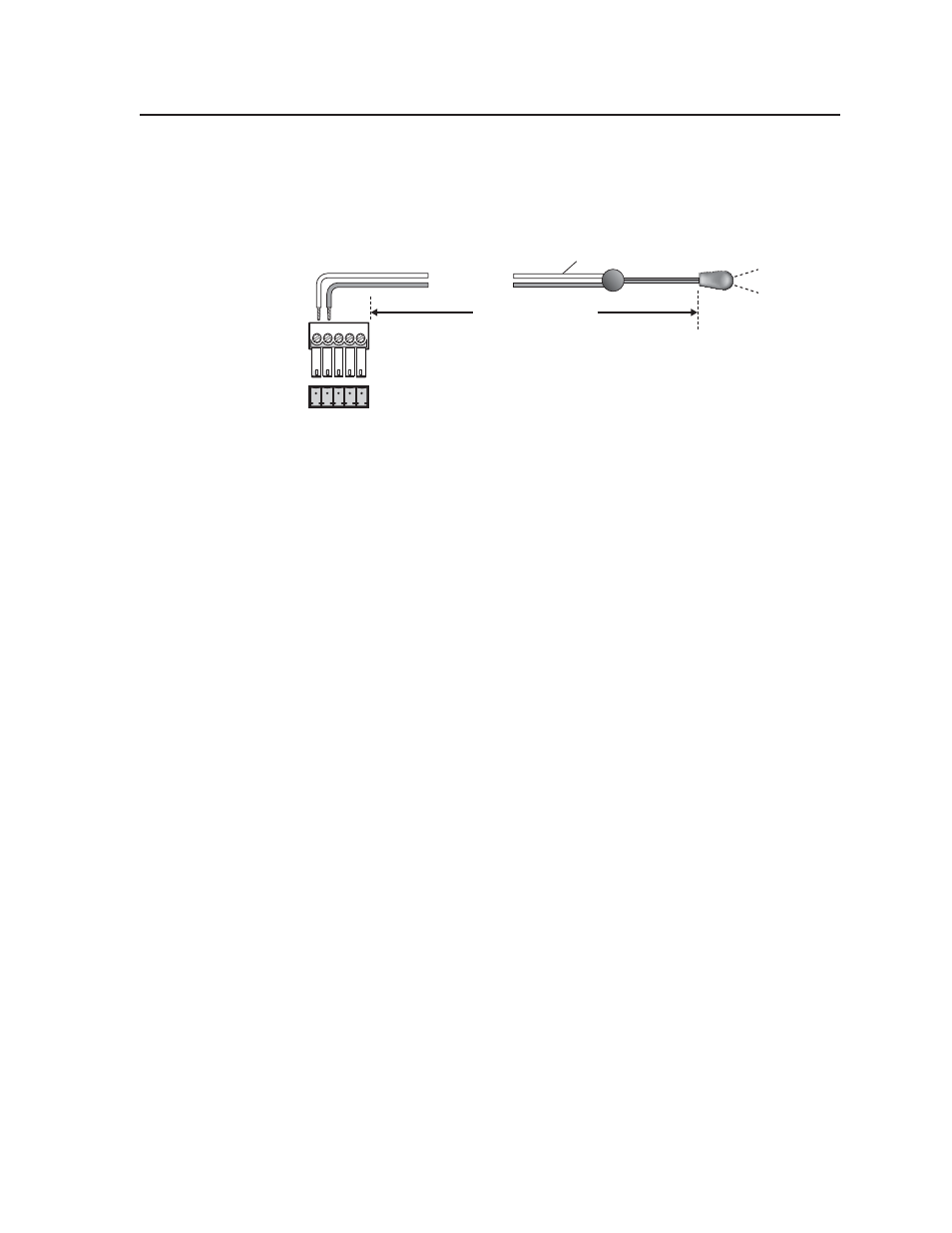

a . Wire the IR control port. To control the DVD or VCR via IR, connect Extron
IR Emitters to the IR Out port of the DVCM control connector. Up to two IR
emitters can be connected via this connector at one time. Wire the connector
as shown in the following illustration.
DVCM 50
IR control
port
For the IR Emitter only
IR
Emitter
White striped wire only
IR
Modulated IR
Ground
100 feet (33.5 m) maximum
Connect up to
2 IR Emitters
(max.).
E D C B A
Connect this end to the IR control
window of the DVD or VCR .
D
E
Wiring for IR control
b . (Optional) Wire the IR Link or IRL 20 to the IR In port , to provide IR remote
control after the DVCM is mounted. Refer to Wiring for IR remote control in
chapter 2 of your DVCM 50 User’s Manual for wiring instructions.
c . (Optional) Wire the power connector. Connect the optional external 12
VDC power supply to the power port. Refer to Wiring the Power connector in
chapter 2 of the DVCM 50 User’s Manual for instructions.
(If you will be using the DVCM with an MLC 104, through which power will
be supplied, you can skip this step.)
Step 3
(Optional) Attach cables to the IR Link, the IR Emitter, and/or the IRL 20.
Step 4
Connect power cords and turn on all the devices, including the DVCM.
Step 5
Confi gure the controller using one of the following methods:
IR learning (See Confi guring using IR learning, later in this guide.)
IR Data Transfer (See Confi guring using IR data transfer, later in this guide.)
Windows ® -based confi guration software (See chapter 5, Software-based
Confi guration and Control, in your DVCM 50 User’s Manual, for the procedures.)
Step 6
Test the system. Press the DVCM’s buttons, and observe the VCR and/or DVD
player’s responses.
Step 7
(Optional) Mount the AAP faceplate or wallplate containing the DVCM 50 to a
wall or furniture.
(Refer to the user documentation provided with the faceplate or
wallplate for mounting procedures.)
•
•
•
