11
DVCM 50 • Quick Start Guide
PRELIMINAR
Y
PRELIMINAR
Y
The data transfer begins when the receiving unit detects the transmitting unit,
and the process takes 15 to 20 seconds to complete. (It may take longer if the
transmitting unit has multiple commands programmed on each button.)
The button indicator LEDs on the rear panel act as data transfer progress
indicators. While data is being transferred, these LEDs on both DVCMs light to
indicate the amount of data that has been transferred.
After approximately 25% of the data has been transferred, the fi rst LED on
the right lights and remains lit. After another 50% has been transferred, the
second LED from the right lights. After 75% of the data is transferred, the
third LED from the right lights, and when the transfer is complete, all four
LEDS are lit.

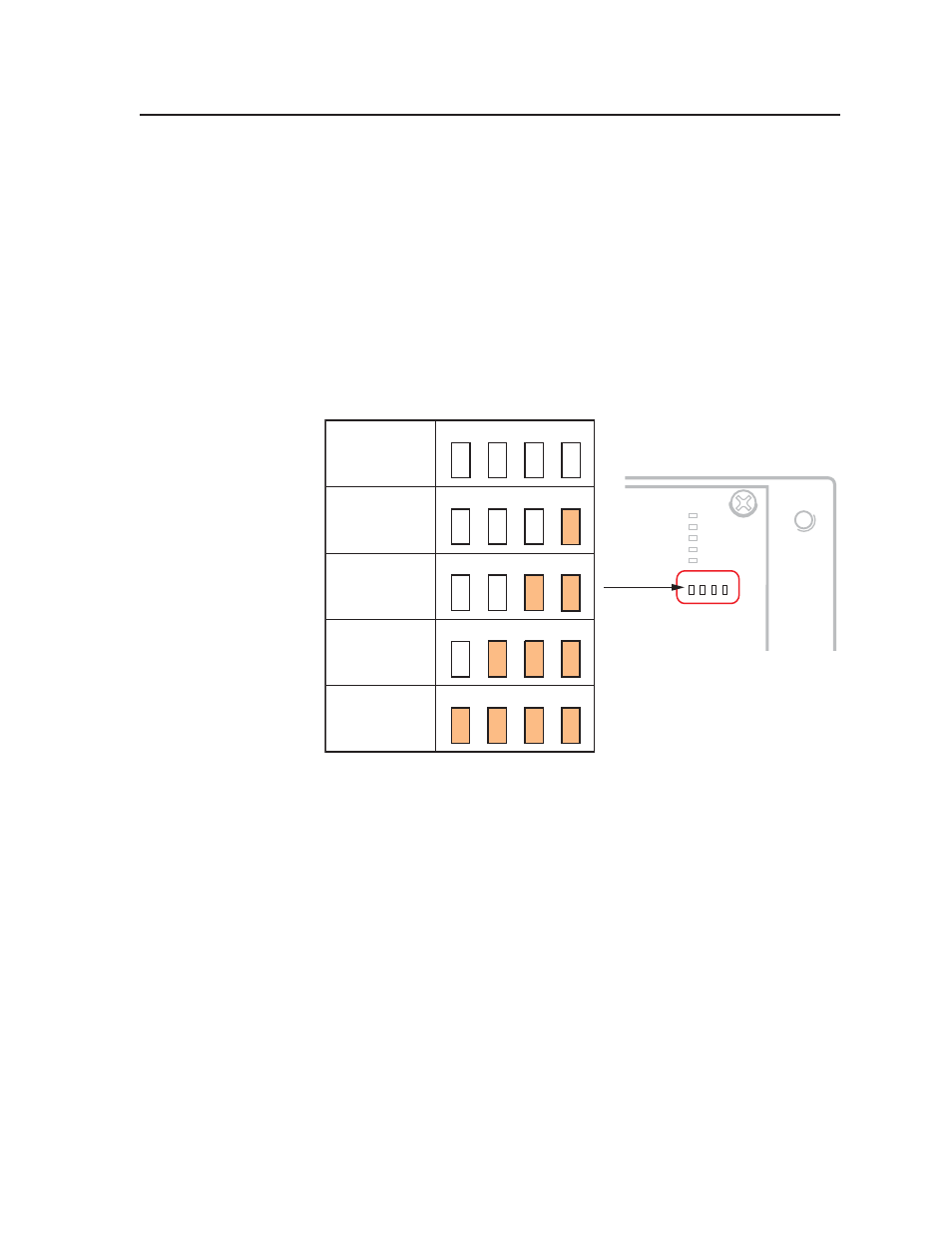

The table below shows how each 25% increment of transferred data is shown
by the button indicator LEDs.
1
2
3
8
4
2
1
E
4
8 4 2 1
8 4 2 1
8 4 2 1
8 4 2 1
8 4 2 1
0% – All LEDs off
100% – All LEDs on
25%
50%
75%
DVCM 50 (Rear Panel)
Button Indicator LEDs
Button indicator LEDs indicating percentage of data transferred
When the transfer is complete, all the button indicator LEDs remain lit.
Proceed to step 5.
If the transmission is interrupted (for example, the two units become
separated so that the IR LEDs are no longer in direct line of sight of each
other), and the conditions necessary for transfer are then restored, the two
units restart the transfer process.
Step 5
When data transfer is complete, do either of the following:
If fi nished confi guring, return confi guration switch #2 on the receiving
DVCM to the Off position.
Press any button on both units to return them
to the state they were in before the transfer. Reinitialize the receiving unit by
pressing any of its front panel buttons.
If you want to repeat the transfer process to confi gure another DVCM 50,
repeat steps 3 and 4 for the unit that is to be confi gured.
Press any button on
the transmitting unit to restart the transfer process.
•
•
