DVCM 50 Control Module Quick Start Guide
DVCM 50 • Quick Start Guide 1
PRELIMINAR
Y
The DVCM 50 DVD/VCR Control Module is a four-space Architectural Adapter
Plate (AAP) module that is used for controlling DVDs and VCRs. It can be used
with an MLC 52 or MLC 104 MediaLink Controller, or as a standalone control
module, sending IR signals directly to the DVD or VCR. The DVCM 50 can be
confi gured by the following methods:
• IR learning from a DVD or VCR remote control
• IR data transfer (beaming) from another DVCM that has been confi gured
• Using IR drivers via the Extron’s Windows ® -based confi guration software
program
The DVCM 50 DVD/VCR Control Module Quick Start Guide is designed to give you
an overview of what you need to do to set up and operate your DVCM 50, and to
help you quickly get started using it. For more details regarding the installation,
operation, and confi guration of the DVCM 50, refer to the DVCM 50 User’s Manual,
provided on CD with your DVCM.
Hardware overview
The following sections describe the DVCM 50 components located on the front and
rear panels of the control module.

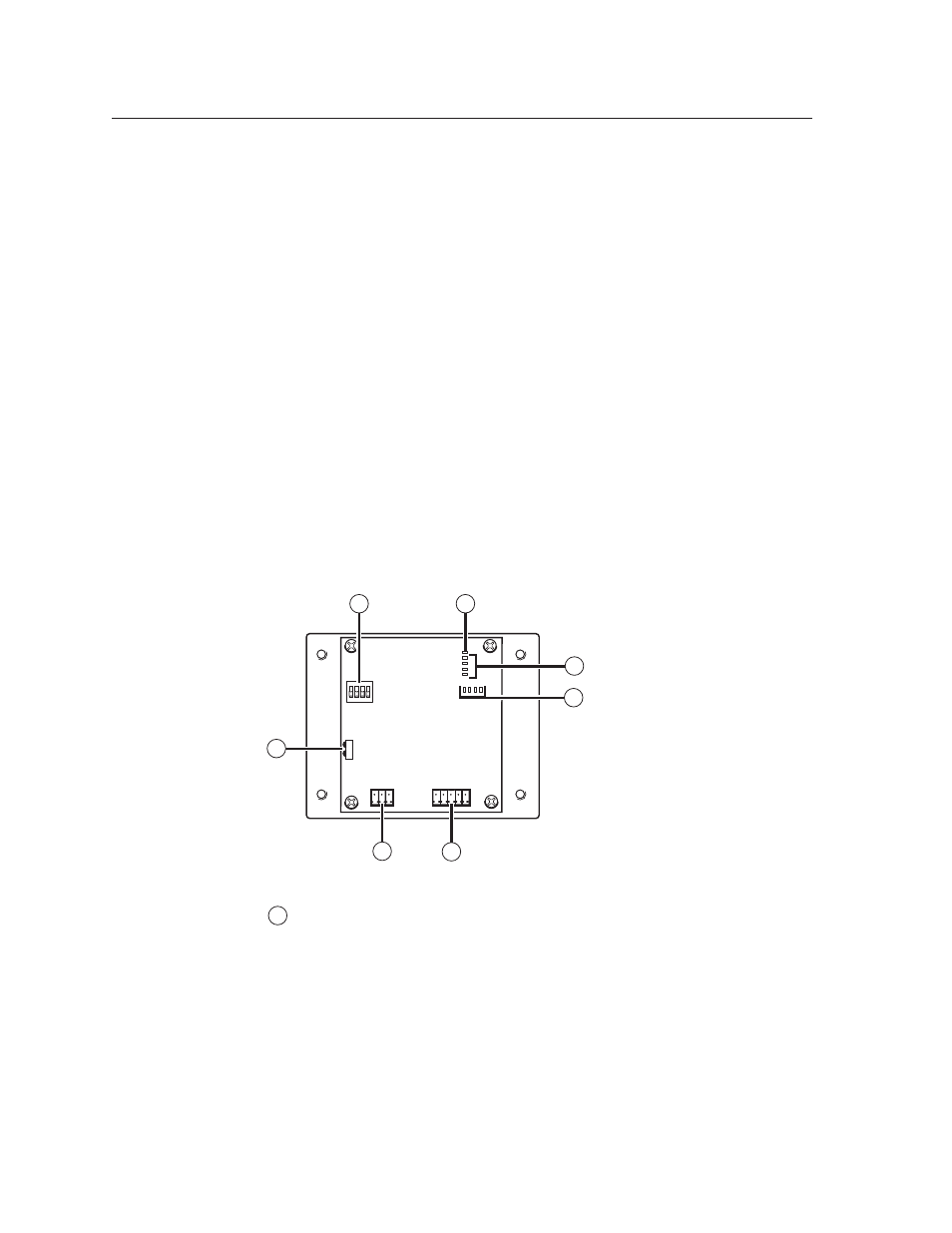

Rear panel features
5
4
1
1
2
3
8 4 2 1
E
4
ON
2 3 4
IR OUT GND IR IN GND + 12V GND Rx Tx
1
7
6
3
2
DVCM 50 rear panel
1 Confi guration switches — These DIP switches place the DVCM in IR
learning mode or data transfer mode.
• Switch 1: Enables IR learning.
• Switch 2: Enables data transfer, such as cloning the DVCM’s
confi guration onto another DVCM 50.
• Switch 3: When this switch is placed in the On (up) position, commands
are issued only once when a button is pressed and held. If the switch
is set to Off (down), commands are issued repeatedly for as long as the
button is held.
Switch 4 : Enables MLC 104 input mapping. •
