STANDARD MODEL FEATURES
!
Data logging to a standard SD Card.
!
4-20 mA output signal
!
0-1000 Hz digital frequency output signal
!
LED status indicator lights
DISPLAY AND USER ACCESS MODEL DISTINCTIONS
OPTIONAL COMMUNICATIONS PACKAGE WITH CUSTOM PC SOFTWARE
Communications Package that includes circuitry,
connector panel and custom PC software. When
software, any model can perform the
functions described in this manual
including program editing and data logging downloads directly into the PC.
OPTIONAL PROCESS CONTROL RELAY BOARD
Any model can be equipped with a
connected to a computer running the
Model 3
Any model can be equipped with a Process Control Relay Package that includes three
independently programmable 10 amp relays. However, relay programming requires the
Model 3 programming features or the Communications Software package to function.
Models 1 and 2 cannot access the relay functions unless connected to the communications
Software.
1.7
Standard
Model
Features
and Options

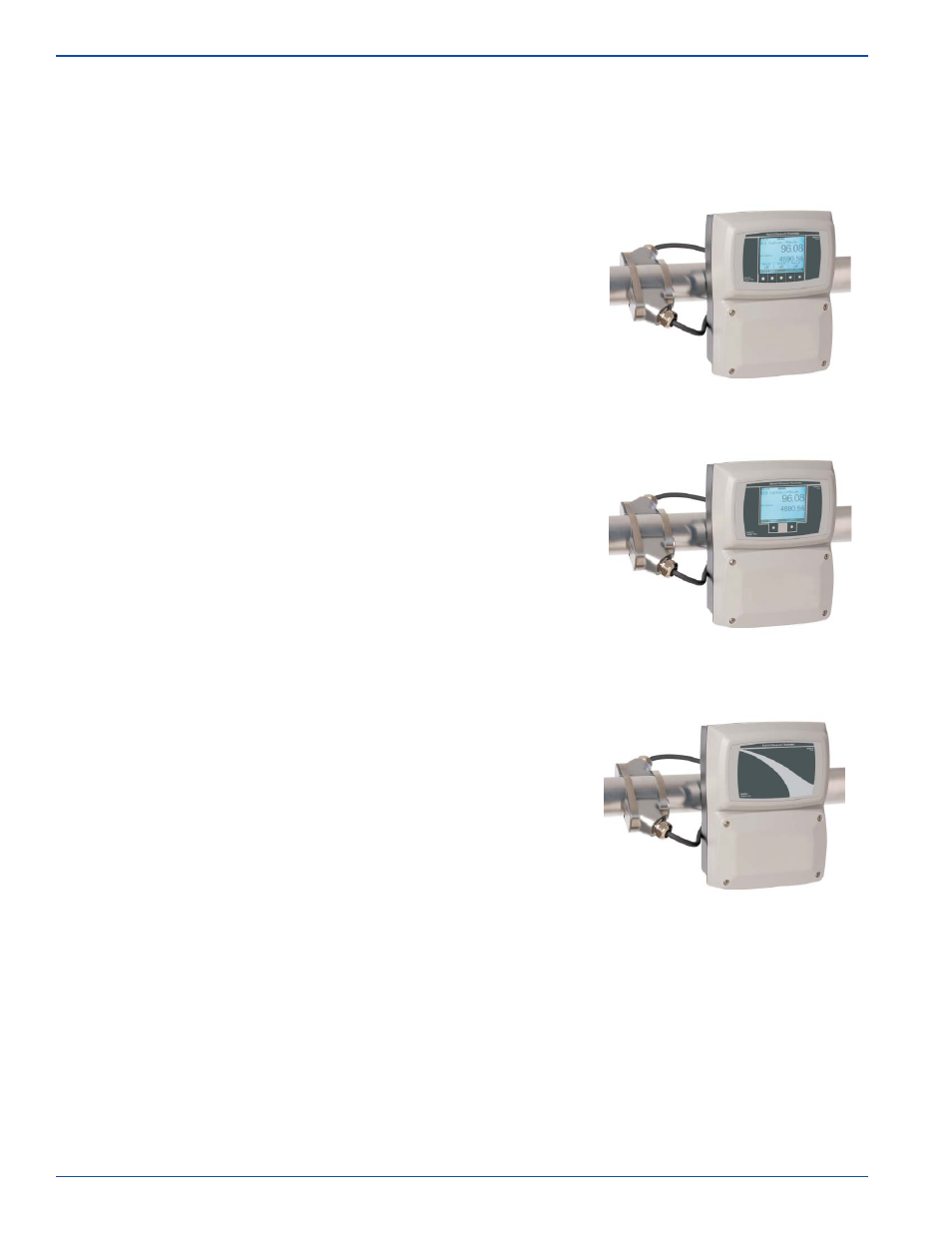

Model 3 includes a full featured display with a 5
button touch pad. The start-up process and the zero
calibration can be performed by pressing the proper
buttons on the touch pad.
Model 2 includes a basic display with a 2 button
touch pad. The start-up process and the zero
calibration can be performed by removing the front
cover plate and pressing the setup button located
on the circuit board.
Note that the
Model 1 has no display or touch pad. The start-up
process and the zero calibration can be performed
by removing the front cover plate and pressing the
setup button located on the circuit board.
Note that the start-up process, the zero calibration,
and all other functions can also be performed by the
optional remote PC software application.
start-up process, the zero calibration,
and all other functions can also be performed by the
optional remote PC software application.
Note that the start-up process, the zero calibration,
and all other functions can also be performed by the
optional remote PC software application.
