Page 22
From the Setup mode, a zero calibration can be performed or, if equipped with either the
full function display (Model 3) or the optional Communications software, the Setup Root
Menu system can be entered and the meter can be configured.
The flowmeter indicates that it is in the Setup Mode as follows:
The flowmeter will remain in the Setup Mode until one of the following actions occur:
1) A Configuration Set is activated from the Setup Root Menu.
Either t
2) The user “escapes” from this state.
The user can escape to the Startup state by:
a) Hold the SETUP button on the motherboard for three seconds.
b) Tap the SETUP button on the motherboard once (resulting in entering the
Transducer Positioning state) and tap again (resulting in entering the Startup
state).
c) Press the ESC button on the
Note that if the user escapes, the currently active configuration set will re-activate.
3) Five minutes passes without user action.
The operations that can
be performed in the Setup Root Menu are fully described in section 5.0.
The Setup Mode can be entered in two ways:
1) Tap the SETUP button on the motherboard, the display touch-pad, or on the user PC
Communications Software.
2) Flip the Doppler/Transit Time switch.
Note: the meter must be in the Startup State or in the Run Mode to enter the Setup Mode.
he full function display (Model 3) or the optional Communications software is
required for this action.
full function display (Model 3) or on the optional
Communications software.
4.4
Setup
(Configuration)
Mode

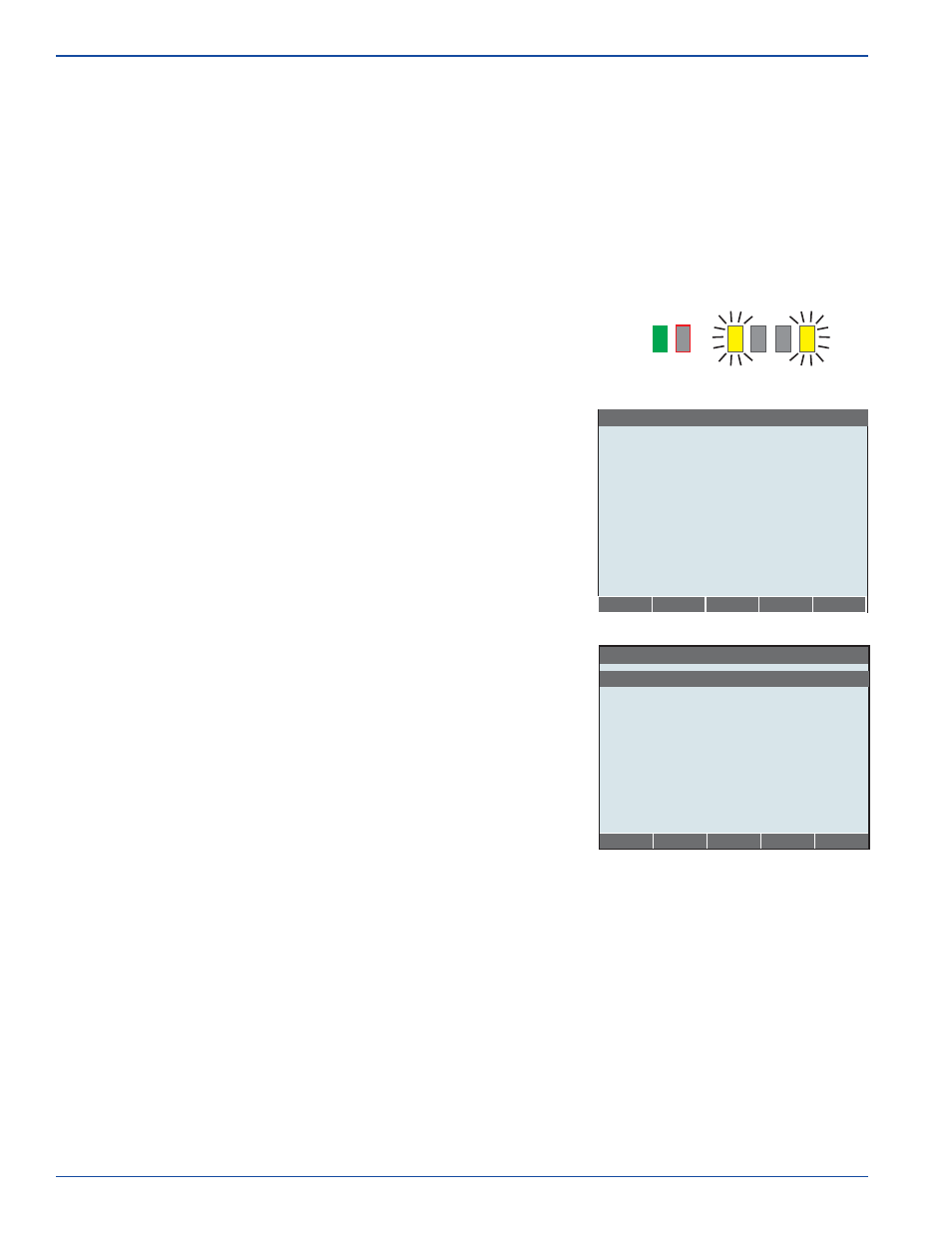

Model 1: two outer yellow LEDs flash at 1
Hz.
Model 2: as for Model 1, plus the display
screen indicates:
Setup Mode...
Model 3: as for Model 2, plus the Setup
Root Menu appears.
SETUP MODE
Setup …
Information Screen
Firmware Version, A01.00.00
MODEL 2
ENTER Ç ESC È
Setup Root Menu
Manage Configuration Sets
Global Configuration
MODEL 3
Ultrasonic Flowmeter
