Setting of current outputs
The following steps describe operation with the 2020 XT system. With
the System 182 XT, the outputs of the DIQ/CR3 can be found directly
under the Settings menu (see system operating manual of the DIQ/
S 182 XT).

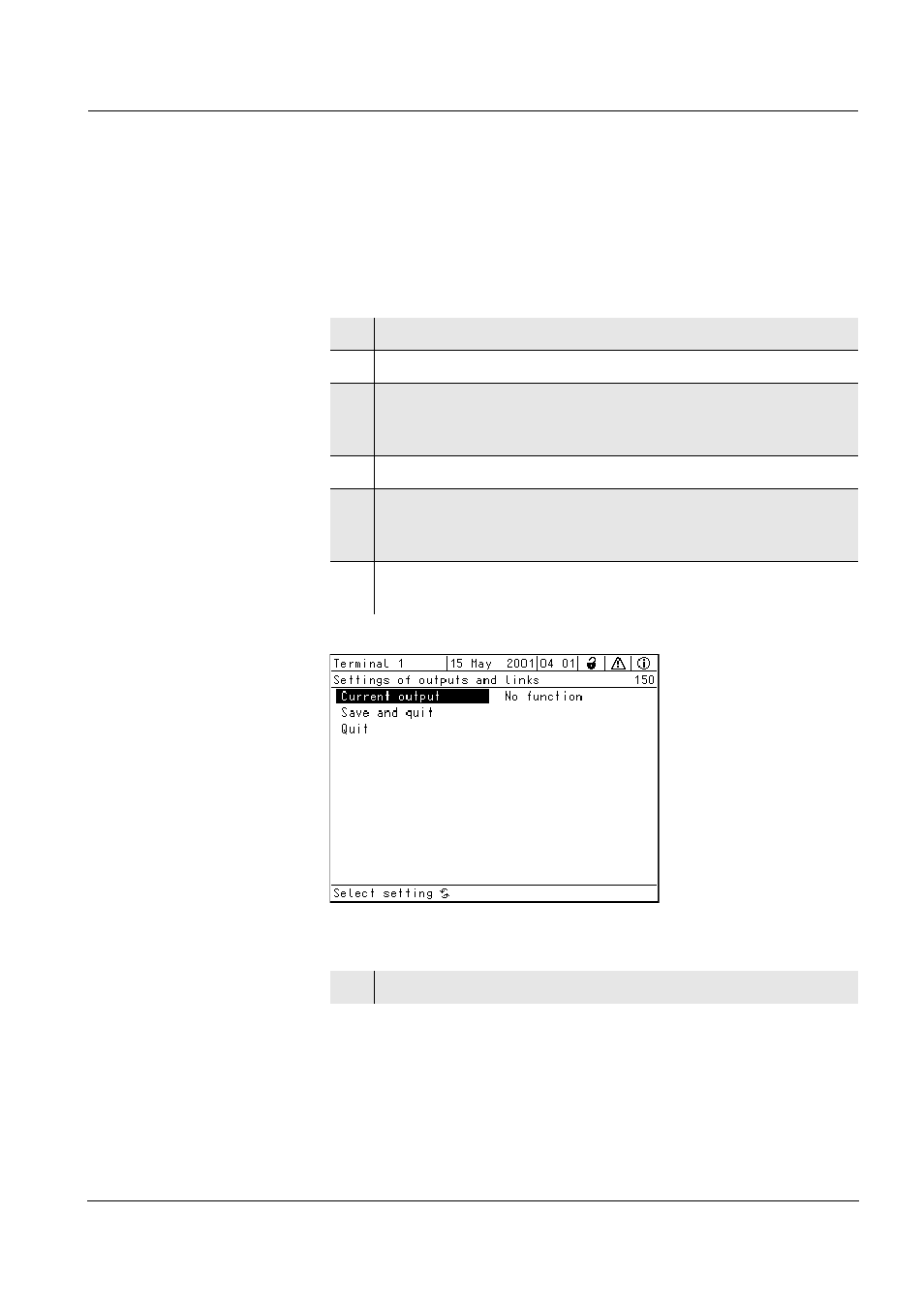

Fig. 4-17 150 - Settings of outputs and links
1
Call up the measured value display with
m
.
2
Open the Settings menu with
s
.
3
Highlight the Settings of outputs and links menu item with
d
and confirm with
g
. The Settings of outputs and links display
appears.
4
Highlight the Feature column with
d
and confirm with
g
.
5
Highlight a line for a current output (Cx) in the Feature column
with
d
and confirm with
g
.
The Settings of outputs and links display opens.
6
Highlight the Current output menu item with
d
and confirm
with
g
.
7
Select a function with
d
and confirm with
g
.
