System Setup Section 3
After the 4-20 mA channels have been configured to your specifications, press Esc to return to
the Main menu.
3.3.5 MODBUS SETUP
Please see section 5.1 for a more complete description of the Modbus system implementation.
To begin setup of the Modbus, highlight the Modbus setup option on the Main menu and press
Enter.

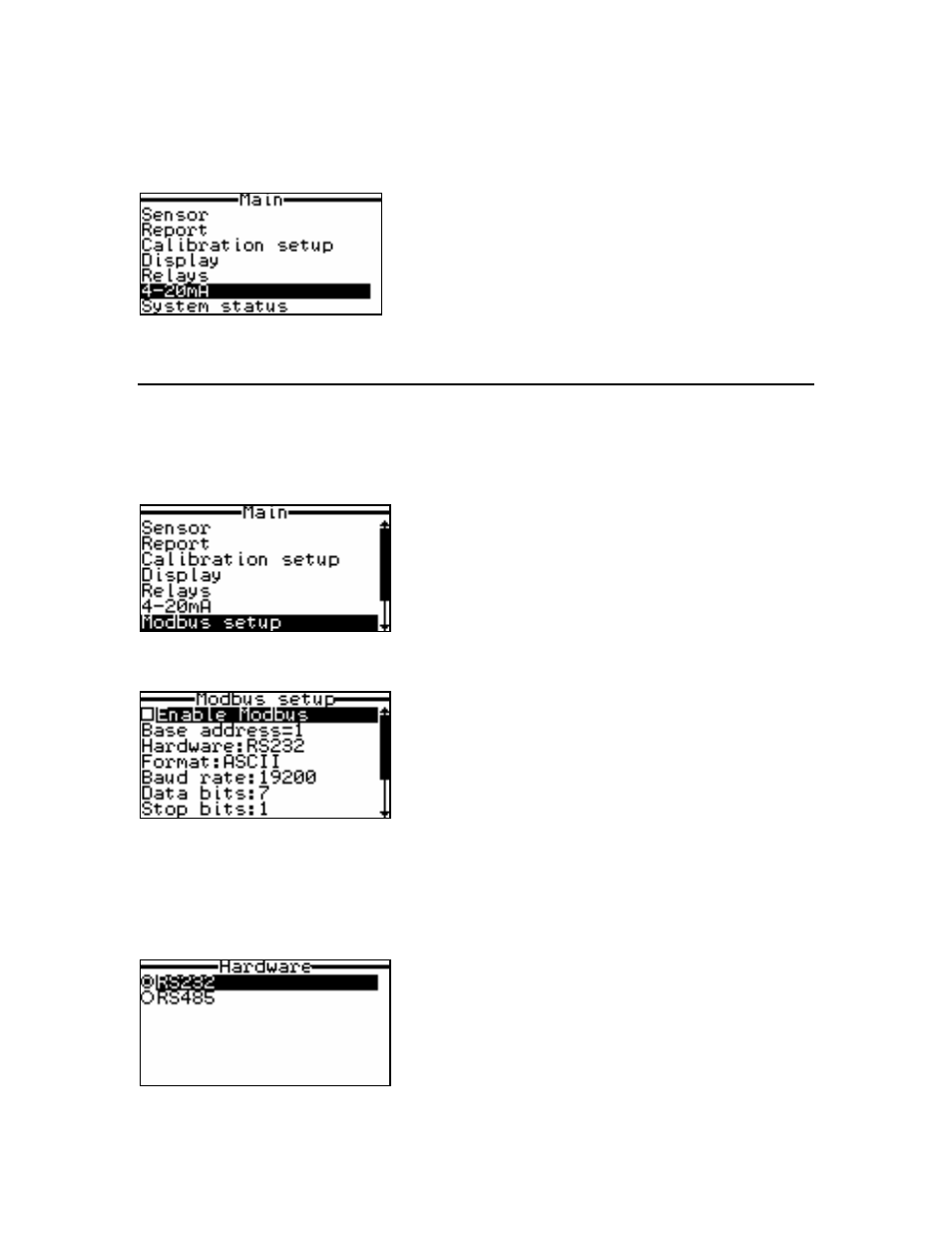

The following screen will appear.
Use the arrow keys to highlight Base address and press Enter to select it. This will activate a
cursor which is used to change the 6500 Modbus base address. To increment the address, use the
↑↓ arrow keys. When the desired addressed is reached, press Enter to set it.
Now highlight Hardware and press Enter to select it. The following submenu will appear.
YSI Incorporated 6500 Environmental Process Monitor 32
