Installation Section 2
RAIL MOUNT OPTION
The sonde can be mounted in a number of different configurations, but a rail mount with a
fabricated bracket is recommended. A rail mount kit is also available from YSI, #6511 for 600
series sondes, and 6512 for 6820/6920 sondes. See Appendix D, Accessories for more
information.
Figures 4 and 5 show the two common connection layouts and short and long-range wiring of the
monitor to the sonde.

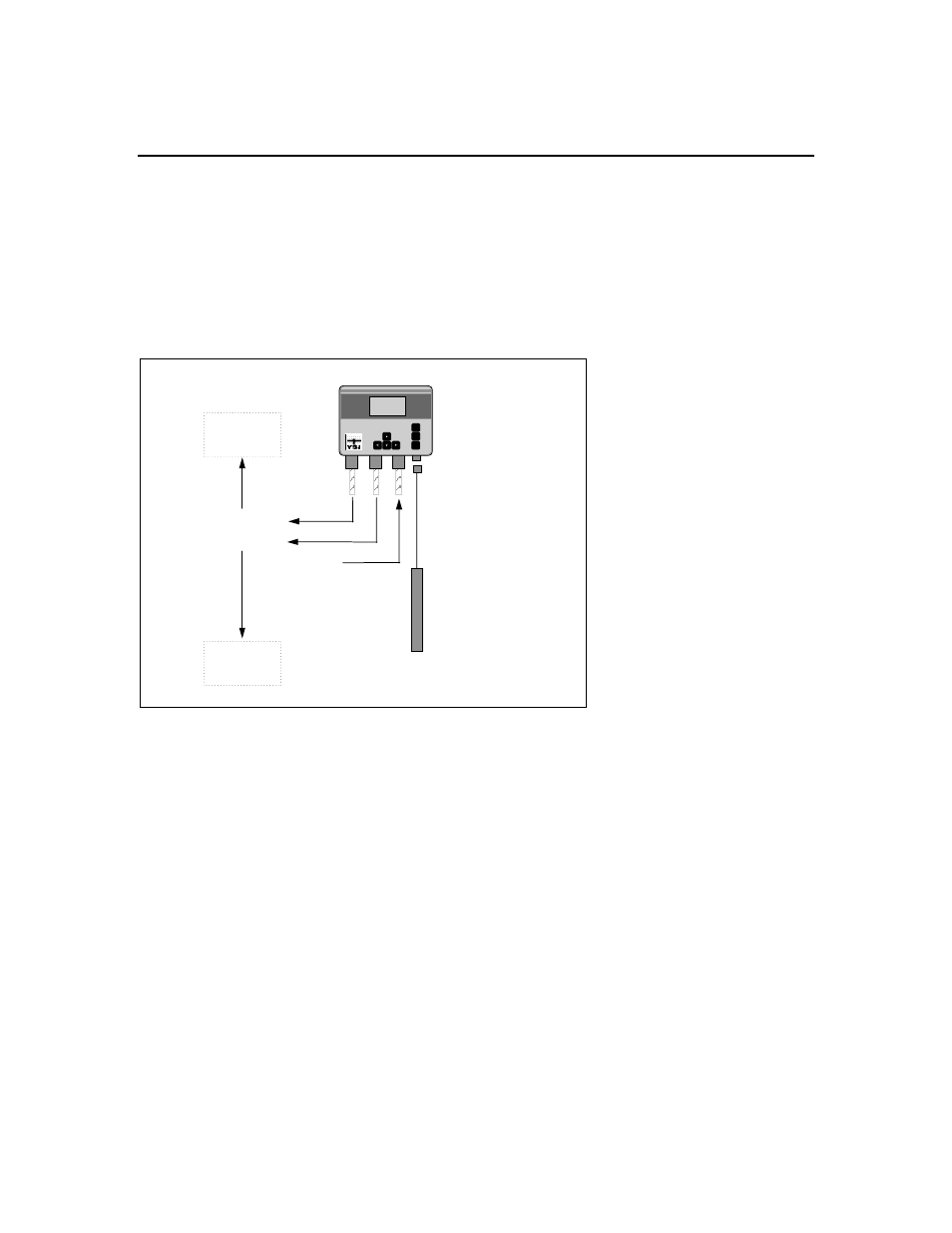

Figure 4 Direct connection
Enter
Esc
Cal
6500 6500
EN VIRO N MEN TAL EN VIRO N MEN TAL MO N ITO RIN G MO N ITO RIN G SYSTEM SYSTEM
21.2 Temp
7.35 DO
6.53 pH
4-20 mA out
Relay output
AC power in
sonde cable
w/ MS-8
Stream
Sonde
Alarms
SCADA
YSI Incorporated 6500 Environmental Process Monitor 8
