12

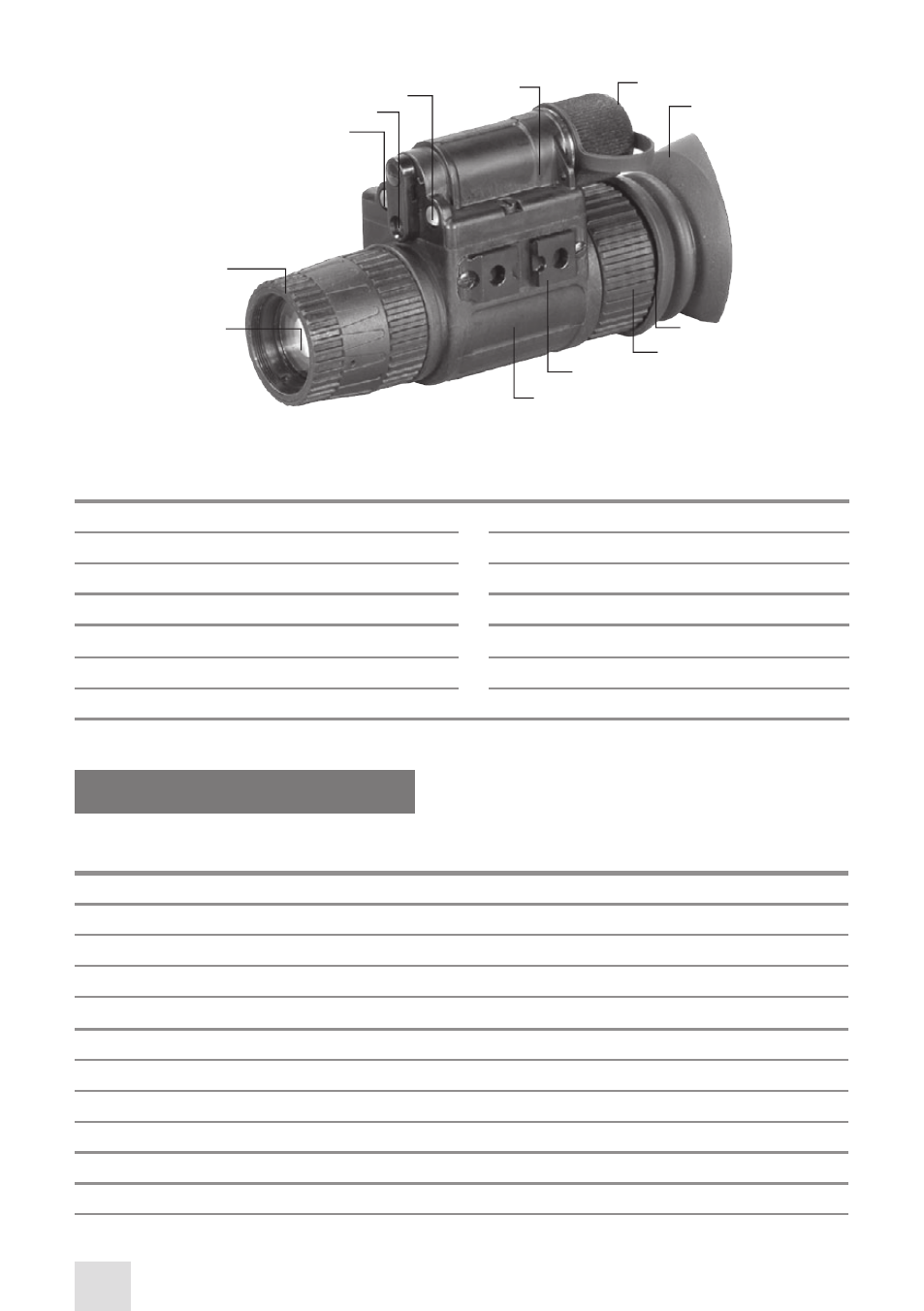

FIGURE 2-1. N-14 NIGHT VISION MONOCULAR
11
8
9
4
5
6
2
10
3
1
7
12
TABLE 2-1. N-14 SYSTEM DESCRIPTION
ITEM DESCRIPTION ITEM DESCRIPTION
1 Body 7 Battery Compartment
2 Rail 8 Photo Receiver
3 Eyepiece Ring 9 Pivotal Focusing Lens
4 Eyepiece 10 IR Illuminator
5 Eye-cup 11 Focus Ring
6 Battery Cap 12 Lens
2.2 SPECIFICATIONS
TABLE 2-2. MECHANICAL DATA
EqUIPMENT ITEM DIMENSIONS, MM (L X W X H)/(DIA X L) WEIGHT, G
N-14 Night Vision Monocular 120х49х69 340
Flip-up Helmet Mount* 120х170х150 280
Goggle Kit* 280х180х80 295
Dual Bridge* 54x22x24 34
Picatinny/ Mil 1913 Weapon Mount Adapter* 110х59х13 58
Scope Adapter* 120х61х72 150
Sacrificial Window* Dia 30х7 5
Demist Shield* Dia 8.5х5.5 4
Camera Adapter* Dia 60х22 52
Dovetail to Weaver Transfer Piece* 38х21х7.5 8
