The serial port module is purchased separately, P5bv-r serial port2 (com2) connector, Com2 – Asus RS120-E5/PA2 User Manual
Page 61: Usb34
ASUS RS120-E5/PA2
4-11

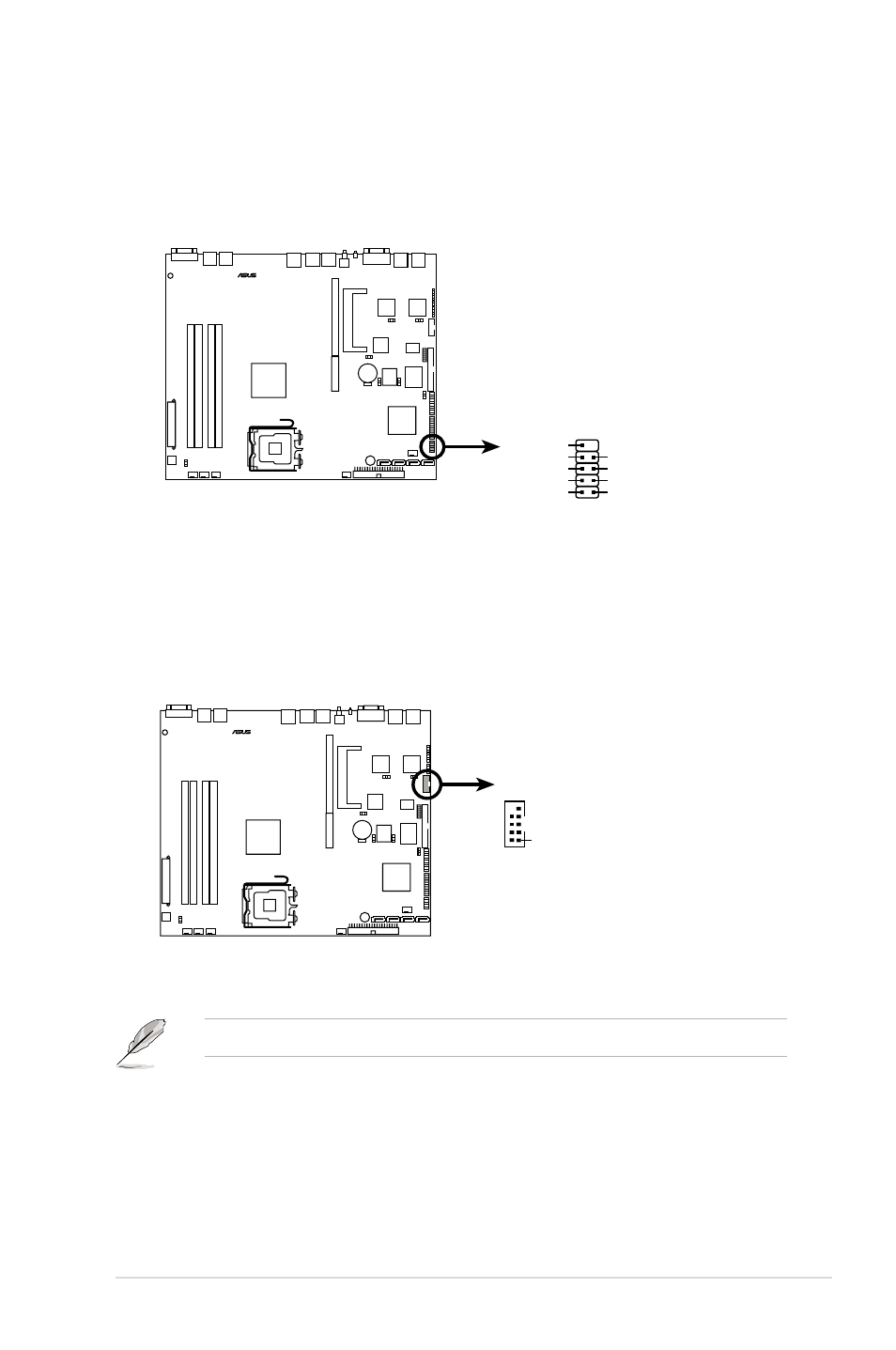

6.. USB.port.connector.(10-1.pin.USB34)
By default this connects to the front panel to support two USB 2.0 ports.
7.. Serial.port.connector.(10-1.pin.COM2)
This connector is for a serial (COM) port. Connect the serial port module
cable to this connector, then install the module to a slot opening at the back
of the system chassis.
The serial port module is purchased separately.
P5BV-R
®
P5BV-R
Serial port2 (COM2) connector
PIN 1
COM2
P5BV-R
®
P5BV-R.USB.2.0.connectors
USB+5V
PIN1
USB_P3-
USB_P3+
GND
USB+5V
USB_P4-
USB _P4+
GND
NC
USB34
