Device.fan – Asus RS120-E5/PA2 User Manual

Page 40

Chapter 2: Hardware setup

2-22

To reinstall the device fan:
1. Insert the fan to the fan cage. The

airflow directional arrow on the fan

side should point towards the rear

panel.

2. Connect the device fan cable to the

fan connector on the motherboard.

2.8.3.

Device.fan

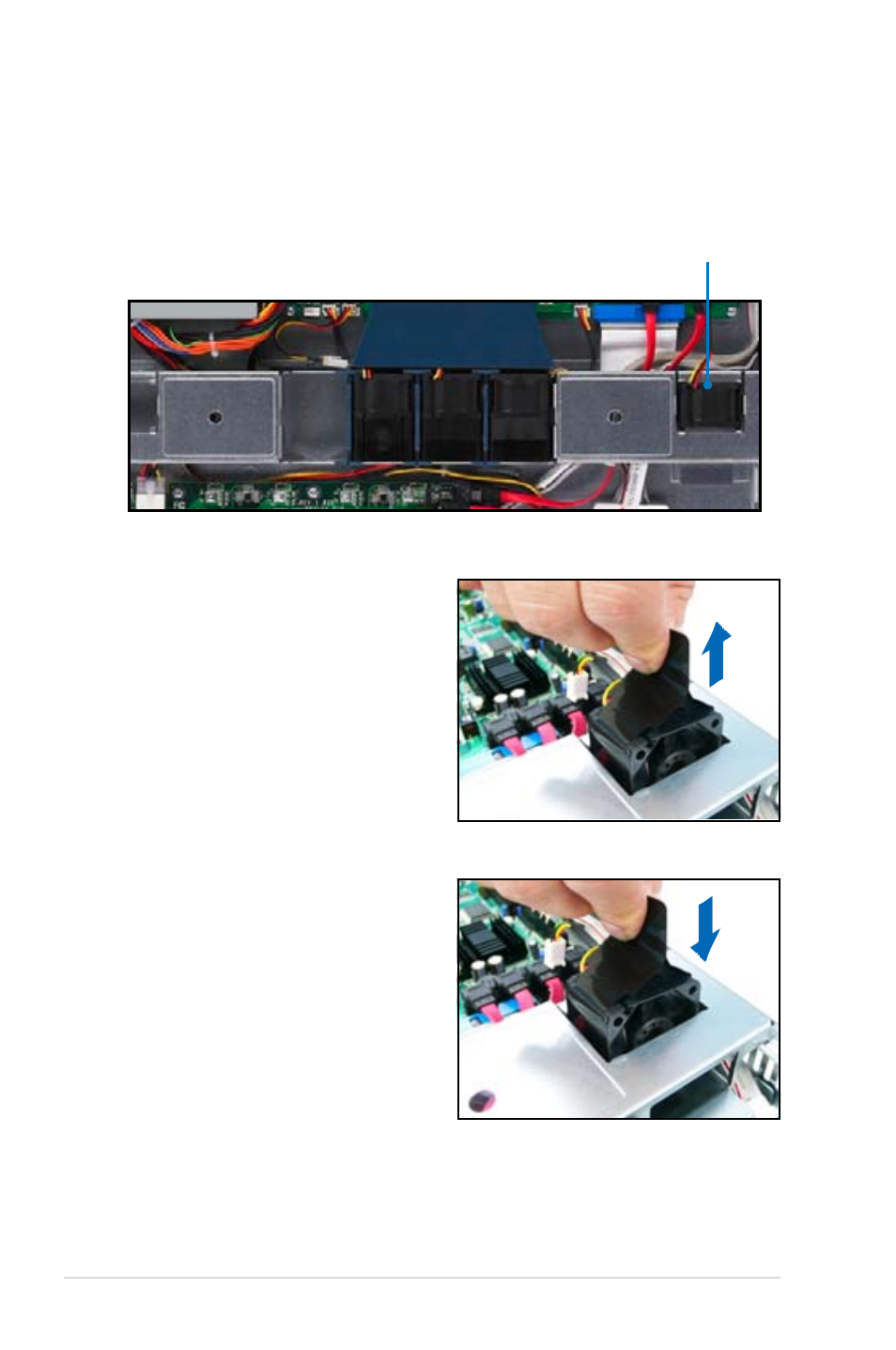

The system comes with one 28 mm * 40 mm (15500 rpm) device fan.
Refer to the illustration below for location of the device fans.

To uninstall the device fan:
1. Disconnect the device fan

cable from the connector on the

motherboard.

2. Lift the fan, then set aside.

28 mm * 40 mm device fan
