Chapter 1: Product introduction 1-6

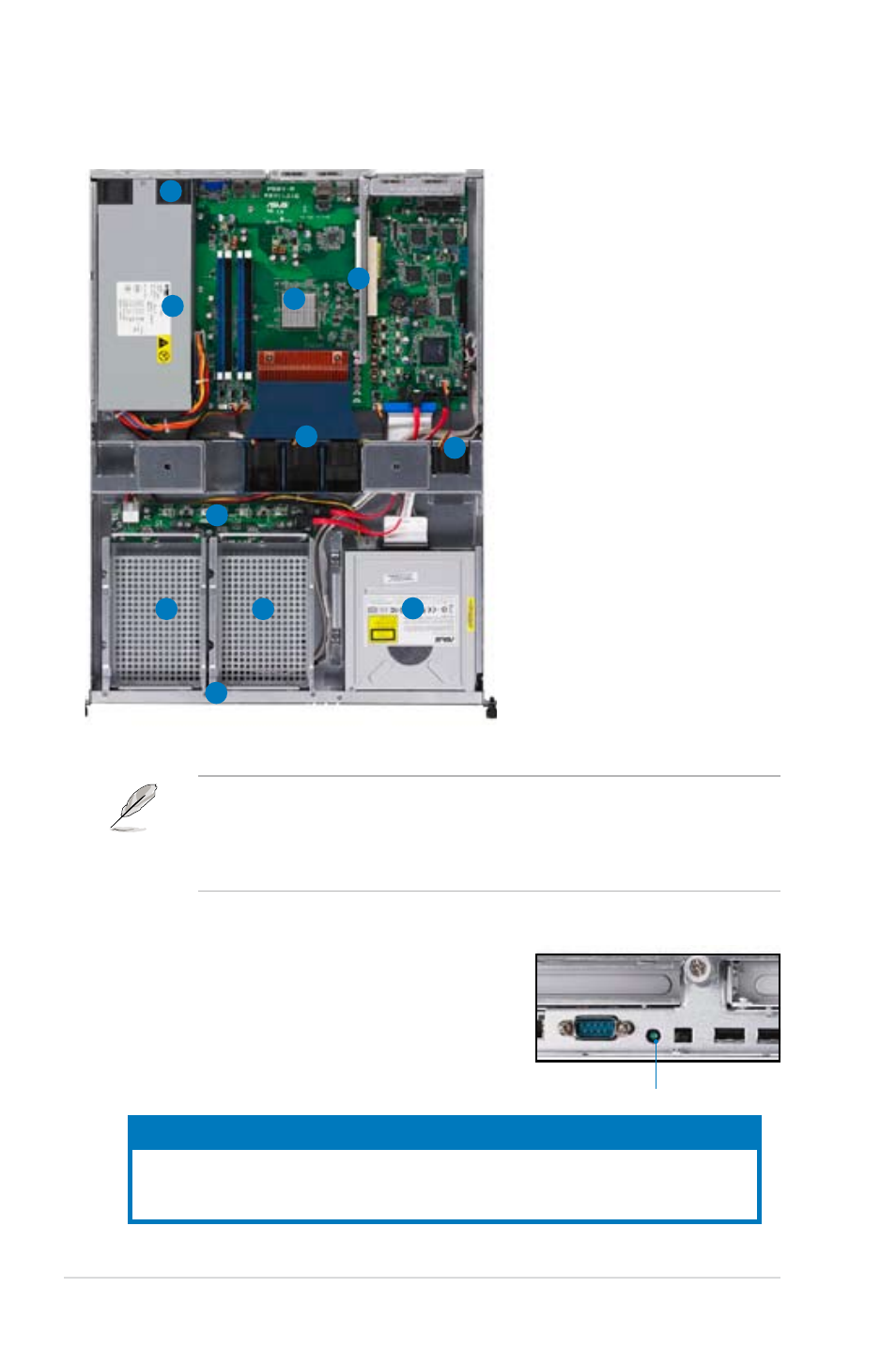

1.5 Internal features
The barebone server includes the basic components as shown.
1. PCI-E x8 and PCI-E x4 riser
card bracket
2. Power fans
3. ASUS P5BV-R motherboard
4. Power supply
5. Device fan (x 1)
6. System fans (x 3)
7. SATA backplane
8. Hot-swap HDD tray 1 -
Connects to SATA1 port
(Port0)
9. Hot-swap HDD tray 2 -
Connects to SATA2 port
(Port1)
10. Front I/O board (hidden)
11. Optical drive
• The barebone server does not include a floppy disk drive. Connect a USB
floppy disk drive to any of the USB ports on the front or rear panel if you
need to use a floppy disk.
• Only ASUS CD/DVD-ROMs fit the optical drive bay.
2
1.6 LED information
1.6.1. Rear.panel.LEDs
LED Display status Description
Location LED OFF Normal status
ON Location switch is pressed
(Press the location switch again to turn off)
4
3
1
5
6
7
8 11 9
10
Location.LED
