ASUS RS120-E5/PA2 1-5

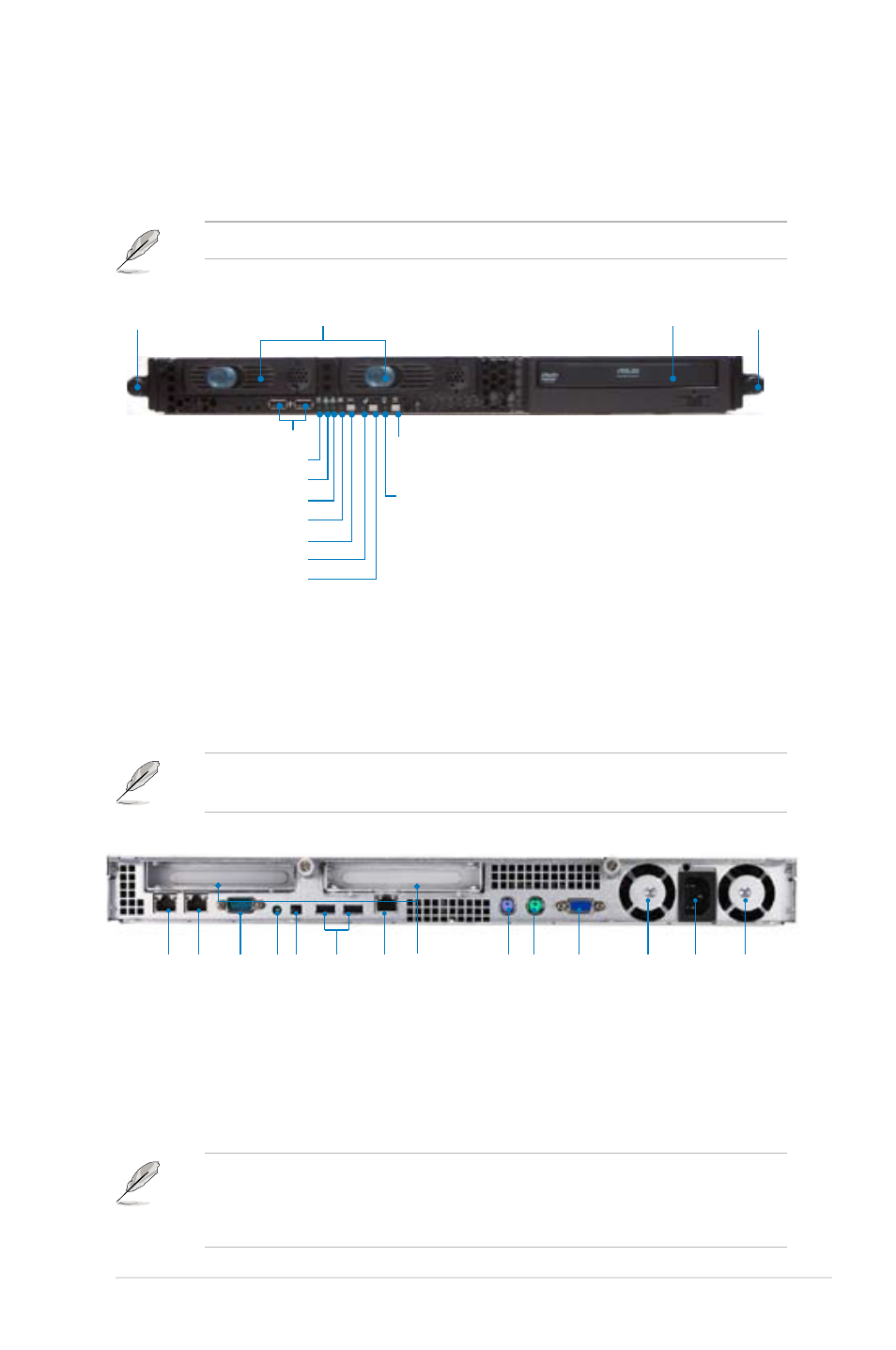

1.3 Front panel features
The barebone server displays a simple yet stylish front panel with easily accessible
features. The power and reset buttons, LED indicators, location switch, optical
drive, and two USB ports are located on the front panel.
Refer to section 1.6.2..Front.panel.LEDs for the LED descriptions.
Hot-swap.HDD.bays Rack.screw Rack.screw
.USB.ports
LAN2.LED
HDD.Access.LED
LAN1.LED
Message.LED
Power.
button
Power.LED
Location.switch
Reset.button
Location.LED
Optical.drive
1.4 Rear panel features
The rear panel includes the expansion slots, system power socket, and rear fans.
The middle part includes the I/O shield with openings for the rear panel connectors
on the motherboard.
The ports for the PS/2 keyboard, PS/2 mouse, USB, VGA, and Gigabit LAN do
not appear on the rear panel if motherboard is not present.
Power
.fan
PS/2
.keyboard
.port
PS/2
.mouse
.port
AC
.power
.socket
USB
.ports LAN
.port1 Serial
.port
VGA
.port Expansion
.slot
LAN
.port2
• Refer to section 1.6.1..Rear.panel.LEDs for the LED descriptions.
• The LAN port for ASMB3 iKVM functions only when you install ASMB3
iKVM management card. Remove the mylar on the LAN port before using.
Power
.fan
Locator
.LED
Locator
.switch
LAN
.port
.for
.iKVM
