2.1.2.

Installing.the.cover

1. Position the cover on top of the chassis with the thumbscrews on the rear,

and leave a gap of about half an inch from the front panel.

2. Make sure that the pegs on the cover (two on each side) are aligned to the

grooves on the chassis.

3. Slide the cover toward the front until it snaps in place.
4. Tighten the thumbscrews on the rear to secure the cover.

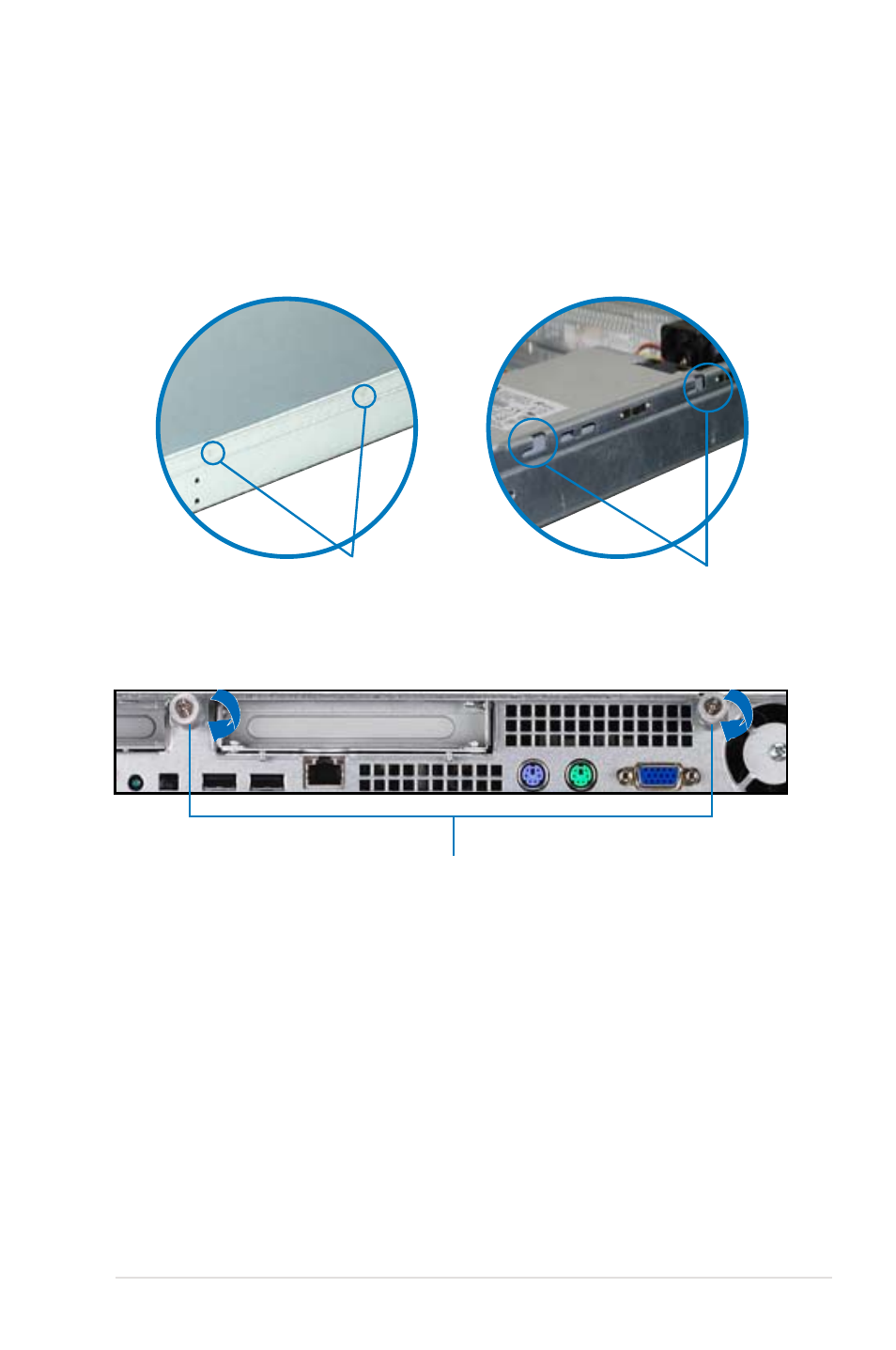

Pegs inside

Grooves

Thumbscrews
