10. TPM connector (20-1 pin TPM)

This connector supports a Trusted Platform Module (TPM) system, which can
securely store keys, digital certificates, passwords, and data. A TPM system
also helps enhance network security, protects digital identities, and ensures
platform integrity. This connector can also serve for G.P. Diagnosis card
installtion.

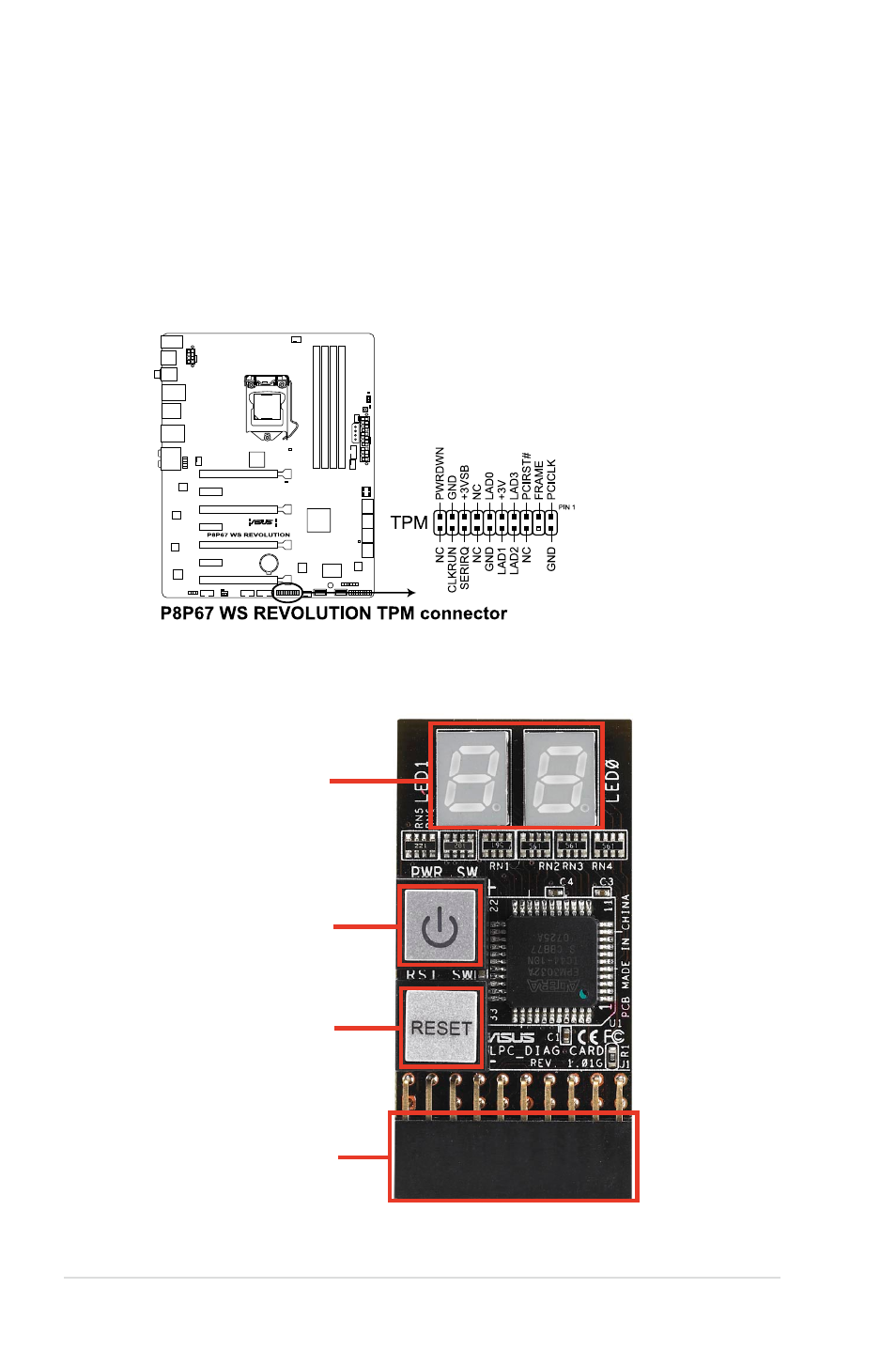

G.P. Diagnosis card layout

LED 0 and 1

Card connector

Power Switch. Press

to turn ON or OFF the

computer.

Reset Button.

Press to restart the

computer.
