2.3.3

CPU heatsink and fan assembly installation

Apply the Thermal Interface
Material to the CPU heatsink
and CPU before you install the
heatsink and fan if necessary.

2

B

B

A

A

1

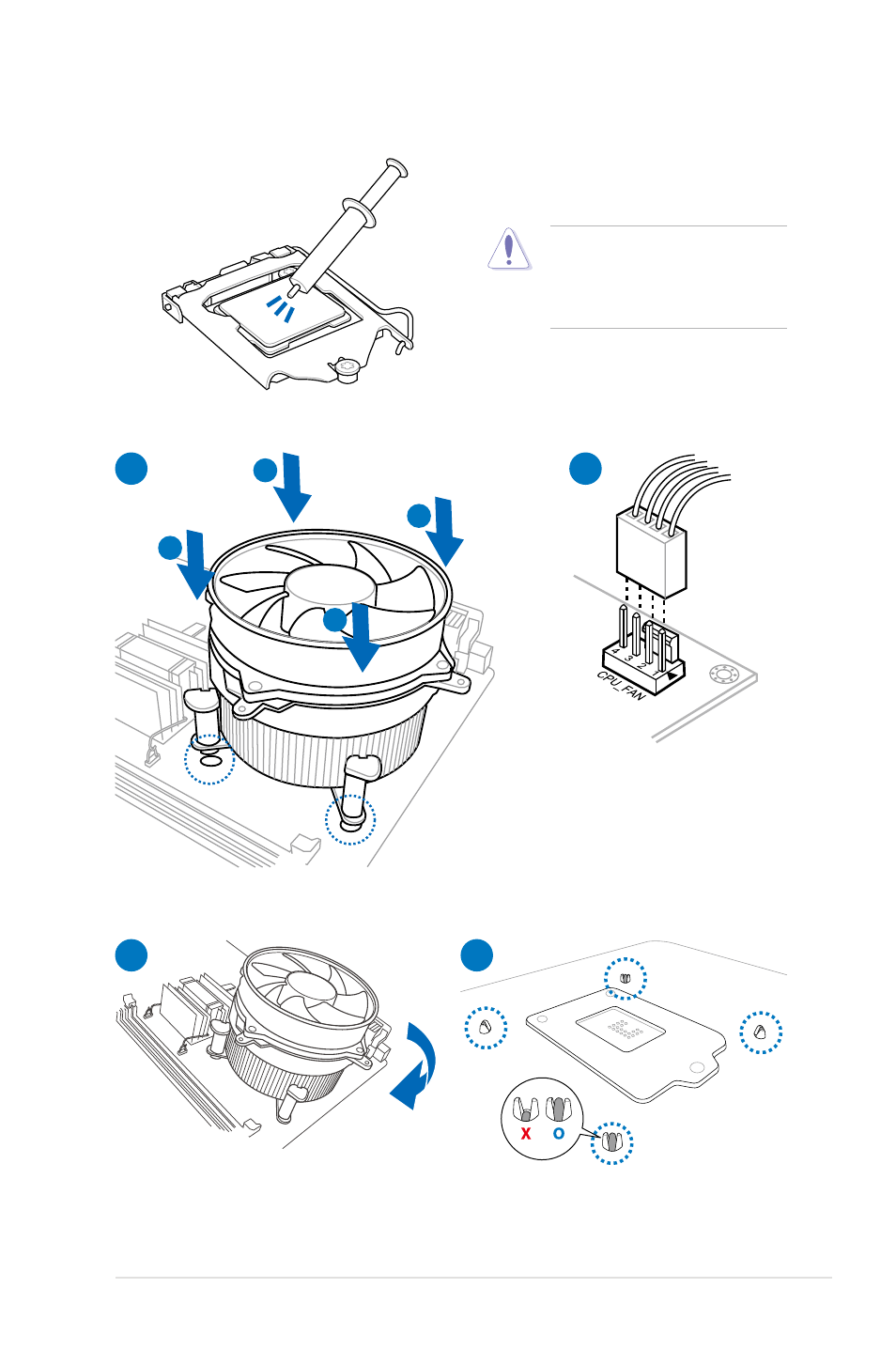

To install the CPU heatsink and fan assembly

3

4

ASUS P8P67 WS Revolution

2-31
