EFI BIOS Utility - Advanced Mode
3.2.2 Advanced Mode
The Advanced Mode provides advanced options for experienced end-users to
configure the BIOS settings. The figure below shows an example of the Advanced

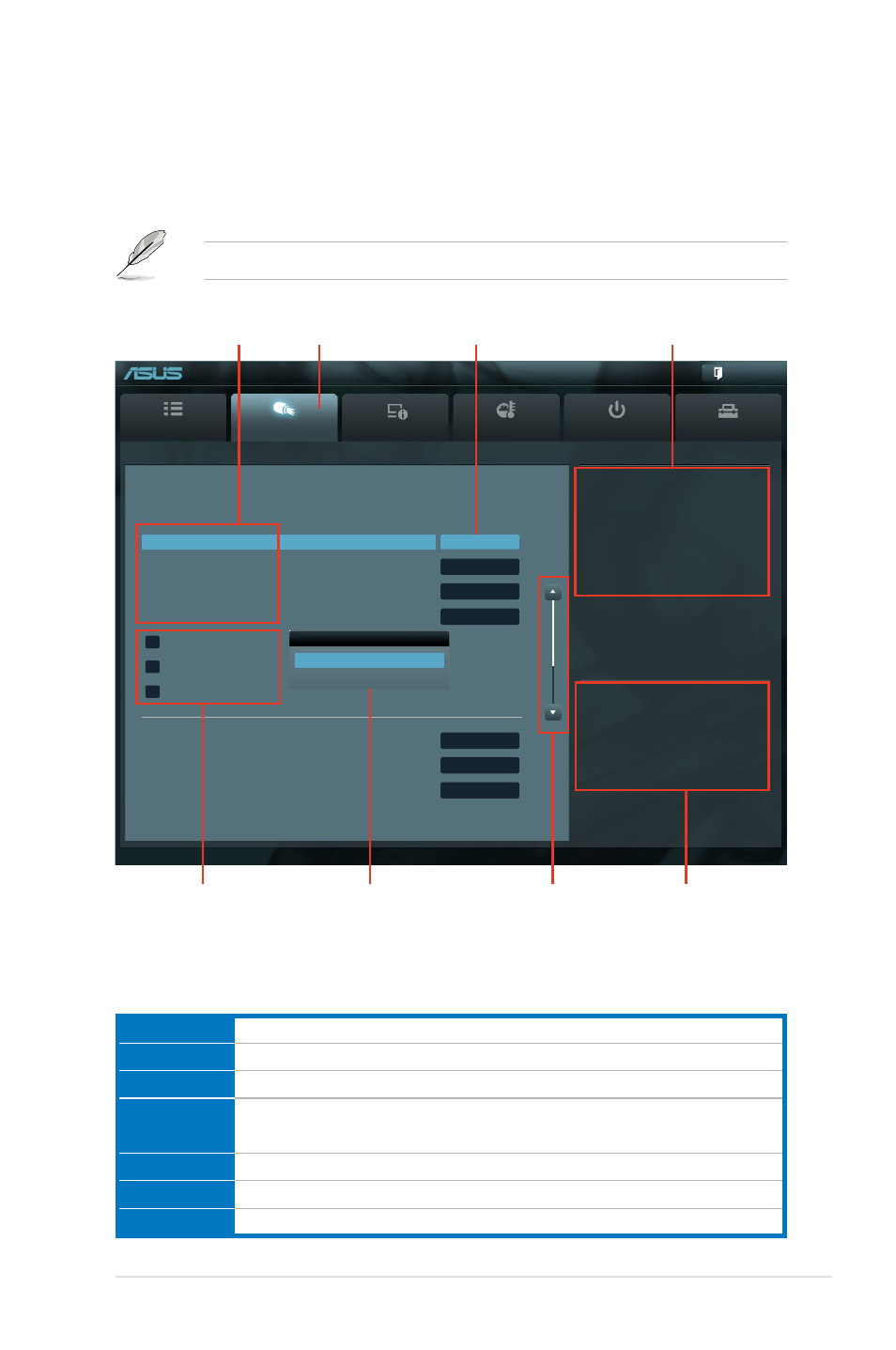

Mode. Refer to the following sections for the detailed configurations.
To access the EZ Mode, click Exit, then select ASUS EZ Mode.
Menu bar
The menu bar on top of the screen has the following main items:
Main For changing the basic system configuration
Ai Tweaker For changing the overclocking settings
Advanced For changing the advanced system settings
Monitor
For displaying the system temperature, power status, and changing the
fan settings.
Boot For changing the system boot configuration
Tool For configuring options for special functions
Exit For selecting the exit options and loading default settings
Navigation keys
General
help
Menu bar
Submenu item
Configuration
fields
Menu
items
Scroll bar Pop-up window
Ai Overclock Tuner
Auto
Manual
Target CPU Turbo-Mode Speed : 3100MHZ
Target DRAM Speed : 1066MHz
Ai Overclock Tuner Auto
Turbo Ratio Auto
Memory Frequency Auto
EPU Power Saving Mode Disabled
> OC Tuner
> DRAM Timing Control
> CPU Power Management
DIGI+ VRM
Load-Line Calibration Auto
VRM Frequency Auto
VRM Spread Spectrum Disabled
