Asus ESC4000 G2 User Manual
Page 46
Chapter 2: Hardware setup
2-24

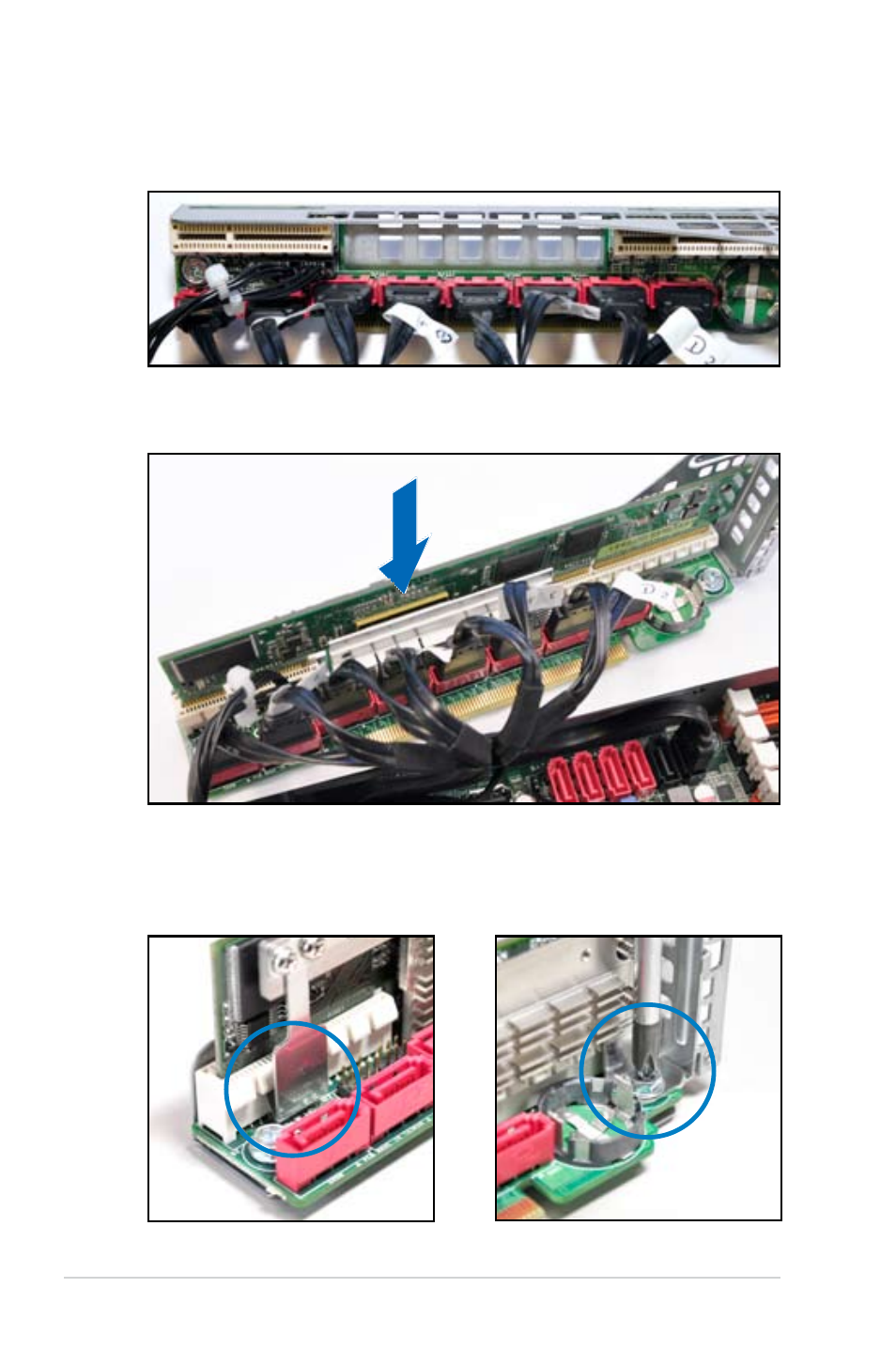

9. Connect the SATA/SAS cables to the SAS1–8 connectors on the PIKE riser
card.
11. If you are to install PIKE 1078, 2008, 2008/IMR and 2108 cards, ensure the
heatsink latch is completely hooked to the edge of the card slot, and then
secure the PIKE card through the screw hole of the riser card to the card
bracket.
10. Align and insert the golden fingers of the PIKE SAS RAID card into the card
slot on the PIKE raiser card. Ensure the card is completely seated on the slot.
