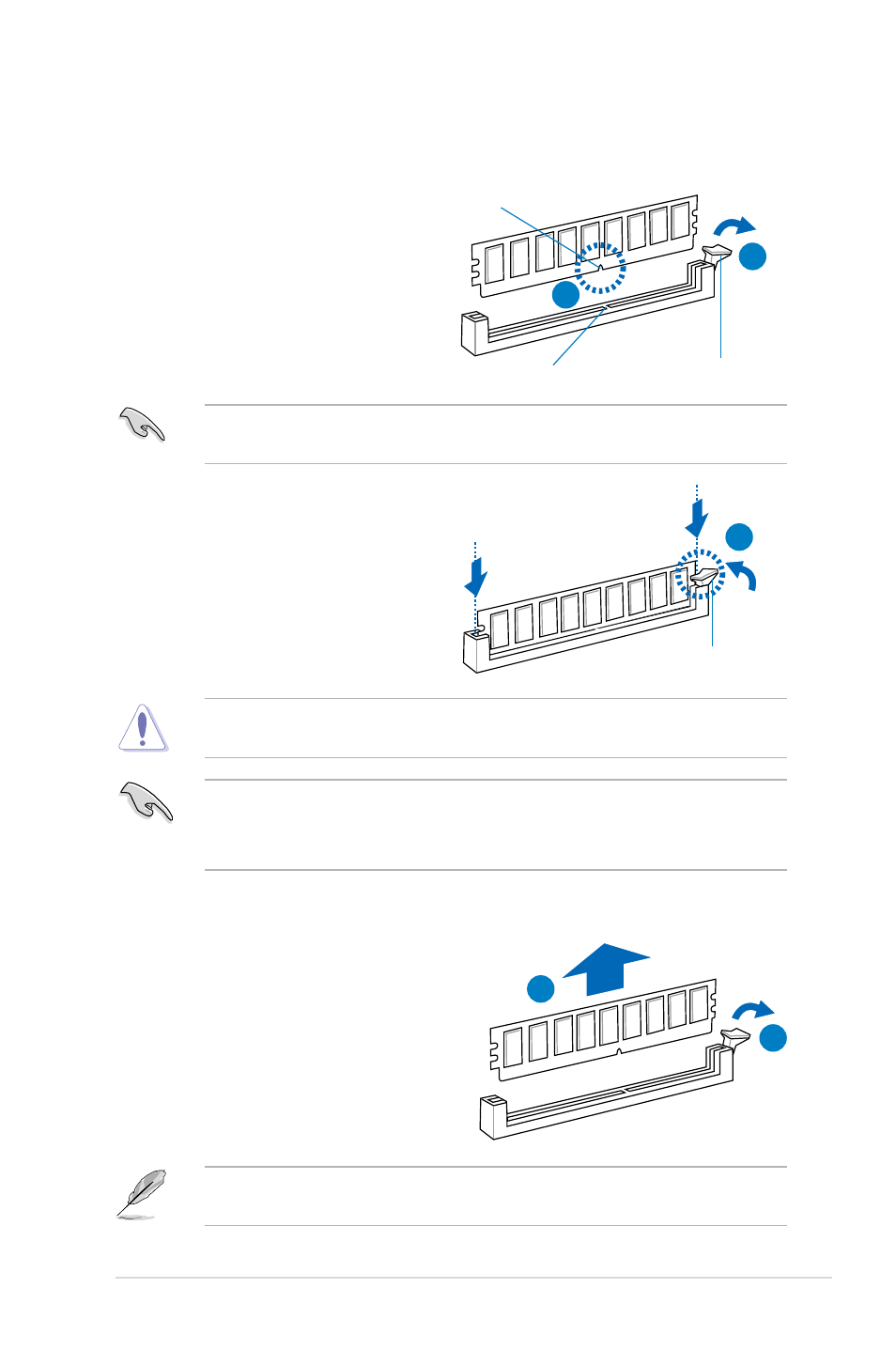

2.3.3 Installing a DIMM on a single clip DIMM socket
3. Hold the DIMM on both ends, then
insert the DIMM vertically into the
socket. Apply force to both ends of
the DIMM simultaneously until the
retaining clip snaps back into place,
and the DIMM cannot be pushed in
any further to ensure proper sitting
of the DIMM.
Locked Retaining Clip
3
1. Press the retaining clip outward to
unlock a DIMM socket.
2. Align a DIMM on the socket such that
the notch on the DIMM matches the
DIMM slot key on the socket.
Unlocked retaining clip
DIMM notch
2
1
DIMM slot key
1. Press the retaining clip outward to
unlock the DIMM.
2. Remove the DIMM from the socket.
1
2
Removing a DIMM from a single clip DIMM socket
• To install two or more DIMMs, refer to the user guide bundled in the
motherboard package.
• Refer to the user guide for qualified vendor lists of the memory modules.
Support the DIMM lightly with your fingers when pressing the retaining clips. The
DIMM might get damaged when it flips out with extra force.
Always insert the DIMM into the socket VERTICALLY to prevent damage to the
DIMM notch.
A DIMM is keyed with a notch so that it fits in only one direction. DO NOT force a
DIMM into a socket in the wrong direction to avoid damaging the DIMM.
