Chapter 2: Hardware setup 2-22
2.8.3 Installing ASUS PIKE SAS RAID Card (optional)
Follow the steps below to install the optional ASUS PIKE SAS RAID card to the
ASUS PIKE riser card.
4. If you are to install PIKE 1064E
RAID card, secure the riser card
to the bracket with two screws. If
you are to install PIKE 1078, 2008,
2008/IMR and 2108 cards, secure
only one screw, as shown in the
right figure.
3. Locate the two screw holes on the PIKE riser card.
2. Locate the two screws on the riser
card bracket, then remove the
screws from the bracket.

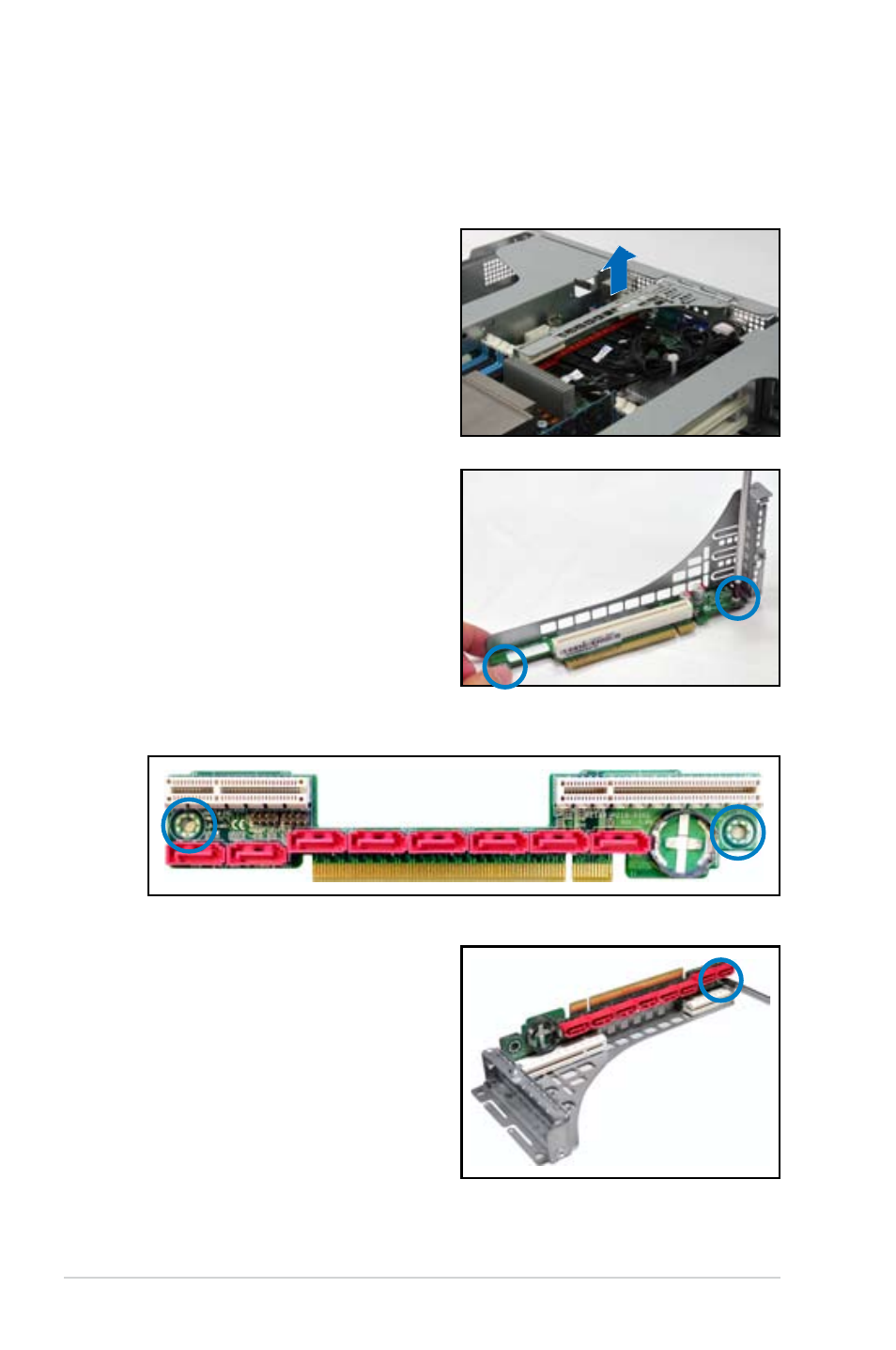

1. Firmly hold the riser card bracket,
and then pull it up to detach it from
the PCI Express x16 slot on the
motherboard.
