ASUS ESC4000 G2 Series 1-7
1.6 Internal features

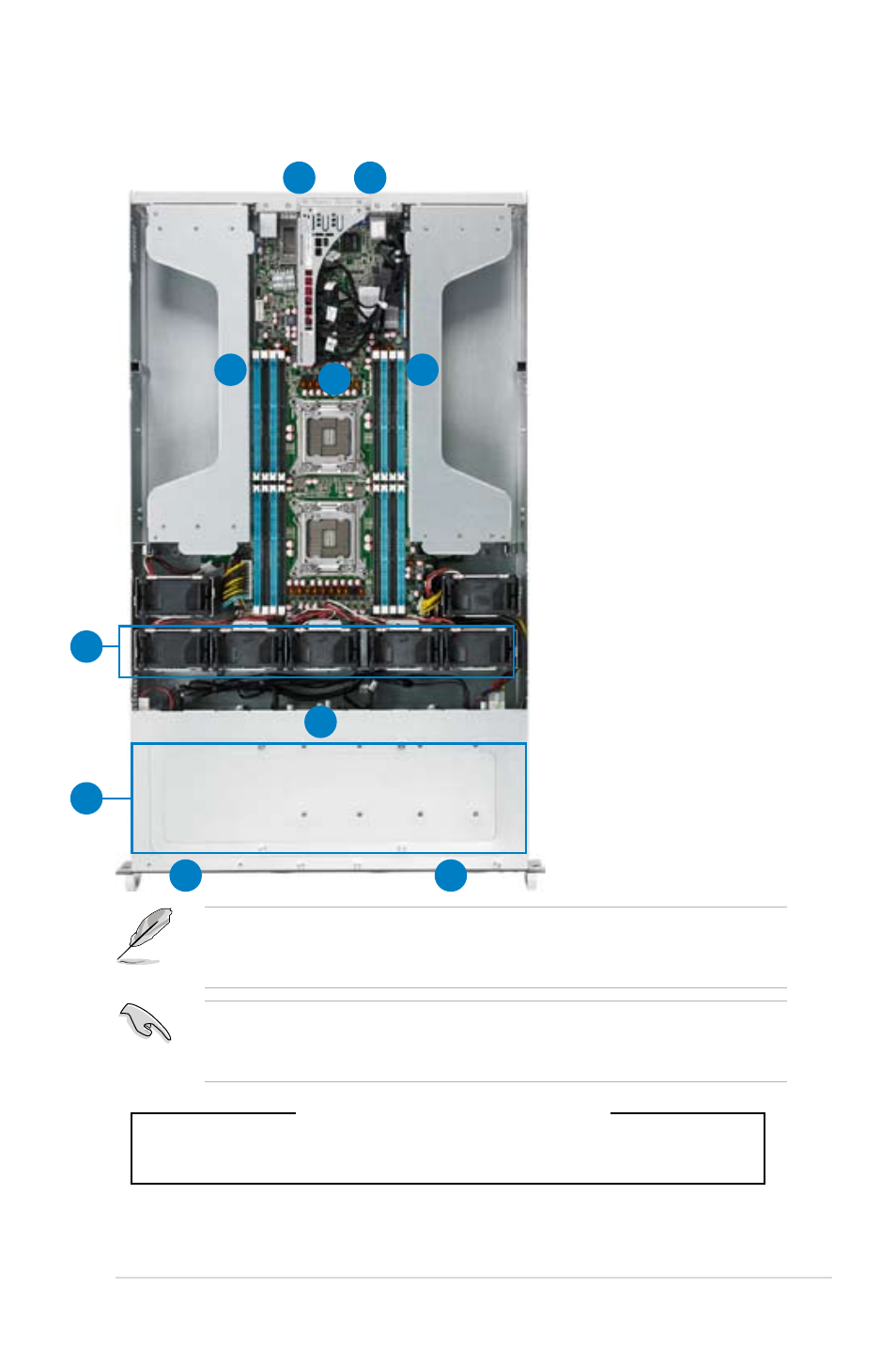

The barebone server includes the basic components as shown.
The barebone server does not include a floppy disk drive. Connect a USB floppy
disk drive to any of the USB ports on the front or rear panel if you need to use a
floppy disk.
*WARNING
HAZARDOUS MOVING PARTS
KEEP FINGERS AND OTHER BODY PARTS AWAY
1. Redundant Power
supply and power fan
(hidden)
2. ASUS Z9PG-D16
Server Board
3. System fans
4. SATA/SAS backplane
(hidden)
5. Hot-swap HDD tray 1–8
(SAS and SATA)
6. Slim-type optical drive
bay
7. Front I/O board (hidden)
8. PCI-E Expansion
Boards (hidden)
A protection film is pre-attached to the front cover before shipping. Please
remove the protection film before turning on the system for proper heat
dissipation.
