ASUS RS161-E5/PA2 4-15
11. Auxiliary panel connector (20-2 pin AUX_PANEL1)
This connector supports several server system functions.
1. Front Panel SMBus (6-1 pin)
This connector allows you to connect SMBus (System Management Bus)
devices to the system front panel. Devices communicate with an SMBus host
and/or other SMBus devices using the SMBus interface.
2. LAN1 link activity LED (2-pin LAN1_LINKACTLED)
This 2-pin connector is for the LAN1 Activity LED. Connect the LAN1 Activity
LED cable to this connector. This LED blinks during a network activity and is
always lit when linked.
3. LAN2 link activity LED (2-pin LAN2_LINKACTLED)
This 2-pin connector is for the LAN2 Activity LED. Connect the LAN2 Activity
LED cable to this connector. This LED blinks during a network activity and
lights up when linked.
4. Chassis Intrusion connector (3-pin CASEOPEN)
This lead is for a chassis with an intrusion detection feature. This requires
an external detection mechanism such as a chassis intrusion sensor or
microswitch. When you remove any chassis component, the sensor triggers
and sends a high-level signal to this lead to record a chassis intrusion event.
5. Locator LED 1 (2-pin LOCATORLED1)
This 2-pin connector is for the Locator LED 1. Connect the Locator LED
1 cable to this connector. This LED lights up when the Locator button is
pressed.
6. Locator Button/Switch (2-pin LOCATORBTN)
This connector is for the locator button. This button queries the state of the
system locator.
7. Locator LED 2 (2-pin LOCATORLED2)
This 2-pin connector is for the Locator LED 2. Connect the Locator LED 2
cable to this connector.
KFSN4-DRE
®

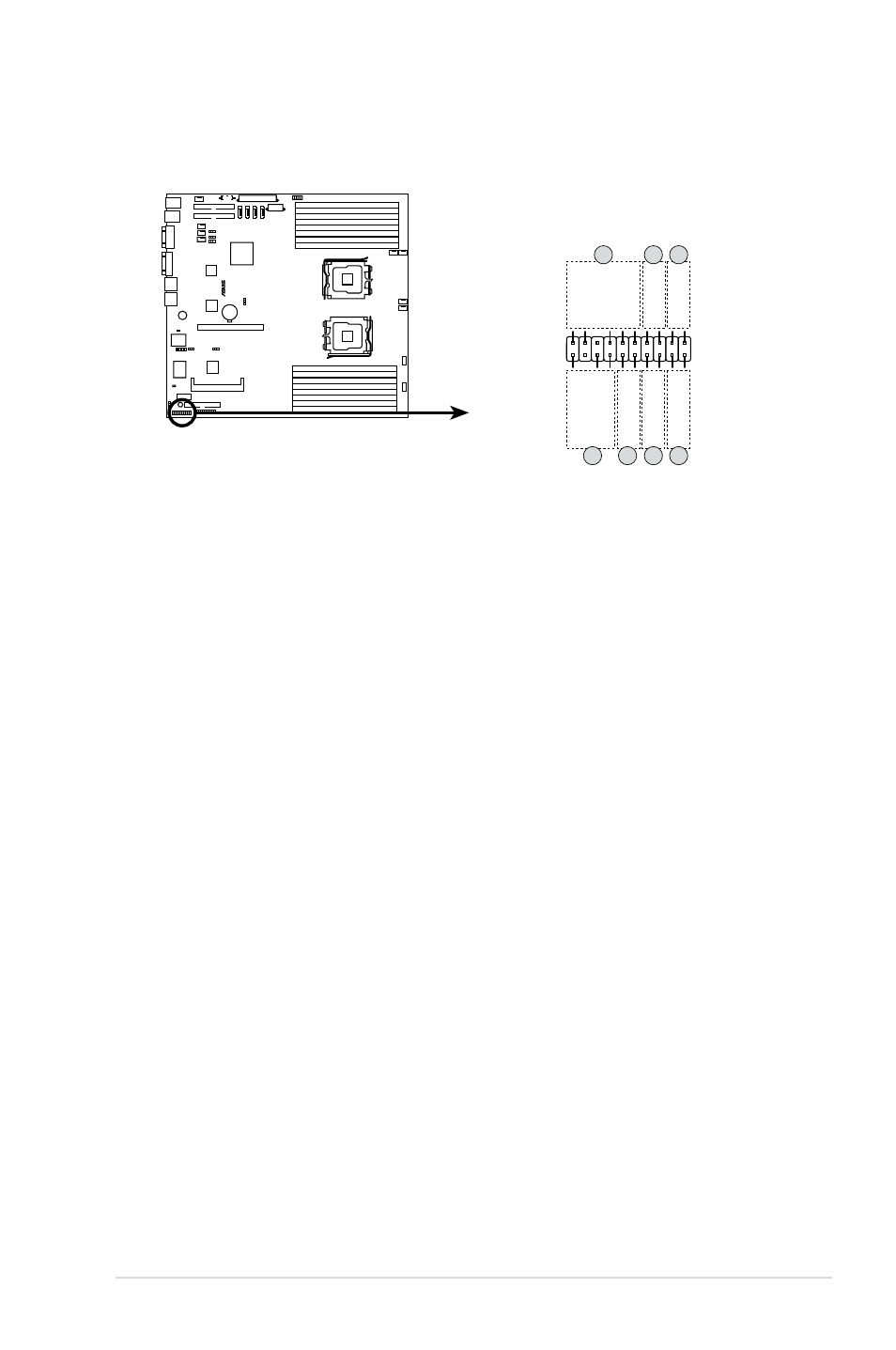

KFSN4-DRE Auxiliary panel connector
AUX_PANEL1
I2C_4_D
AT
A#
LOCA
TORLED1+
+5VSB
LOCA
TORLED1-
LAN1_LINK
LOCA
TORBTN#
LAN1_ACT
GND
+5VSB
I2C_4_CLK# GND
GND
LAN2_ACT
LOCA
TORLED2-
LAN2_LINK
LOCA
TORLED2+
CASEOPEN
PIN1
NC
1 2 2
5 4 3 4
