ASUS RS161-E5/PA2 4-9

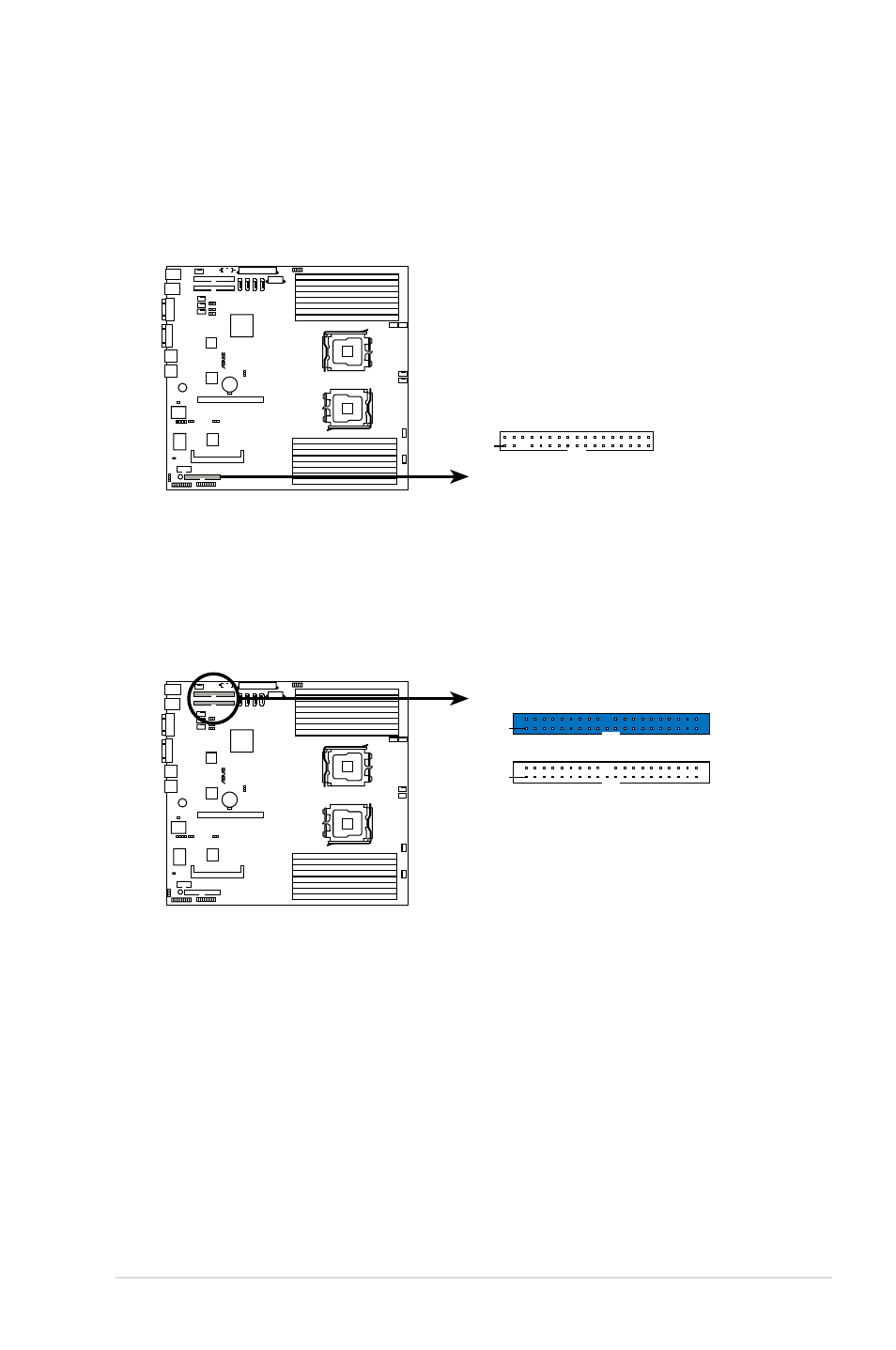

4.4 Internal connectors
1. Floppy disk drive connector (34-1 pin FLOPPY1)
This connector is for the provided floppy disk drive (FDD) signal cable. Insert
one end of the cable to this connector, then connect the other end to the
signal connector at the back of the floppy disk drive.
KFSN4-DRE
®
NOTE: Orient the red markings on
the floppy ribbon cable to PIN 1.
PIN 1
FLOPPY1
KFSN4-DRE Floppy disk drive connector
2. IDE connectors (40-1 pin PRI_IDE1, SEC_IDE1)
The onboard IDE connectors are for Ultra DMA 133/100/66 signal cables.
KFSN4-DRE
®
KFSN4-DRE IDE connector
NOTE: Orient the red markings
(usually zigzag) on the IDE
ribbon cable to PIN 1.
SEC_IDE1
PRI_IDE1
PIN 1
PIN 1
