Page 62
Chapter 4: Motherboard information
4-14

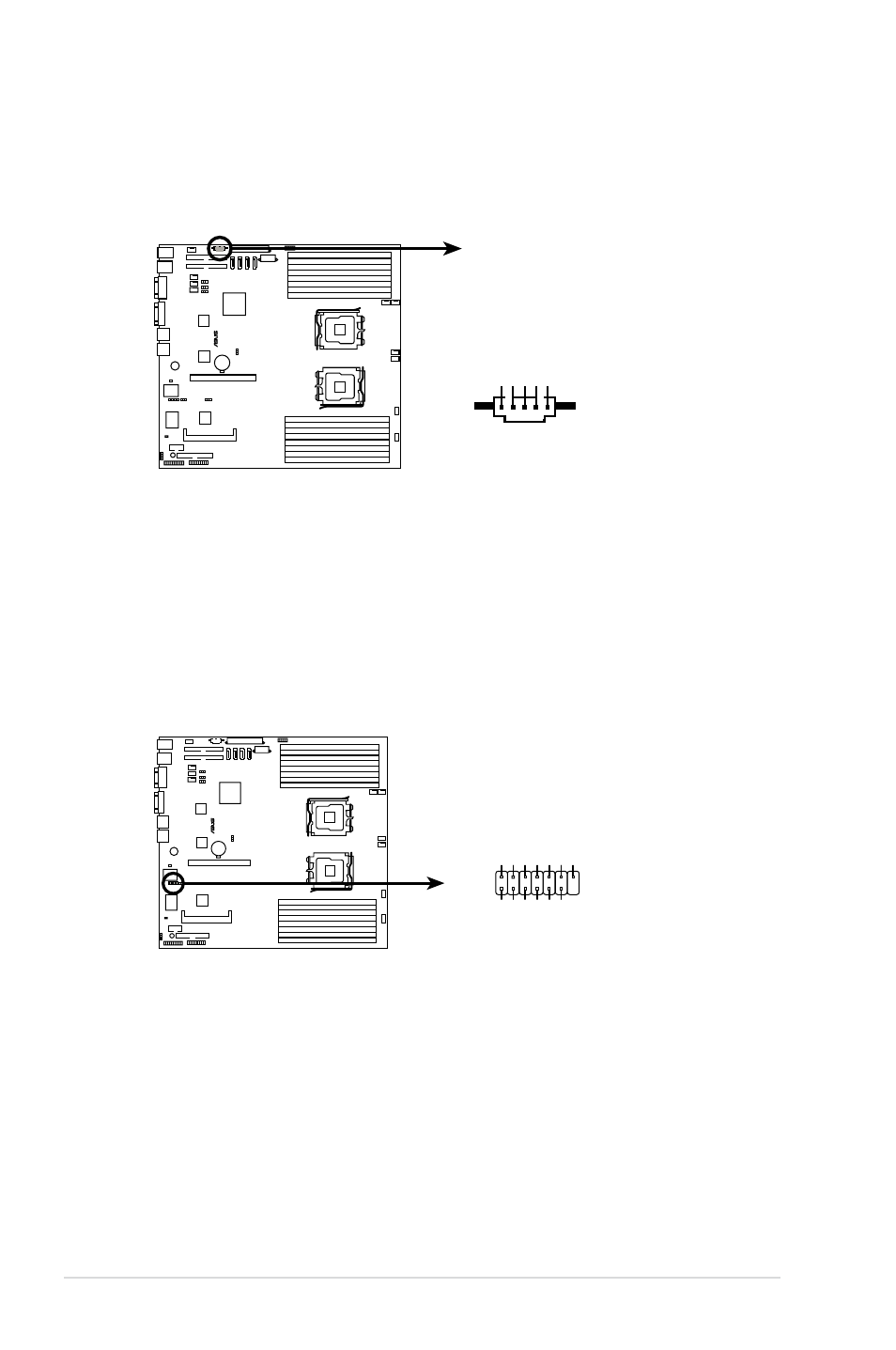

10. LPC debug card connector (14-1 pin LPC1)
This is a low pin count interface used to plug in the LPC debug card.
KFSN4-DRE
®
+3.3V
PIN1
+3.3V
+3.3V
GND
GND
LPC_LAD2
LPC_LAD3
LPC_LAD0
LPC_LAD1
PL
TRST
LFRAME_N
CLK
GND
KFSN4-DRE LPC debug card connector
J1
9. Power Supply SMBus connector (5-pin PSUSMB1)
This connector allows you to connect SMBus (System Management Bus) to
the power supply unit to read PSU information. Devices communicate with an
SMBus host and/or other SMBus devices using the SMBus interface.
KFSN4-DRE
®
KFSN4-DRE Power supply SMBus connector
PSUSMB1
+3.3V Remote Sense
GND
NC
I2C_7_D
AT
A#
I2C_7_CLK
#
