Chapter 2: Hardware setup 2-16
2.6 Cable connections

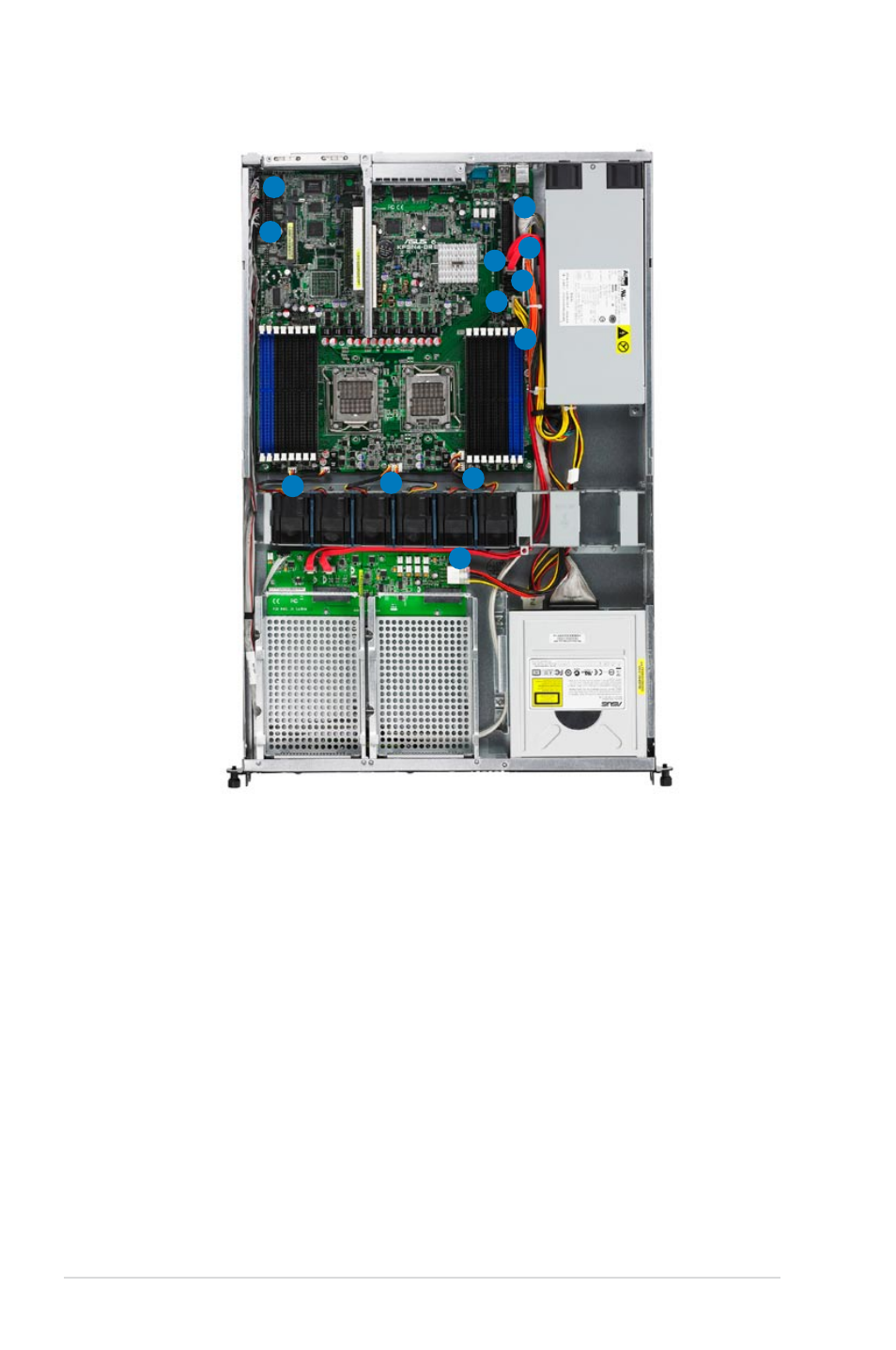

Pre-connected system cables
1. 24-pin SSI power connector (from power supply to motherboard)
2. 4-pin SSI power connector (power supply to motherboard)
3. SATA backplane power connector (from power supply)
4. Primary IDE connector (from motherboard to optical drive)
5. Device fan connector (from motherboard FRNT_FAN2&6 to device fans)
6. SATA connectors (from motherboard SATA 1-2 to SATA backplane board)
7. Panel connector (from motherboard to front I/O board)
8. Auxiliary panel connector (from motherboard to front I/O board)
9. USB connector (from motherboard to front I/O board)
10. PSUSMB1 connector (from power supply)
11. System fan connector (from motherboard FRNT_FAN 1/3/4/5 to system fans)
